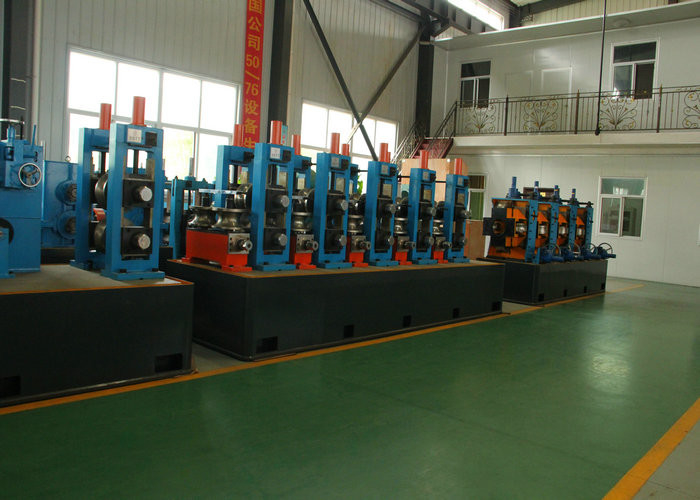

Carbon Steel Pipe Production Line 60-165mm Diameter 3-7mm Thickness

Name: Carbon Steel Pipe Production Line 60-165mm Diameter 3-7mm Thickness
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG165
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE/ISO9001/BV
Model Number:	HG165

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE/ISO9001/BV

Model Number:

HG165

Material:

Carbon Steel,stainless Steel,low Alloy Steel

Product Speed:

Max 60m/min

Pipe Diameter:

60-165mm

Pipe Thickness:

3-7mm

Type Of Welding:

High Frequency Welding

Special Require:

Can Design According To The Customer

Color:

Blue

Motor Power:

350kw

Highlight:

High Light

Highlight:

steel pipe mill

steel tube production line

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

packed in seaworthy material

Delivery Time:

three month

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

200 set per year

Product Description

Adjustable Pipe Size Steel Pipe Production Line

High-performance carbon steel production line with maximum running speed of 100m/min, capable of manufacturing round, square, rectangular, and specialized profile pipes (L, T, Z shapes) using high frequency welding technology.

Product Specifications

Attribute	Value
Material Compatibility	Carbon steel, stainless steel, low alloy steel
Production Speed	Max 60m/min
Pipe Diameter Range	60-165mm
Pipe Thickness	3-7mm
Welding Type	High frequency welding
Customization	Can be designed according to customer requirements
Motor Power	350kW

Production Process

material(steel coil) → uncoiler → shear and welder → horizontal(or cage) accumulator → forming mill → HF solid welder → sizing mill → roughly straightening(turkey head) → cut off machine → run out table

Technical Parameters

Stands of forming mill	7
Stands of sizing mill	5
Shaft material	40Cr
Round pipe diameter range	60-165mm
Round pipe thickness	3-7mm
Square pipe size range	60×60-150×150mm
Square pipe thickness	2.5-5.0mm

Available ERW Tube Mill Models

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
HG20	8-25.4MM	0.3-1.2MM	120
HG32	10-32MM	1.4-1.5MM	120
HG50	16-76MM	0.7-2.5MM	30-120
HG76	25-76MM	1-4MM	30-100
HG89	32-89MM	1-4.5MM	30-80
HG114	45-114MM	1.5-5.0MM	30-60
HG165	60-165MM	3-7MM	30-50
HG219	114-219MM	4-8MM	20-40
HG273	114-273MM	4-10MM	15-30
HG325	165-325MM	4-10MM	10-30
HG426	165-426MM	4-12.7MM	8-25
HG508	219-508MM	4-16MM	8-20

Note: Model specifications are for reference only. Product range and thickness are adjustable. Our engineering team can design machines according to specific customer requirements.
