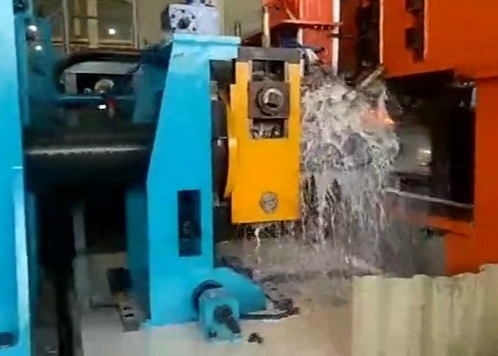

Carbon Steel Energy Supply CE Tube Rolling Mill 20-90m/Min Square Tube Mill
Key Specifications
| Mill Name |
Carbon Steel Energy Supply CE Tube Rolling Mill 20-90m/Min Square Tube Mill |
| Stands of Sizing Mill |
5 |
| Shaft Material |
40Cr |
| Round Pipe Diameter |
19-76mm |
| Round Pipe Thickness |
1.5-3.0mm |
| Square Pipe Size |
15×15-60×60mm |
| Square Pipe Thickness |
1.5-2.0mm |
| Material Compatibility |
Low alloy, carbon steel |
Production Process
Material (steel coil) → Uncoiler → Shear and Welder → Horizontal (or cage) Accumulator → Forming Mill → HF Solid Welder → Sizing Mill → Rough Straightening (Turkey Head) → Cut Off Machine → Run Out Table
Technical Parameters
| Parameter |
Value |
| Stands of Forming Mill |
7 |
| Stands of Sizing Mill |
5 |
| Shaft Material |
40Cr |
| Round Pipe Diameter |
19-76mm |
| Round Pipe Thickness |
1.5-3.0mm |
| Square Pipe Size |
15×15-60×60mm |
| Square Pipe Thickness |
1.5-2.0mm |
Machines can be customized according to specific customer requirements.
Available Models
| Model |
Diameter Range |
Pipe Thickness |
Line Speed (m/min) |
| HG20 |
8-25.4mm |
0.3-1.2mm |
120 |
| HG32 |
10-32mm |
1.4-1.5mm |
120 |
| HG50 |
16-76mm |
0.7-2.5mm |
30-120 |
| HG76 |
25-76mm |
1-4mm |
30-100 |
| HG89 |
32-89mm |
1-4.5mm |
30-80 |
| HG114 |
45-114mm |
1.5-5.0mm |
30-60 |
| HG165 |
60-165mm |
3-7mm |
30-50 |
| HG219 |
114-219mm |
4-8mm |
20-40 |
| HG273 |
114-273mm |
4-10mm |
15-30 |
| HG325 |
165-325mm |
4-10mm |
10-30 |
| HG426 |
165-426mm |
4-12.7mm |
8-25 |
| HG508 |
219-508mm |
4-16mm |
8-20 |
Product Overview
The Carbon Steel Energy Supply CE Tube Rolling Mill is designed to manufacture welded steel pipes with diameter ranges from Φ7mm-Φ219mm and wall thickness ranges from 0.2mm-8.0mm. The system can also produce profiled pipes including square pipes, rectangular pipes, and oval pipes within the processing limits of round pipes.
Our production line incorporates advanced pipe making technology from both domestic and international sources, resulting in an innovative design that is both economical and practical for industrial applications.
Compatible Materials
Low carbon steel, low alloy steel, galvanized steel, stainless steel, and other compatible materials.
Manufacturer Information
Tengtian Tube Mill Co., Ltd. is a professional manufacturer specializing in high-frequency welded pipe equipment and cold bend steel equipment. Combining scientific research, production, sales, and service, our company produces high-quality equipment for manufacturing high-frequency welded pipes, slitting, and cold bend steel applications.
Our products are manufactured according to strict Japanese standards, incorporating advanced technology for superior configuration, stable quality, and excellent performance. With strong technical capabilities and business expertise, we serve both domestic and international markets including Korea, Vietnam, Indonesia, South Africa, and Kazakhstan.
We are committed to providing high-quality products and services, with a customer-focused approach that emphasizes zero-distance, full-range support throughout the pre-sale, sale, and post-sale process. Our mission is to exceed customer expectations through quality manufacturing and professional service.
