Home > products >
Steel Slitting Machine
>
CNC PLC Galvanized Steel Coil Slitting Machine 800-2000mm
  • CNC PLC Galvanized Steel Coil Slitting Machine 800-2000mm
  • CNC PLC Galvanized Steel Coil Slitting Machine 800-2000mm
  • CNC PLC Galvanized Steel Coil Slitting Machine 800-2000mm

CNC PLC Galvanized Steel Coil Slitting Machine 800-2000mm

Product Details:
Place of Origin: Hebei，China
Brand Name: Tengtian
Certification: CE, ISO9001, BV
Model Number: 800~2000mm
Detail Information
Place of Origin:
Hebei，China
Brand Name:
Tengtian
Certification:
CE, ISO9001, BV
Model Number:
800~2000mm
Name:
Cnc With PLC Control Galvanized Steel Coil Slitting Line Machine
Warranty:
1 Year
Voltage:
380V/220V
Weight:
Max 30 Ton
DC Motors:
280KW, 315KW.
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Coil Width:
800~2000mm
Thickness Range:
1-6mm
Highlight:

High Light

Highlight:

pipe slitting line machine

,

Cnc Slitting Line Machine

,

Galvanized steel slitter machine

Trading Information
Minimum Order Quantity:
1 Set
Price:
$100000 to $1 million
Packaging Details:
Export waterproof and Seaworthy packing.
Delivery Time:
120 work days
Payment Terms:
L/C,T/T,Western Union
Supply Ability:
40 Sets/Year
Product Description
CNC with PLC Control Galvanized Steel Coil Slitting Line Machine
Key Specifications
Attribute Value
Warranty 1 Year
Voltage 380V/220V
Weight Capacity Max 30 Ton
DC Motors 280KW, 315KW
After-sales Service Engineers available to service machinery overseas
Coil Width Range 800~2000mm
Thickness Range 1-6mm
Product Overview

This CNC-controlled slitting line machine features PLC automation for precise cutting of galvanized steel coils into specified width strips. The system includes uncoiler, feeder, slitter, and recoiler components for complete processing.

Key Features
  • Advanced CNC with PLC control system
  • Handles carbon steel and stainless steel materials
  • Customizable to customer specifications
  • High production capacity of 120m/min
  • CE and ISO certified
  • Overseas engineering support available
Technical Parameters
Parameter Specification
Material Compatibility HR/CR carbon steel, galvanized plate, colored steel plate
Strip Thickness Range 5-20mm
Max Coil Weight 40,000kg
Leveling Roller Diameter Φ260mm
Slitter Shaft Diameter Φ420mm
Disc Cutters 6CrW2Si, HRC54°~56°, OD650mm x ID420mm x T50mm
Recoiler Block Diameter Φ800mm
Slitting Speed 0-20 m/min (adjustable)
Production Process
  1. Loading coil car
  2. Uncoiler
  3. Straightener device
  4. Pinch roll & leveler & hydraulic shearer
  5. Loop pit
  6. Side guide
  7. Slitter
  8. Transition platform & scrap winder
  9. Loop pit
  10. Tension station
  11. Recoiler
  12. Unloading coil car
Available Models
Model Plate Thickness Plate Width Coil Weight Finished Width Shear Speed
3×1250mm 0.5-3.0mm 700-1250mm 25 Ton <40mm 120 m/min
4×1250mm 0.5-4.0mm 700-1250mm 25 Ton <40mm 120 m/min
6×1250mm 0.5-6.0mm 700-1250mm 25 Ton <40mm 120 m/min
3×1600mm 0.5-3.0mm 900-1600mm 30 Ton ≥40mm 120 m/min
4×1600mm 0.5-4.0mm 900-1600mm 30 Ton ≥60mm 110 m/min
6×1600mm 1-6mm 900-1600mm 30 Ton ≥60mm 100 m/min

Note: All specifications are adjustable to meet customer requirements. Our engineering team can design custom solutions for special applications.

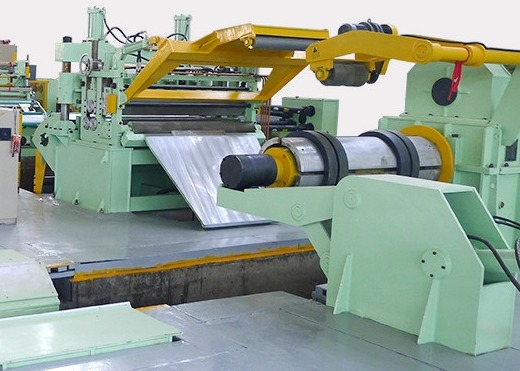

CNC PLC Galvanized Steel Coil Slitting Machine 800-2000mm 0

For professional consultation or custom solutions, please contact our team.
