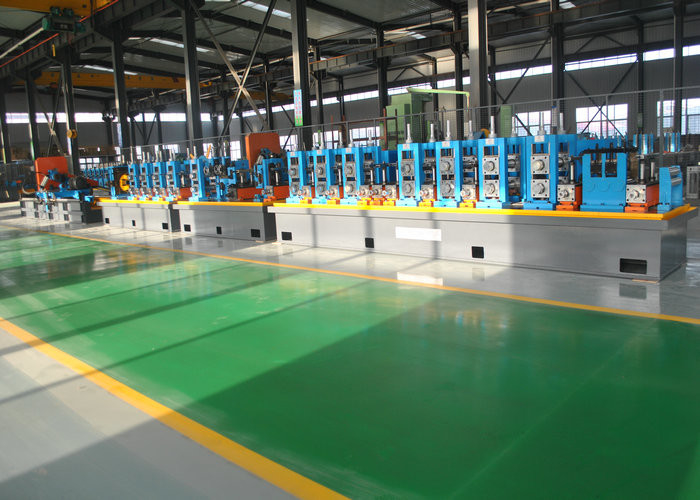

Computer-Controlled High Frequency ERW Pipe Tube Mill

This equipment is specially designed for producing Φ20-Φ80mm, δ1-4.0mm high-frequency straight seam welded pipe and corresponding square pipe (17*17-62*62mm, 1.2-3.0mm). The complete system includes components from uncoiler to fixed length cutting saw, with rolling speed adjustable according to pipe diameter and wall thickness.

• Raw material: Low-carbon steel
• Thickness of steel strip: 1.0-3.5mm
• Width of steel strip: 60-240mm
• I.D. of steel coil: Φ450-Φ550mm
• O.D. of steel coil: Φ800-Φ1200mm
• Maximum weight coil: 2500kgs

• O.D of pipe: Φ20-Φ80mm
• Wall thickness: 1.0-3.5mm (square pipe: 1.2-3.0mm)
• Length: 4-8m
• Milling speed: 60-70m/min
• High-frequency equipment power: 250 KW (Solid state)
• Voltage: 380V/440V, 50HZ

• Uncoiler: 1 set
• Shearing and butt-welder: 1 set
• Accumulator: 1 set
• Forming, Welding & sizing unit: 1 set
• Computer-controlled tracking cutting saw: 1 set
• Run-out table: 1 set
• Solid-state high-frequency welder: 1 set

The ERW pipe mill with high frequency solid welder can produce round pipe, square pipe and rectangular pipe at high speed, and can also produce L, T, Z shape pipes, reducing roller costs while ensuring finished pipe quality.

Material (steel coil) → uncoiler → shear and welder → horizontal (or cage) accumulator → forming mill → HF solid welder → sizing mill → roughly straightening (turkey head) → cut off machine → run out table

This high-frequency welded tube mill line is engineered to produce round tubes with diameters of 25.4-114 mm and wall thicknesses of 0.8-4.0 mm. Utilizing roll forming technology, it processes steel strip into various shapes. The system employs high frequency induction heating to create section material of diverse diameters and sizes by precisely welding seams together. Advanced aperture technology, PLC automatic control system, and British Eurasia Digital speed-regulating unit ensure reliable operation and easy maintenance.

• Installation & Training: We provide engineers for installation and worker training on proper machine operation.
• Warranty: One year quality guarantee with lifetime repair support. Free repair parts during warranty period (excluding human error). After warranty, only parts cost is charged.
• Comprehensive Support: Pre-sale services include workshop and production output design. After-sale services cover installation, training, and skilled engineering support.
• Extended Engineering Support: Option for engineers to work onsite for several months to a year to improve output, reduce waste, and decrease costs.
• Project Design: Complete project design services for stainless steel and carbon steel pipe production.
• Logistics: We handle all loading and shipping arrangements.
