Erw Carbon Steel Pipe Roll Forming Welded Pipe Mill High Frequency

Name: Erw Carbon Steel Pipe Roll Forming Welded Pipe Mill High Frequency
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG32
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei,china
Brand Name:	Tengtian
Certification:	CE,ISO9001,BV
Model Number:	HG32

Detail Information

Place of Origin:

Hebei,china

Brand Name:

Tengtian

Certification:

CE,ISO9001,BV

Model Number:

HG32

Production Name:

High Frequency Welded Pipe Mill Erw Carbon Steel Pipe Roll Forming Welded Pipe Mill High Frequency

Material:

HRC,CRC

Pipe Diamete:

12-32 Mm

Pipe Thickness:

0.4-1.5mm

Welding Type:

H.F Solid Welder

Pipe Shape:

Round,square,rectangular

Roller Materoal:

Cr12/SKD11

Key Words:

High Frequency Welded Pipe Mill

Highlight:

High Light

Highlight:

Erw High Frequency Tube Mill

Erw Welded Pipe Mill

Erw High Frequency Welded Pipe Mill

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

120 work days/Year

Payment Terms:

L/C, T/T, Western Union

Supply Ability:

30 Sets

Product Description

Erw Carbon Steel Pipe Roll Forming High Frequency Welded Pipe Mill

Product Description:

Erw Carbon Steel Pipe Roll Forming High Frequency Welded Pipe Mill is used to manufacture round/square welded steel pipe.After we absorbed advanced pipe making technology from both abroad and domestic, can product different size,shape tube and ensure the tube precision.

Round pipe size: 12--32mm Pipe thickness: 0.4-1.5mm

square tube size:10x10-20x20mm, tube thickness:0.4-1.5mm

Main Parameters and Specifications:

Material Specifications

Conforming to the YB189-64 standard
steel material: Q235/Q345
Mechanical properties:σb≤380Mpa,σs≤275MPa
strip width:37-100MM
strip thickness:0.4-1.5MM
I.D of Coils:Φ508mm
O.D of Coils:φ1800mm
Coil Weight:2.5TON

Welded Pipe Specification

Round Pipe Diameter:Φ12～φ32mm
square tube size:10X10-20X20MM
pipe thickness:4.0-8.0MM
Finish pipe length:6-12M
Forming speed:40-120M/MIN

workshop require

6m wide, 60m long, at least 5m high from Ceiling Rails to Ground.

ERW Tube Mill Other Model

Model	Diameter Range	Pipe Thickness	Line Speed(m/min)
HG20	8-25.4MM	0.3-1.2MM	120
HG32	10-32MM	1.4-1.5MM	120
HG50	16-76MM	0.7-2.5MM	30-120
HG76	25-76MM	1-4MM	30-100
HG89	32-89MM	1-4.5MM	30-80
HG114	45-114MM	1.5-5.0MM	30-60
HG165	60-165MM	3-7MM	30-50
HG219	114-219MM	4-8MM	20-40
HG273	114-273MM	4-10MM	15-30
HG325	165-325MM	4-10MM	10-30
HG426	165-426MM	4-12.7MM	8-25
HG508	219-508MM	4-16MM	8-20

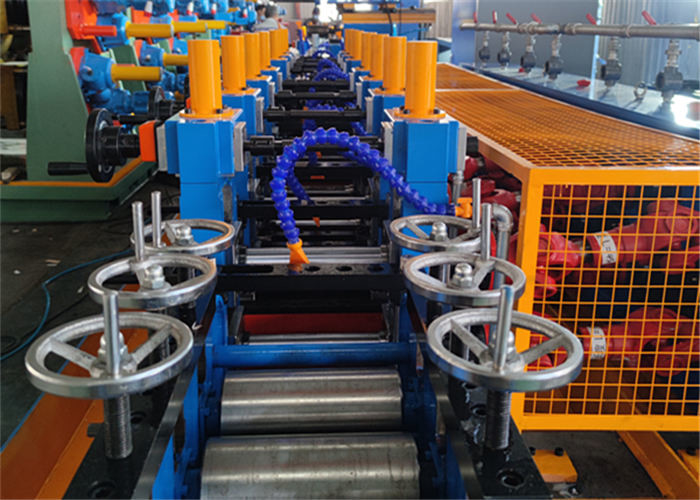

Erw Carbon Steel Pipe Roll Forming Welded Pipe Mill High Frequency 0

Erw Carbon Steel Pipe Roll Forming Welded Pipe Mill High Frequency 1

Erw Carbon Steel Pipe Roll Forming Welded Pipe Mill High Frequency 2
