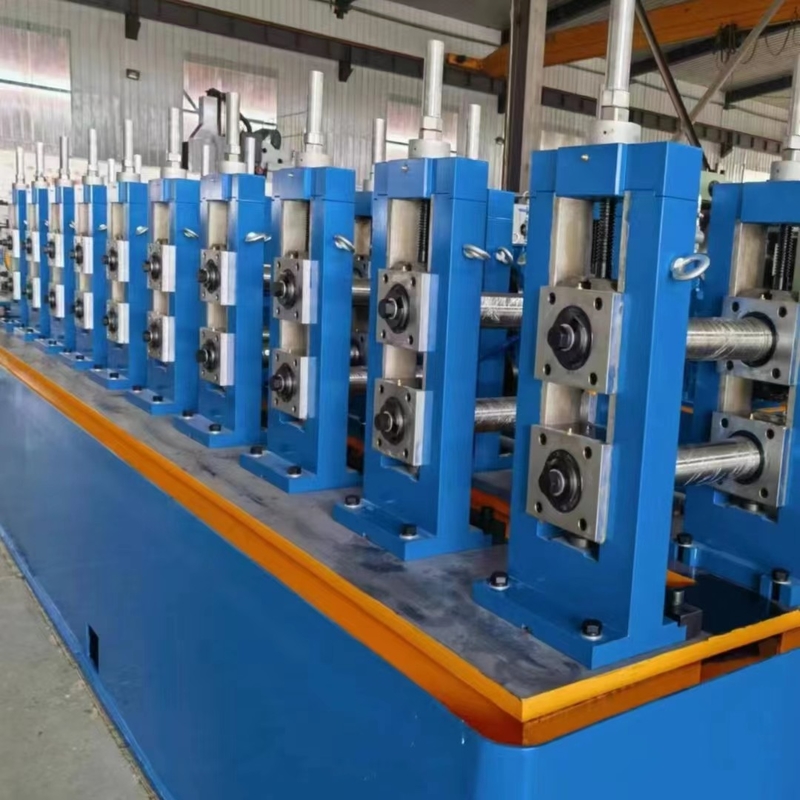

ERW Pipe Mill for Welded Pipes with FFX Forming Technology

Name: ERW Pipe Mill for Welded Pipes with FFX Forming Technology
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG 114
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Shijiazhuang China
Brand Name:	Tengtian
Certification:	CE,ISO9001, BV
Model Number:	HG 114

Detail Information

Place of Origin:

Shijiazhuang China

Brand Name:

Tengtian

Certification:

CE,ISO9001, BV

Model Number:

HG 114

Product Name:

ERW Pipe Mill For Welded Pipes With Precision Machining And Advanced Roll Pass Design

Forming Method:

FFX Forming Technology

Warranty:

1 Year

Warranty:

1 Year

Material Type:

Steel

Pipe Shape:

Round,square

Voltage:

380V

Condition:

New

Welding Speed:

0-100m/min

Hydraulic Station:

Yes

Keyword:

ERW Pipe Mill For Welded Pipes

Highlight:

High Light

Highlight:

Precision Machining ERW Pipe Mill

Welded Pipes ERW Pipe Mill

ERW steel pipe manufacturing machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Standard Export Packing

Delivery Time:

60 days

Payment Terms:

L/C,T/T

Supply Ability:

50 Sets/Yearly

Product Description

ERW Pipe Mill for Welded Pipes with Precision Machining and Advanced Roll Pass Design

Attribute	Value
Product Name	ERW Pipe Mill for Welded Pipes with Precision Machining and Advanced Roll Pass Design
Forming Method	FFX Forming Technology
Warranty	1 year
Material Type	Steel
Pipe Shape	Round, Square
Voltage	380V
Condition	New
Welding Speed	0-100m/min
Hydraulic Station	Yes

HG114 High-frequency Welded Pipe Mill Line

This high-frequency welded pipe mill line is designed to produce welded pipes of 50～101.6mm in diameter and 1.0～4.0mm in wall thickness, as well as square and rectangular pipes and deformed pipes of corresponding sizes. Featuring advanced roll pass design, the production line manufactures welded steel pipes with excellent quality machining and high precision assembly.

Main Technical Specifications

Parameter	Value
Power Volume of the Line	Approx. 800KW
Power Source	380V/50Hz/3phases
Circulation Cooling Water Flow	30T/h～40 T/h
Pool Volume	60m³
Compressed Air Flow	5m³/min
Compressed Air Pressure	5～7kg/cm²

Available Models and Specifications

Model	Diameter Range	Pipe Thickness	Molding Speed (m/min)	Motor Power (KW)	Mechanical Area (m³)
HG20	8-20MM	0.3-1MM	30-120	55	7×50
HG32	12-32MM	0.3-2.0MM	30-120	75	7×50
HG50	16-50MM	0.8-2.5MM	30-110	110	7×60
HG60	20-60MM	0.8-3MM	30-100	132	7×65
HG76	12-76MM	1-3MM	30-100	320	8×80
HG89	32-89MM	1-4MM	30-80	350	8×80
HG114	45-114MM	1.5-5.0MM	30-60	400	10×100
HG165	60-165MM	3-7MM	30-50	600	10×110
HG219	114-219MM	4-8MM	20-40	800	12×150
HG273	114-273MM	4-10MM	15-30	1000	18×160
HG325	165-325MM	4-12MM	10-30	1200	18×180
HG426	165-426MM	4-16MM	8-25	1400	18×180
HG508	219-508MM	4-20MM	8-20	2000	21×180

About Our Company

We are a professional manufacturer specializing in pipe mills, slitting lines, cold roll forming, stainless steel pipe mills, and related equipment. Our machines are manufactured in strict accordance with Japanese standards, incorporating advanced technology with innovative improvements.

Our Qualifications

Our Services

On-site installation and operator training by our engineers
One year quality guarantee with lifetime repair service
Comprehensive pre-sale and after-sale services including workshop design and production output planning
Option for extended engineer support (several months to 1 year) to optimize output and reduce waste
Complete project design services for stainless steel and carbon steel pipe production
Full responsibility for loading and shipping arrangements

Global Reach

Our equipment has been exported to dozens of countries including South Korea, Vietnam, Indonesia, South Africa, Kazakhstan, Egypt, and Greece, earning excellent market visibility and reputation worldwide.

Exhibition Highlights

Packing and Shipping

We ensure secure packaging and professional handling for international shipments. Our logistics team manages all export documentation and transportation arrangements.
