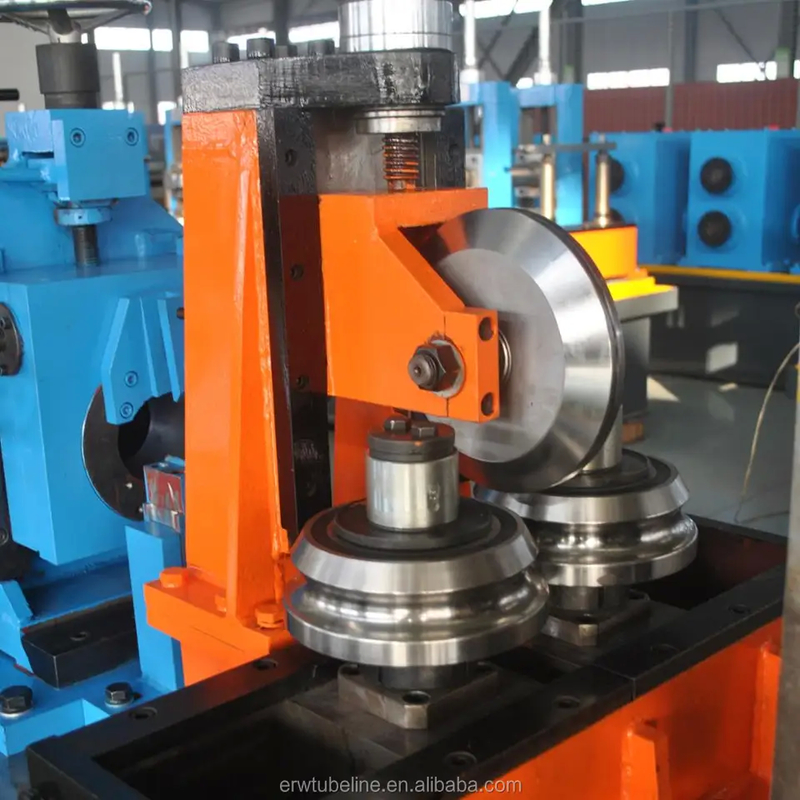

ERW Steel Pipe Making Machine 15-60mm OD with PLC Control

Name: ERW Steel Pipe Making Machine 15-60mm OD with PLC Control
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: TT60
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	CHINA
Brand Name:	TENG TIAN
Certification:	CE / ISO 9001
Model Number:	TT60

Detail Information

Place of Origin:

CHINA

Brand Name:

TENG TIAN

Certification:

CE / ISO 9001

Model Number:

TT60

Pipe Material:

201; 304; 401

Welding Type:

ERW Welding

Welding Speed:

Max 80m/min

Control System:

PLC Control

Motor:

Siemens

Colour:

Blue

OD Diameter:

15-60mm

Thickness:

0.7-2.5mm

Highlight:

High Light

Highlight:

reliable steel pipe making machine

galvanized steel pipe making machine

reliable galvanized pipe making machine

Trading Information

Minimum Order Quantity:

1 SET

Price:

$100000 to $1 million

Packaging Details:

Special export packing, and fixed in container

Delivery Time:

60 DAYS

Payment Terms:

T/T,L/C

Supply Ability:

100 SETS / YEAR

Product Description

Reliable Tube Straight Seam Welded Steel Pipe Making Machine with Airtight Protection Polishing

Product Specifications

Attribute	Value
Pipe material	201; 304; 401
Welding Type	ERW Welding
Welding Speed	Max 80m/min
Control system	PLC control
Motor	Siemens
Colour	Blue
OD Diameter	15-60mm
Thickness	0.7-2.5mm

Product Overview

The Airtight Protection Weld Polishing Steel Pipe Making Machine is designed for producing alloy steel and carbon steel pipes used in decoration, household appliances, and various products. After drawing through the unit mold, it can produce round tubes, square tubes, rectangular tubes, as well as oval tubes, semi-circular tubes, and shaped tubes for applications such as steel staircase handrails, steel doors and windows, and furniture.

Key Features

Utilizes CNC equipment for high-precision part processing and superior product quality
Durable construction with minimal maintenance requirements
Incorporates premium components including Siemens motors and Pearl River reducers for reliable performance
Fully automated operation with simple controls for continuous, efficient production
15% faster tube speed compared to industry standards, resulting in higher yield
Low production costs with minimal material waste, achieving over 98% tubing yield
Dedicated technical support team available to assist with any production challenges

Technical Parameters

No.	Model	Pipe Size	Thickness	Speed (m/min)	Capacity (KW)	HF (KW)	Area (LxW in Metres)
1	HG20	ø8 - ø20 mm	0.3 - 1.5 mm	30 - 150	210	100	40*12
2	HG32	ø10 - ø32 mm	0.4 - 2.0 mm	30 - 150	300	150	40*12
3	HG50	ø16 - ø50 mm	0.7 -2.5 mm	30 - 150	410	200	60*12
4	HG60	ø22 - ø60 mm	0.9 - 3.0 mm	30 - 150	410	200	60*12
5	HG76	Ø25 - ø76 mm	1 - 4 mm	30 - 120	580	300	80*16
6	HG89	Ø32 - ø89 mm	1 - 4.5 mm	30 - 100	660	300	100*16
7	HG114	Ø45 - ø114 mm	1.5 -5 mm	30 - 80	920	400	100*16
8	HG140	Ø50 - ø140 mm	1.5 - 5.5 mm	30 - 80	920	400	100*16
9	HG165	Ø60 - ø165 mm	2 - 6 mm	30 - 60	1100	500	100*16
10	HG219	Ø114 - ø219mm	3 - 8 mm	20 - 45	1400	600	150*16
11	HG273	Ø114 - ø273mm	4 - 12 mm	15 - 30	2100	800	160*18
12	HG325	Ø165 - ø325 mm	4 - 14 mm	10 - 30	2500	1000	200*24
13	HG426	Ø165 - ø426 mm	4 - 16 mm	8 - 25	2900	1200	250*24
14	HG508	Ø219 - ø508 mm	5 - 18 mm	5 - 18	3400	1600	300*24
15	HG610	Ø355 - ø610 mm	5 - 18 mm	5 - 18	3700	1600	300*24
16	HG760	Ø426 - ø760 mm	5 - 20 mm	5 - 20	4300	1800	300*24
