ERW Tube Mill Machine for Carbon Steel 21-63mm Diameter 50m/min

Name: ERW Tube Mill Machine for Carbon Steel 21-63mm Diameter 50m/min
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG76
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	HG76

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

HG76

Material:

Carbon Steel,stainless Steel,low Alloy Steel

Pipe Diameter:

21 - 63mm

Product Speed:

Max 50m/min

Max.Thickness For Square Pipe:

0.8-3.0mm

Certification:

CE ISO

Worm Gearing:

Max.80m/min

Name:

Tube Mill Machine

Highlight:

High Light

Highlight:

carbon steel tube mill

tube making machine

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

3.5 months

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

70 set per year

Product Description

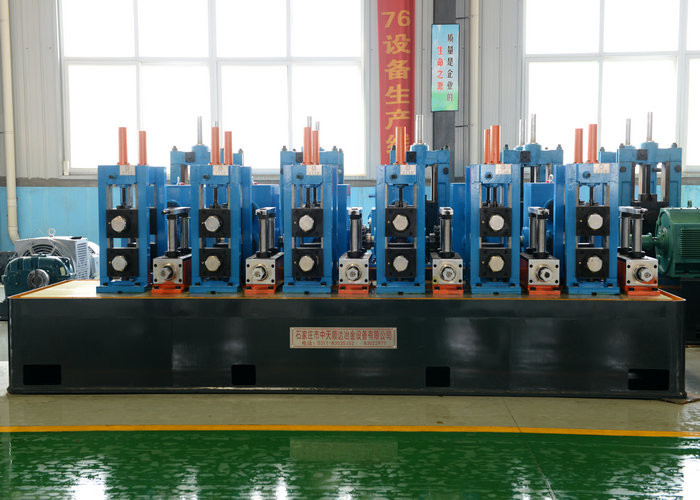

ERW High Frequency Pipe Rolling Mill, Tube Mill Machine With Max 50m/Min Speed

Product Specifications

Material Compatibility	Carbon steel, stainless steel, low alloy steel
Pipe Diameter Range	21 - 63mm
Maximum Production Speed	50m/min
Max. Thickness for Square Pipe	0.8-3.0mm
Certifications	CE, ISO
Worm Gearing Speed	Max. 80m/min

Included Machines in Tube Mill System

No.	Machine Name	Quantity (set)
1	Coil loading car	1
2	Double workstation uncoiler	1
3	Leveling unit	1
4	Hydraulic Shear & butt weld	1
5	Horizontal accumulator	1
6	Forming machine	1
7	200KW Solid state HF and D/C speed control welder	1
8	Water cooling tank	1
9	Sizing machine	1
10	Computer flying saw	1
11	Transmission and conveyer table	1
12	Packing machine	1
13	Electric and platform	1
14	Hydraulic pump station	1
15	The anchor bolts and embedded parts	1

Model Specifications and Parameters

Model	Diameter (mm)	Thickness (mm)	Speed (m/min)	Main Power (kw)	HF Welder (KW)	Area (m²)
HG32	10-32	0.4-1.5	30-100	250	100	12x100
HG50	12-50	0.6-2.5	30-90	300	150	12x100
HG76	12-76	1-3	30-90	320	200	12x100
HG89	32-89	1-4	30-80	350	300	12x100
HG114	45-114	1.5-5.0	30-60	400	300	12x100
HG165	60-165	3-7	30-50	600	400	12x100
HG219	114-219	4-8	20-40	800	500	15x150
HG273	114-273	4-10	15-30	1000	600	18x160
HG325	165-325	4-10	10-30	1200	600	12x100
HG426	165-426	4-12.7	8-25	1400	800	12x100
HG508	219-508	4-16	8-20	2000	1000	12x100

Our Comprehensive Services

Engineer able to service overseas
Work out reasonable investment scheme and recommend rational model unit
Provide free equipment layout and factory planning
Provide free equipment foundation drawing
Site survey and construction available
Equipment installation and commissioning services
Professional technical training for your staff
