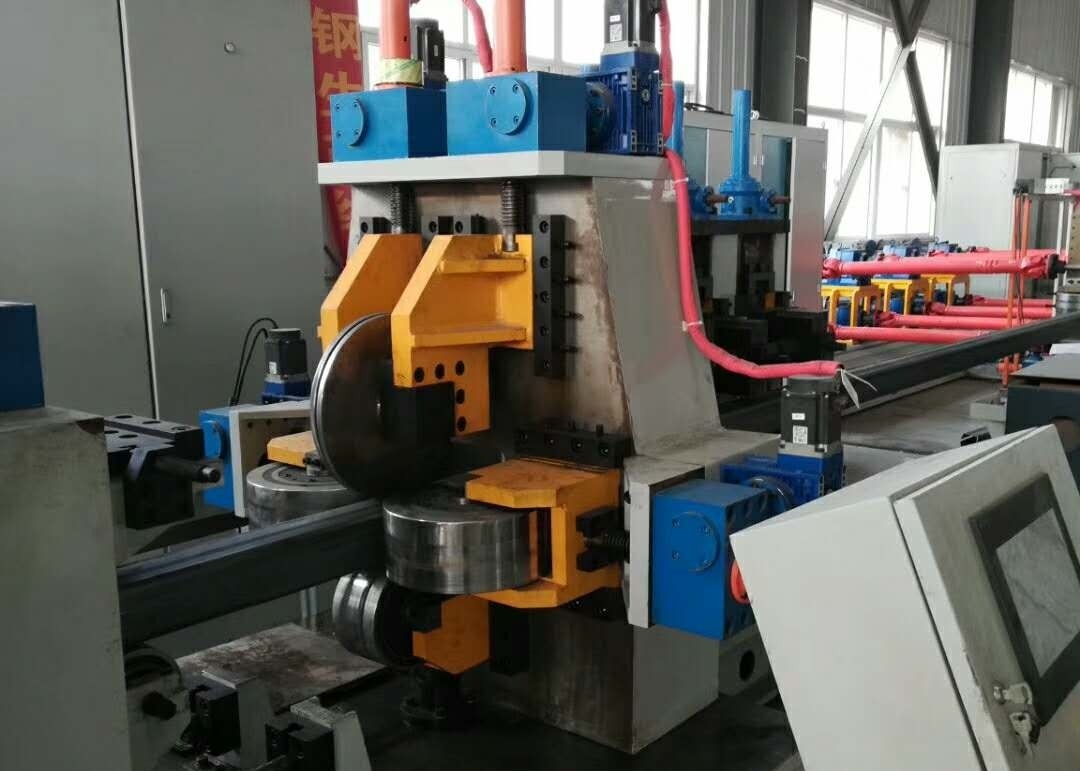

Full Auto ERW Mill for 70x70-200x200mm Square Pipe Production

Name: Full Auto ERW Mill for 70x70-200x200mm Square Pipe Production
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: F200x200,8
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	F200x200,8

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

F200x200,8

Product Name:

Square Pipe 70x70-200x200mm Full Auto Erw Mill

Material:

Low Carbon Steel And Low Alloy Constructional Steel

Brand Name:

TENGTIAN

Running Speed:

F200x200

Square Tube:

80x80—200x200mm

Product Thickness:

3-8mm

Warranty:

One Year

Welding Type:

High Frequency Welding

Max Coil Weight:

16 TON

Keywords:

Full Auto Erw Mill

Highlight:

High Light

Highlight:

full auto erw mill

square pipe 70x70 erw mill

precision welded pipe mill

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

60 work days

Payment Terms:

L/C,T/T

Supply Ability:

50 Sets/Year

Product Description

Square Pipe 70x70-200x200mm Full Auto ERW Mill

Product Specifications

Attribute	Value
Material	Low carbon steel and low alloy constructional steel
Brand Name	TENGTIAN
Running Speed	F200x200
Square Tube Size	80x80-200x200mm
Product Thickness	3-8mm
Warranty	One year
Welding Type	High Frequency Welding
Max Coil Weight	16 TON

Product Overview

The F200x200 high precision high frequency welded pipe production line is designed to manufacture square pipes ranging from 70x70-200x200mm with thickness from 3.0-8.0mm. This production line incorporates innovative design elements from domestic and international equipment, featuring full PC or computer control for advanced operation and maintenance convenience. The technology meets international standards from the early nineties and represents domestic leading levels.

Forming Type: Direct Forming

Main Components of Production Line

No.	Name	Quantity
1	Loading Car	1
2	One Cone Hydraulic Uncoiler	1
3	Straight Head Machine	1
4	Pinch Leveling Machine	1
5	Automatic Shear and Welder	1
6	Horizontal Accumulator	1
7	Forming and Sizing Mill	1
8	Computer Milling Saw	1
9	Runout Table 30M	1
10	Hydraulic Station	1
11	1000KW Solid Welder	1
12	Automatic Stacking Machine	1
13	Rollers	1

Key Equipment Features

Rapid roller adjustment capability significantly reduces changeover time between products, improving efficiency and reducing production costs
Utilizes a combined mold system that produces different tube specifications through adjustment rather than replacement, achieving over 90% roller savings
Motorized adjustments minimize tool input and equipment damage during roll changes, extending equipment service life
Composite roll structure creates point contact (rather than line contact) between roll and strip, reducing wear and extending roll life

Material and Production Specifications

Raw Material Conditions

Material Standards: GB700-88, GB1591-88 (hot rolled or cold rolled steel strip)
Yield strength: σs ≤ 345Mpa
Tensile strength: σb ≤ 560 Mpa
Thickness: 3-8mm (GB708-88)
Steel strip width: 270-800mm (±0.2mm)
Steel coil inner diameter: Φ508-Φ760mm
Steel coil outer diameter: Φ1100-Φ2000mm
Maximum coil weight: 16TON

Pipe Specifications

Square tube size: 70x70-200x200mm
Product thickness: 3.0-8.0mm
Length: 4-12M
Speed: 20-40m/min
Power: 1800KW 380V 50Hz 3 PHASE

Production Process

Raw material (strip) → loading car → uncoiler → cutting and welding → feeding → storage material → passive leveling → forming rolling → high frequency welding → weld burr removal → cooling → sizing → coarse straightening → length cut → collection

Production and Payment Terms

Production Period: 8 months after signing contract

Payment Terms: 30% TT as downpayment after signing contract, 70% TT payoff before delivery

All square and rectangular tube specifications use a set of rollers, requiring no replacement - adjustments are made by motor.

Service Information

Pre-Sales Service

Equipment photos provided before shipment to verify product authenticity
Online remote guidance available for installation and commissioning if travel restrictions apply
When permitted, on-site engineering support available (3 engineers minimum) with terms:
- USD 150/day per engineer salary during debugging period (maximum 1 month)
- Round trip airfare and local expenses (food, accommodation, transportation) to be covered by buyer

After-Sales Service

12-month warranty from equipment arrival date for normal operation conditions
Free repair or replacement for quality-related parts failure
Same engineering support terms as pre-sales service apply for after-sales support
