Full Automatic ERW165 High Frequency Welded Pipe Mill

Name: Full Automatic ERW165 High Frequency Welded Pipe Mill
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: ERW165
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	ERW165

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

ERW165

Product Name:

High Frequency Welded Pipe Mill Full Automatic ERW Pipe Mill Making Machine ERW165 Rectangular Shape

Forming Method:

FFX Forming Technology & Directly Forming

Pipe Shape:

Round, Square & Rectangular

Pipe Diameter:

114 - 273mm

Max.Thickness For Round Pipe:

2.0 - 10.0mm

Cutting Saw:

Milling Saw

Square Pipe:

60*60 - 200*200mm

Colour:

Blue

Keywords:

High Frequency Welded Pipe Mill

Highlight:

High Light

Highlight:

Full Automatic hf welded tube mill

ERW hf welded tube mill

Rectangular hf welded tube mill

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

8 months

Payment Terms:

L/C,T/T

Supply Ability:

50 Sets/Year

Product Description

Full Automatic ERW165 Rectangular Shape HF Welded Tube Mill

Product Specifications

Attribute	Value
Product name	High Frequency Welded Pipe Mill Full Automatic ERW Pipe Mill Making Machine ERW165 Rectangular Shape
Forming Method	FFX Forming Technology & Directly Forming
Pipe shape	Round, Square & Rectangular
Pipe Diameter	114 - 273mm
Max.Thickness for Round Pipe	2.0 - 10.0mm
Cutting Saw	Milling Saw
Square Pipe	6060 - 200200mm
Colour	Blue

Product Description

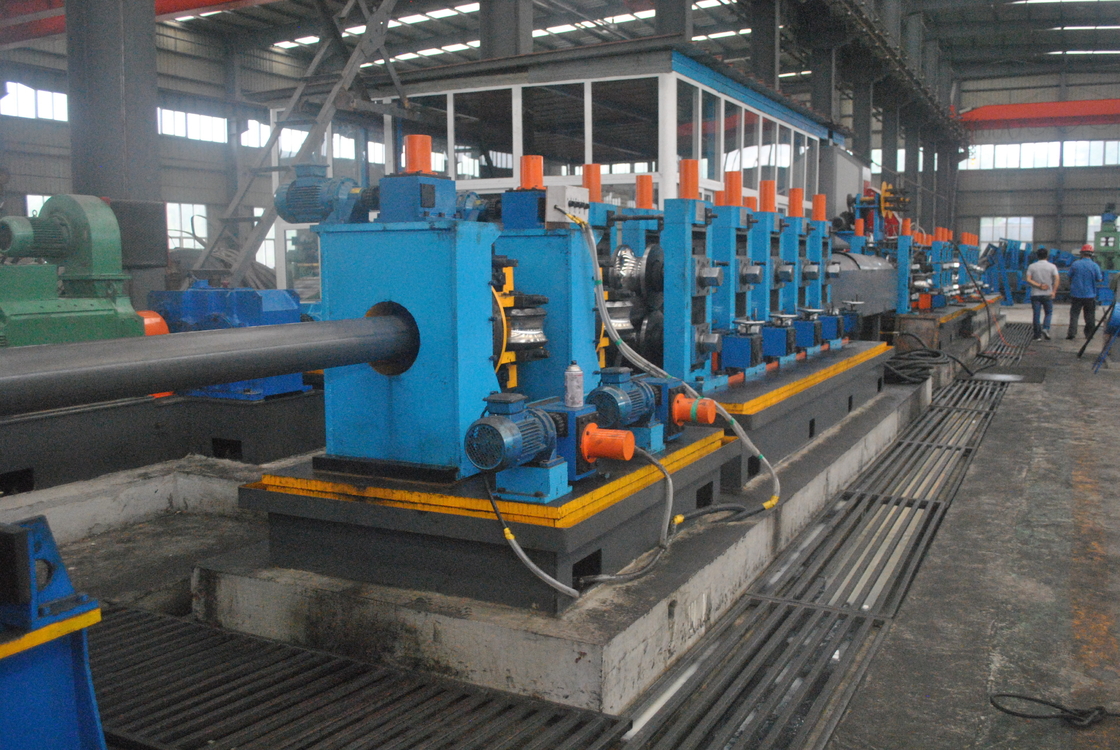

ERW165 high precision full automatic ERW Pipe mill making machine

This production line manufactures welded steel pipes with diameters of Φ114mm-Φ273mm and wall thicknesses of 2.0mm-10.0mm, capable of producing square pipes from 60*60mm to 200*200mm. Incorporating advanced pipe making technology from domestic and international sources, our innovative design offers both economic and practical solutions.

Key Features

Designed to produce welded pipes of 32mm-89mm in OD with wall thicknesses of 1mm-4.5mm
Capable of manufacturing square and rectangular tubes from 25mm×25mm to 70mm×70mm
Standard pipe length: 6-12m (±3mm tolerance)
Compatible with carbon steel coil (GB Q195-Q345), alloy steel coil, and API 5L X42-X80 materials
Production speed: 20-60m/min
Operational direction customizable (left to right or right to left)

Production Line Process

Uncoiling → Shear & butt welding → Cage looping (Accumulating) → Forming → HF welding → Removing inside & outside bead → Cooling → Sizing → Cutting → Conveying → Downloading → Packing → Warehousing

Tube Mill Line Components

Double-reel Mechanical Uncoiler
Shear & Butt Welder
Cage Loop (Accumulator)
Tube mill
Solid State H.F. welder
NC Flying Saw
Output Rollway
Rollers

As a CE & ISO9001:2008 certified pipe making machine manufacturer, our high-quality, reliable machines have been exported to over 30 countries including Turkey, Egypt, Morocco, Kazakhstan, and Mexico.

For more information about our ERW165 Tube Mill, please contact our sales team for assistance.
