Full Automatic Pipe Mill Machine 50-140mm 2-5.5mm Thickness

Name: Full Automatic Pipe Mill Machine 50-140mm 2-5.5mm Thickness
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: LJ76
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE,ISO9001,BV
Model Number:	LJ76

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE,ISO9001,BV

Model Number:

LJ76

Product Name:

Full Automatic Pipe Mill Machine Servo Motor 1 Year Warranty

Thickness:

2-5.5mm

Cutting Speed:

80m/min

Warranty:

1 Year

Pipe Size:

50-140mm

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Colour:

Blue

Keyword:

Full Automatic Pipe Mill Machine

Highlight:

High Light

Highlight:

tube milling machine

steel pipe making machine

steel pipe manufacturing machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

150 work days

Payment Terms:

L/C,T/T

Supply Ability:

50 Sets/Year

Product Description

Full Automatic Pipe Mill Machine Servo Motor 1 Year Warranty

Product Specifications

Thickness	2-5.5mm
Cutting speed	80m/min
Warranty	1 Year
Pipe size	50-140mm
After-sales Service	Engineers available to service machinery overseas
Color	Blue

Product Overview

HeBei TengTian is a recognized pioneer in welded seam tube mill manufacturing in China, offering both standard and specialized equipment for a wide range of metal tube and pipe diameters from 4.76mm to 28" OD. Our mills support various welding technologies including high-frequency induction, contact welders, and ERW (Electric Resistance Welding).

Key Features

High precision pipe manufacturing with advanced W, FFX, FF forming methods
German roll forming design for superior quality
Stable performance with high yield production
Fully automated operation with simple controls
Continuous production capability
High efficiency with minimal material waste
Low production costs with optimized processes

Production Process

Step 1 - Coils: Carbon steel coils prepared for pipe production

Step 2 - Uncoiler: Steel coil placed on the uncoiler

Step 3 - Leveler: Coil stock is leveled for uniform thickness

Step 4 - Butt Welding: Connects coils for continuous forming

Step 5 - Mill: Rolls form flat steel into pipe shape

Step 6 - Welder: Electric Resistance Welder completes the pipe

Step 7 - Scarfer: Smooths the welded seam

Step 8 - Saw: Cuts pipe to specified lengths

Step 9 - Collecting: Finished pipes collected for packaging

Available Models

Model	Pipe Size	Thickness	Speed (m/min)	Capacity (KW)	HF (KW)	Area (LxW)
HG20	ø8 - ø20 mm	0.3 - 1.5 mm	30 - 150	210	100	40*12
HG32	ø10 - ø32 mm	0.4 - 2.0 mm	30 - 150	300	150	40*12
HG50	ø16 - ø50 mm	0.7 -2.5 mm	30 - 150	410	200	60*12
HG60	ø22 - ø60 mm	0.9 - 3.0 mm	30 - 150	410	200	60*12
HG76	Ø25 - ø76 mm	1 - 4 mm	30 - 120	580	300	80*16
HG89	Ø32 - ø89 mm	1 - 4.5 mm	30 - 100	660	300	100*16
HG114	Ø45 - ø114 mm	1.5 -5 mm	30 - 80	920	400	100*16
HG140	Ø50 - ø140 mm	1.5 - 5.5 mm	30 - 80	920	400	100*16

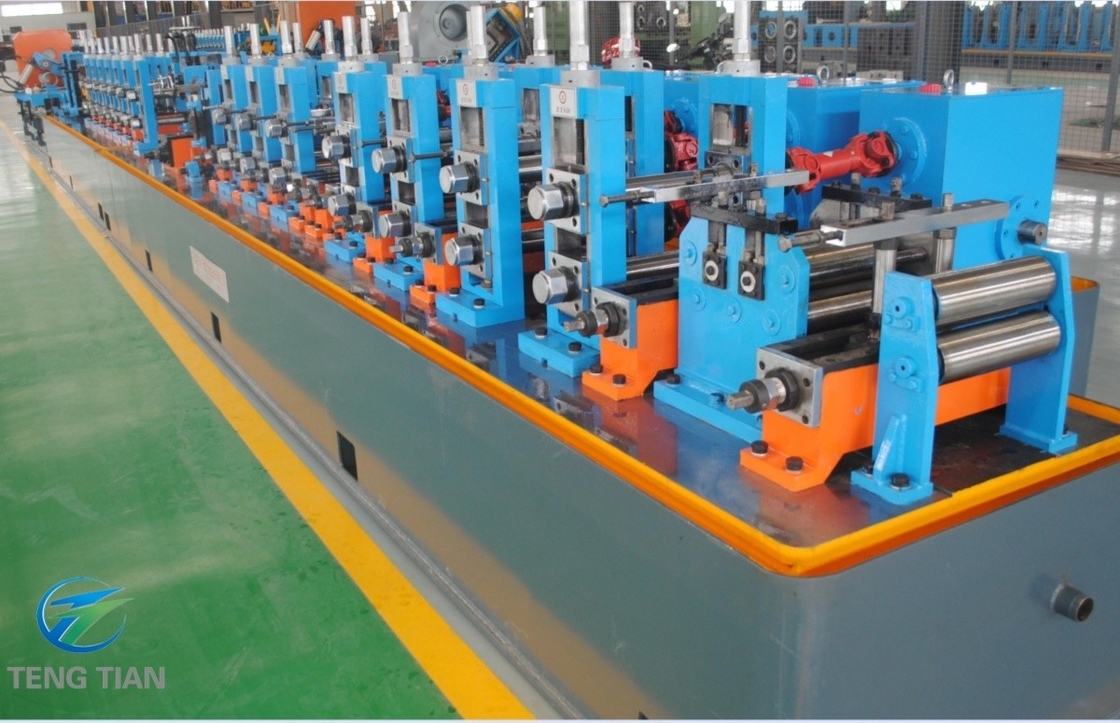

Product Image
