Galvanized Carbon Steel Pipe Manufacturing Machine 380V 50Hz

Name: Galvanized Carbon Steel Pipe Manufacturing Machine 380V 50Hz
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG32-165
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE ISO
Model Number:	HG32-165

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE ISO

Model Number:

HG32-165

Product Name:

Galvanized Carbon Steel Pipe Manufacturing Machine 380V 50HZ Automatic Packing

Product Speed:

Max 90m/min

Pipe Diameter:

Up To The Tube Mill Size

Pipe Thickness:

Up To The Tube Mill Size

Type Of Welding:

High Frequency Welding

Keyword:

Steel Pipe Manufacturing Machine

Highlight:

High Light

Highlight:

Wrapping metal pipe making machine

Bundling metal pipe making machine

Bundling Steel Pipe Making Machine

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

packed in seaworthy material

Delivery Time:

two month

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

200 set per year

Product Description

Galvanized Carbon Steel Pipe Manufacturing Machine 380V 50HZ Automatic Packing

Product Specifications

Attribute	Value
Product Name	Galvanized Carbon Steel Pipe Manufacturing Machine 380V 50HZ Automatic packing
Product Speed	Max 90m/min
Pipe Diameter	Up to the tube mill size
Pipe Thickness	Up to the tube mill size
Type of Welding	High frequency welding

Product Description

This automatic packing machine handles steel pipes of various specifications and lengths through taking, counting, and feeding devices. It automatically palletizes pipes into square or hexagonal bundles, then secures them with automatic strapping. The equipment operates smoothly without requiring manual supervision.

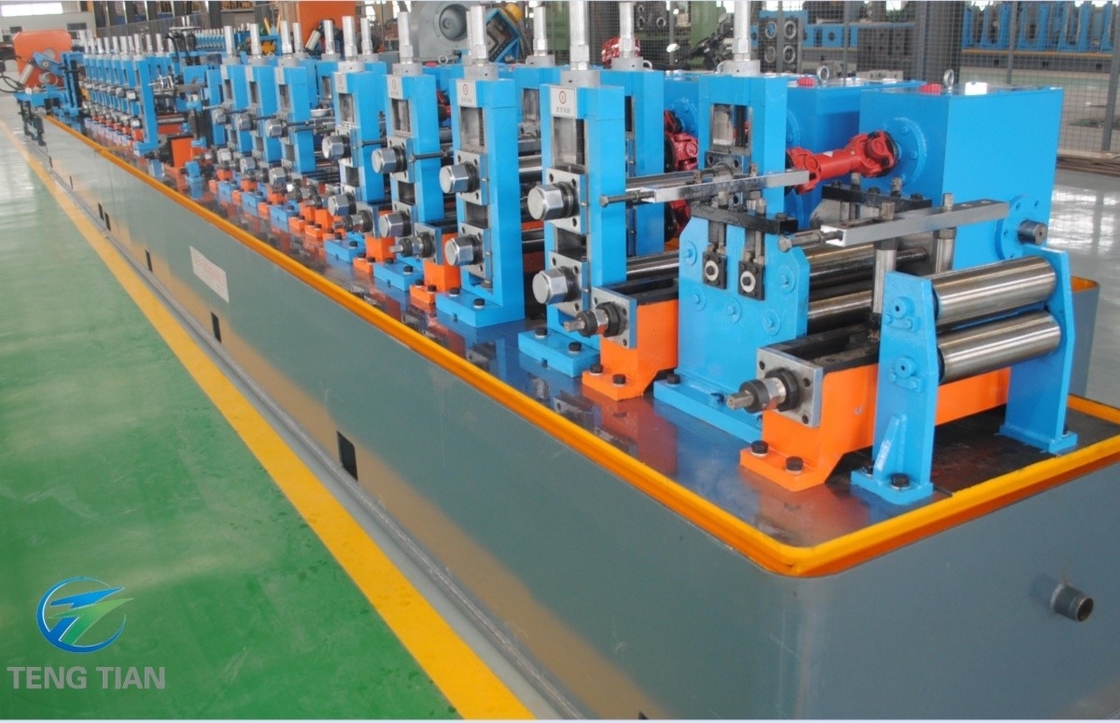

Tube Mill Production Process

Material (steel coil)
Uncoiler
Shear and welder
Horizontal (or cage) accumulator
Forming mill
HF solid welder
Sizing mill
Rough straightening (turkey head)
Cut off machine
Run out table

ERW Tube Mill Models

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
HG20	8-25.4MM	0.3-1.2MM	120
HG32	10-32MM	1.4-1.5MM	120
HG50	16-76MM	0.7-2.5MM	30-120
HG76	25-76MM	1-4MM	30-100
HG89	32-89MM	1-4.5MM	30-80
HG114	45-114MM	1.5-5.0MM	30-60
HG165	60-165MM	3-7MM	30-50
HG219	114-219MM	4-8MM	20-40
HG273	114-273MM	4-10MM	15-30
HG325	165-325MM	4-10MM	10-30
HG426	165-426MM	4-12.7MM	8-25
HG508	219-508MM	4-16MM	8-20

Note: These models are for reference only. Product range and thickness are adjustable. Our engineering team can design machines according to specific customer requirements.
