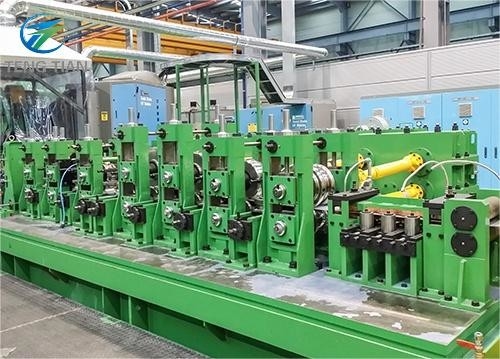

Galvanized Steel Pipe Mill Machine with 100m/min Cutting Speed

Name: Galvanized Steel Pipe Mill Machine with 100m/min Cutting Speed
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: CS60
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE,ISO9001,BV
Model Number:	CS60

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE,ISO9001,BV

Model Number:

CS60

Product Name:

Galvanised Steel Pipe Mill Machine Flying Cutting Speed 90m / Min

Motor Type:

Servo Motor

Cutting Speed:

Max.100m/min

Warranty:

1 Year

Tube Size:

19-63.5mm

Thickness:

0.8-3.5mm

Cutting Accuracy:

≤±1 Mm

Keyword:

Galvanised Steel Pipe Mill Machine

Highlight:

High Light

Highlight:

tube milling machine

steel pipe making machine

steel pipe manufacturing machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

90 work days

Payment Terms:

L/C,T/T

Supply Ability:

50 Sets/Year

Product Description

Galvanised Steel Pipe Mill Machine Flying Cutting Speed 90m / Min

Product Specifications

Attribute	Value
Product Name	Galvanised Steel Pipe Mill Machine Flying Cutting Speed 90m / Min
Motor type	Servo motor
Cutting speed	Max.100m/min
Warranty	1 Year
Tube size	19-63.5mm
Thickness	0.8-3.5mm
Cutting Accuracy	≤±1 mm

Product Overview

Through the world-famous brand, HeBei TengTian has long been recognized as one of the earlier pioneers in the welded seam tube mill business in China. The TengTian brand offers multiple standard tube mills for common product sizes. In addition to the standard machines, we also offer specialized equipment that covers a wide diameter range of metal tubes and pipes -- from the 3/16″ (4.76mm) O.D. cold stretch reducing mills to the 28″ OD cage mills.

As required by the application for welding the tube or pipe, HeBei TengTian can also provide mills with high-frequency induction or contact welders, DC and AC Square Wave Welding (ERW).

Key Features

High precision pipe making
Stable performance
High yield
Full automation
Simple operation
Continuous production
High efficiency, less material waste
Low production cost

Manufacturing Process

Coils: Carbon steels that are going to be made into pipe and tube
Uncoiler: The carbon steel coil is placed on the uncoiler
Leveler: The coil stock is leveled
Butt welding: Connect the last coil to next coil for uninterrupted forming & sizing
Mill: Goes through a series of rolls that form the flat steel into pipe
Mill Rollers: Rolls form this size schedule into shape
Welder: An Electric Resistance Welder finishes the pipe or tube
Scarfer: The seam is "scarfed" to make the pipe or tube smooth
Saw: The pipe and tube is sawed cut to length
Collecting: Finally, collecting pipes and tubes for packing

Available Models

No.	Model	Pipe Size	Thickness	Speed (m/min)	Capacity (KW)	HF (KW)	Area (LxW)
1	HG20	ø8 - ø20 mm	0.3 - 1.5 mm	30 - 150	210	100	40*12
2	HG32	ø10 - ø32 mm	0.4 - 2.0 mm	30 - 150	300	150	40*12
3	HG50	ø16 - ø50 mm	0.7 -2.5 mm	30 - 150	410	200	60*12
4	HG60	ø22 - ø60 mm	0.9 - 3.0 mm	30 - 150	410	200	60*12
5	HG76	Ø25 - ø76 mm	1 - 4 mm	30 - 120	580	300	80*16
6	HG89	Ø32 - ø89 mm	1 - 4.5 mm	30 - 100	660	300	100*16
7	HG114	Ø45 - ø114 mm	1.5 -5 mm	30 - 80	920	400	100*16
8	HG140	Ø50 - ø140 mm	1.5 - 5.5 mm	30 - 80	920	400	100*16
9	HG165	Ø60 - ø165 mm	2 - 6 mm	30 - 60	1100	500	100*16
10	HG219	Ø114 - ø219mm	3 - 8 mm	20 - 45	1400	600	150*16
11	HG273	Ø114 - ø273mm	4 - 12 mm	15 - 30	2100	800	160*18
12	HG325	Ø165 - ø325 mm	4 - 14 mm	10 - 30	2500	1000	200*24
13	HG426	Ø165 - ø426 mm	4 - 16 mm	8 - 25	2900	1200	250*24
14	HG508	Ø219 - ø508 mm	5 - 18 mm	5 - 18	3400	1600	300*24
15	HG610	Ø355 - ø610 mm	5 - 18 mm	5 - 18	3700	1600	300*24
16	HG760	Ø426 - ø760 mm	5 - 20 mm	5 - 20	4300	1800	300*24
