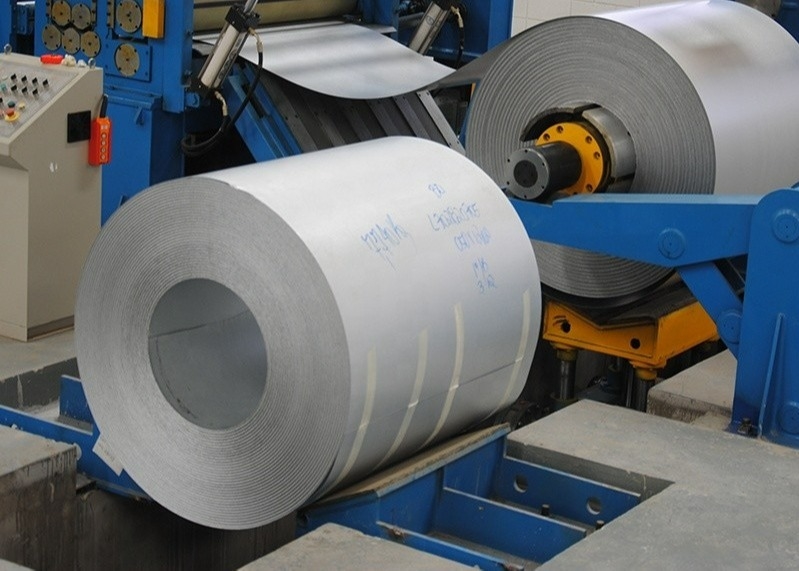

Heavy Duty Steel Slitting Machine for Stainless Steel Aluminum 2500mm Max Width

Name: Heavy Duty Steel Slitting Machine for Stainless Steel Aluminum 2500mm Max Width
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: 2500 X9 mm
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	Hebei Tengtian
Certification:	CE
Model Number:	2500 X9 mm

Detail Information

Place of Origin:

China

Brand Name:

Hebei Tengtian

Certification:

Model Number:

2500 X9 mm

Name:

Heavy High Speed Steel Slitter For Stainless Steel Aluminum Steel Slitting Machine

Max Width:

2500mm

Thickness Range:

9 Mm

Cutting Currency:

±2 Mm

Cutting Speed:

0-30 M/min

The Loading`bearing Capacity Of The Decoiler:

50T

Cutter Motor:

137kw

Coiler Motor:

120kw

Highlight:

High Light

Highlight:

30m/min Steel Slitter

High Speed Steel Slitter

30m/min Steel Slitting Machine

Trading Information

Minimum Order Quantity:

Price:

$100000 to $1 million

Packaging Details:

container

Delivery Time:

1 month

Payment Terms:

L/C,,T/T

Supply Ability:

Product Description

Heavy High Speed Steel Slitter For Stainless Steel Aluminum Steel Slitting Machine

Product Specifications

Max Width	2500mm
Thickness Range	9 mm
Cutting Currency	±2 mm
Cutting Speed	0-30 m/min
Loading/Bearing Capacity of Decoiler	50T
Cutter Motor	137kw
Coiler Motor	120kw

Main Technical Parameters

Coil Thickness: Max 9 mm
Coil Width: Max 2500mm
Coil Weight: ≤ 50 t
Inner Diameter: Φ508/610/760mm
Outer Diameter: ≤Φ2000mm
Width Precision: ±2 mm (thickness 2.0-3.0) ±0.20 mm (thickness 3.1-9.0)
Burr Accuracy: ≤5%

Equipment Composition

No.	Name	Quantity
1	Coil car	1 Set
2	Uncoiler	1 Set
3	Pressure leading device	1 Set
4	Clamp & Straightener	1 Set
5	Shearing	1 Set
6	1#Accumulator	1 Set
7	Guiding device	1 Set
8	Pinch roll	1 Set
9	Slitter machine	2 Sets
10	Edge rewinder	1 Set
11	Wear tape table and material tail pressing plate	1 Set
12	2#Accumulator	1 Set
13	Seperation device	1 Set
14	Tension plate	1 Set
15	3-roll tension burr extruding machine	1 Set
16	Steering roller and feed head guide plate	1 Set
17	Recoiler + Coiling support	1 Set
18	Unloading car	1 Set
19	Knife disc, knife pad, unloading apron, separating disc, separating disc pad and other process parts	-------

Other Models of Slitting Line

Model (mm)	Plate Thickness (mm)	Plate Width (mm)	Steel Coil Weight (T)	Finished Width (mm)	Shear Article Number	Shear Speed (m/min)
3×500	0.4-3	100-500	7	≥30	≤6	140
3×600	0.4-3	100-600	8	≥30	≤6	140
3×800	0.5-3	200-800	10	≥30	≤8	140
3×1250	0.5-3	400-1250	15	≥30	≤10	120
3×1500	0.5-3	600-1500	20	≥30	≤12	120
3×1800	0.5-3	900-1600	30	≥40	≤13	120
4×1600	0.5-4	900-1600	30	≥60	≤13	120
6×1600	1-6	900-1600	30	≥60	≤10	110
8×2000	2-8	900-2000	35	≥70	≤6	100
10×2200	3-10	900-2200	35	≥80	≤5	80
12×2200	3-12	900-2200	35	≥100	≤5	50
16×2500	4-16	900-2500	35	≥100	≤5	40
20×2500	6-20	900-2500	35	≥100	≤4	40
