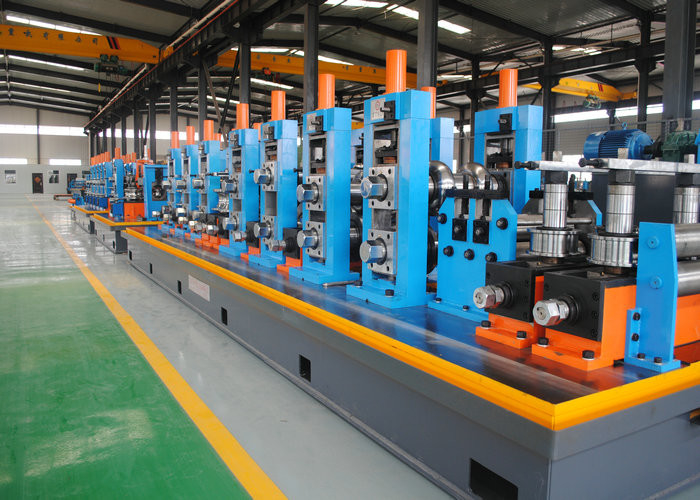

HF ERW Carbon Steel Tube Mill 21-63mm Pipe Diameter
  • HF ERW Carbon Steel Tube Mill 21-63mm Pipe Diameter
  • HF ERW Carbon Steel Tube Mill 21-63mm Pipe Diameter
  • HF ERW Carbon Steel Tube Mill 21-63mm Pipe Diameter
  • HF ERW Carbon Steel Tube Mill 21-63mm Pipe Diameter

HF ERW Carbon Steel Tube Mill 21-63mm Pipe Diameter

Product Details:
Place of Origin: Hebei
Brand Name: Tengtian
Certification: CE, ISO9001, BV
Model Number: HG60
Detail Information
Place of Origin:
Hebei
Brand Name:
Tengtian
Certification:
CE, ISO9001, BV
Model Number:
HG60
Product Name:
HF ERW Carbon Steel Tube Mill , Electric Resistance Welded Pipe Forming Line
Adjusting:
Worm Gearing
Worm Gearing:
Max.80m/min
Cutting Saw:
Friction Saw Cutting
Welding Type:
High Frequency Welding
Max.Thickness For Square Pipe:
0.8-3.0mm
Pipe Diameter:
21 - 63mm
Keywords:
Welded Pipe Forming Line
Highlight:

High Light

Highlight:

stainless tube mills

,

slitting line machine

Trading Information
Minimum Order Quantity:
1 Set
Price:
$100000 to $1 million
Packaging Details:
Export waterproof and Seaworthy packing.
Delivery Time:
2.5 months
Supply Ability:
50 Sets/Year
Product Description
HF ERW Carbon Steel Tube Mill - Electric Resistance Welded Pipe Forming Line
Key Specifications
Attribute Value
Adjusting Worm gearing
Worm gearing speed Max. 80m/min
Cutting Saw Friction Saw Cutting
Welding Type High Frequency Welding
Max. Thickness for Square Pipe 0.8-3.0mm
Pipe Diameter 21 - 63mm
Product Overview
Nantong Reliantt offers almost 30 standard models, covering range from 3/8'' (8mm) up to 10'' (273mm) diameter (corresponding square & rectangular tubes) and wall thickness from 0.3mm up to 12.7mm, also accept customized machines.
Suitable material: Carbon Steel Coil, Galvanized Steel Coil
Applications
  • Water pipe
  • Heating pipe
  • Low-pressure process pipeline
  • Low pressure fire fighting pipeline
  • Sewage Pipes
  • Steel Scaffolding Pipe
  • Wire and cable protection pipe
  • Structural support Steel Pipe
  • Industrial Steel Pipes
  • Decoration Pipe
  • Oil & Gas Pipes
Production Process
  • Scroll up
  • Uncoil
  • Flattening
  • End Shear & Butt Welding
  • Accumulator
  • Forming
  • High-frequency induction welding
  • Removing external burr
  • Cooling
  • Sizing
  • Cutting
  • Checking & Collecting
  • Accessing Warehouse
Technical Specifications
1. Raw Material
Material application Hot or cold rolled steel strips, galvanized steel strips
Material grade Low-carbon steel, low alloy steel: δs≤345Mpa
ID of the steel strips Φ508-Φ610mm
OD of the steel strips Φ800-Φ2000mm
Coiler weight Max. 4000kg
2. Production Range
Round Pipe 32-140mm | Thickness: 1.0-5.0mm
Square Pipe 25*25-110*110mm | Thickness: 1.0-4.0mm
Rectangular Pipe 20*30-90*120mm | Thickness: 1.0-4.0mm
3. H.F. Welder: GGP300Kw Solid State High Frequency Welder
4. Line Speed: Max. 70m/min
5. Tube Length: 6-12m
6. Cutting Accuracy: ±3mm
7. Electric installed capacity: approx. 500KW
8. Size of whole line: about 80X9m
Product Advantages
  • High precision: Between level roller jumps 0.01, between frame and slide clearance ≤0.02, frame vertical degree ≤0.05, each frame parallel degree ≤0.1, steel pipe diameter and roundness error≤0.08
  • Uses Japanese technology to meet high accuracy requirements of foreign clients
  • Schedulable worm gear and worm adjustment with high precision and energy efficiency
  • 3D adjustable scraping scar with ±20° rotation capability
  • Turkish head push square system reduces mold weight while ensuring stable forming and uniform R Angle
  • Level up shaft with nylon damping block reduces impact on shaft and bearing
Our Services
  • On-site engineer support for installation and operator training
  • One year quality guarantee with lifetime repair support
  • Comprehensive pre-sale and after-sale services including workshop design and production output planning
  • Option for extended engineer support (several months to 1 year) to optimize output and reduce waste
  • Complete project design services for stainless steel and carbon steel pipe production
  • Full responsibility for loading and shipping
