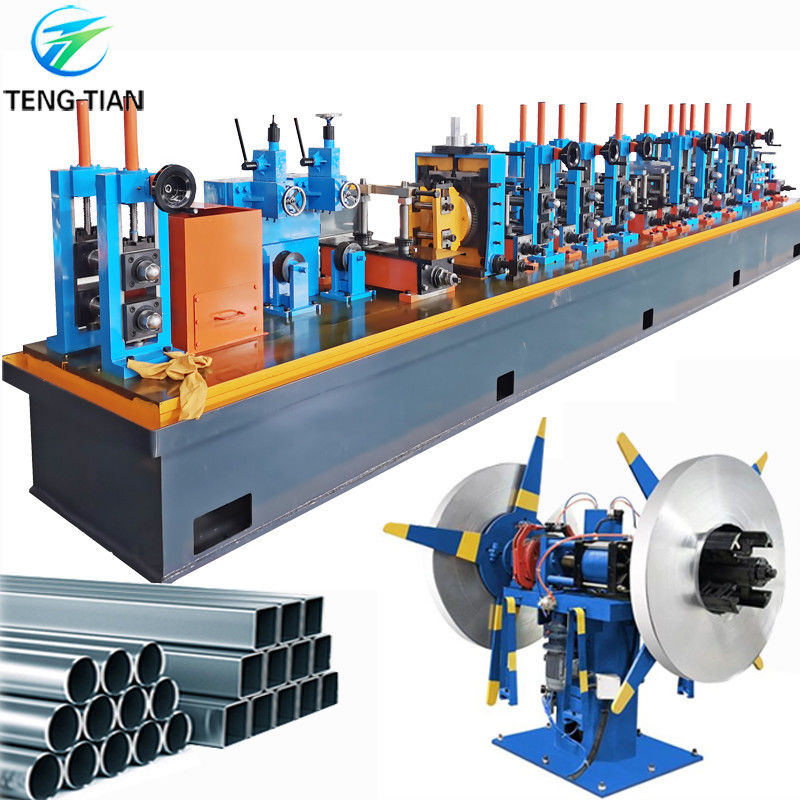

HG508 High Efficiency MS Steel Tube Making Machine with PLC Control

Name: HG508 High Efficiency MS Steel Tube Making Machine with PLC Control
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG508
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE, ISO9001
Model Number:	HG508

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE, ISO9001

Model Number:

HG508

Product Name:

HG508 High Efficiency MS Steel Tube Making Machine

Worm Gearing:

High Efficiency

Worm Gearing:

High Efficiency

Material Width:

100-300mm

Material Width:

100-300mm

Cutting Length:

Any Length

Cutting Length:

Any Length

Control System:

PLC

Roller Stations:

18-20 Stations

Cutting System:

Hydraulic Cutting

Cutting Tolerance:

±2mm

Key Word:

MS Steel Tube Making Machine

Highlight:

High Light

Highlight:

High Efficiency Steel Tube Making Machine

HG508 Steel Tube Making Machine

MS Steel Tube Making Machine

Trading Information

Minimum Order Quantity:

Price:

$100000 to $1 million

Delivery Time:

300days

Payment Terms:

CIF

Supply Ability:

30 SETS PER YEAR

Product Description

HG508 High Efficiency MS Steel Tube Making Machine

Attribute	Value
Product Name	HG508 High Efficiency MS Steel Tube Making Machine
Worm Gearing	High efficiency
Material Width	100-300mm
Cutting Length	Any Length
Control System	PLC
Roller Stations	18-20 Stations
Cutting System	Hydraulic Cutting
Cutting Tolerance	±2mm

Product Overview

The HG508x16 high frequency welded pipe production line manufactures welded steel pipes of Φ219mm-Φ508mm (thickness 4.0-16.0mm) and square pipes 170x170-400x400mm (thickness 4.0-16mm). Incorporating advanced global pipe making technology, our innovative design offers both economical and practical solutions.

Machine Specifications

Raw Material

Material Quality: Q195, Q235B, Q355B, Galvanized Steel, MS, CR, HR
Mechanical Properties: σb≤500Mpa, σs≤325MPa
Strip Width: 680-1600mm
Strip Thickness: 4.0-16mm
Coil ID: Φ508-610mm
Coil OD: Φ1200mm-2100mm
Coil Weight: 20.0T

Finished Product Specifications

Pipe Size: Round Pipe: φ219-φ508mm (T:4.0-16mm), Square Pipe: 170x170-400x400mm (T:4.0-15mm)
Length: 4-6m
Application: Structural purposes

Frequently Asked Questions

Q: Are you manufacturer or trading company?

A: We are manufacturers with over 20 years of experience.

Q: What is the max size of pipe you have ever produced?

A: Maximum φ630mm.

Q: Can I visit your customer machine line?

A: Yes, with prior agreement from our customer.

Q: What are your machine advantages?

A: Full automation, direct square forming, shared rollers, and fast change system.

Q: How can I get a quotation?

A: Please send us your pipe size and thickness requirements.
