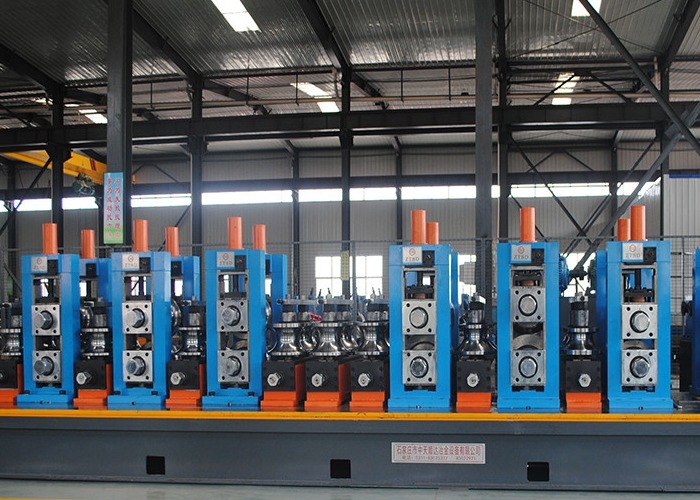

HG50 High Speed Tube Mill Machine for Round Square Rectangular Pipes

Name: HG50 High Speed Tube Mill Machine for Round Square Rectangular Pipes
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG 50
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	HG 50

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

HG 50

Production Name:

Tube Mill Machine

Adjusting:

Worm Gearing

Running Speed:

Max. 120 M / Min

Pipe Shape:

Round, Square & Rectangular

Pipe Diameter:

12 . 7 - 53 Mm

Max.Thickness For Round Pipe:

0 . 6 - 2.0mm

Welding Type:

High Frequency Welding

Square Pipe:

10 * 10 - 41 * 41 Mm

Cutting Accuracy:

± 2 Mm

Key Words:

Round Tube Roll Forming Machine Tube Mill Machine

Highlight:

High Light

Highlight:

50mm carbon steel tube mill

fast speed carbon steel tube mill

50mm carbon steel pipe mill

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

4 months

Payment Terms:

L/C,T/T

Supply Ability:

50 Sets/Year

Product Description

HG 50 Fast Speed Carbon Steel Tube Mill Machine Round Roll Forming Machine

Product Specifications

Attribute	Value
Production Name	Tube Mill Machine
Adjusting	Worm gearing
Running speed	Max. 120 m/min
Pipe shape	Round, Square & Rectangular
Pipe Diameter	12.7 - 53 mm
Max.Thickness for Round Pipe	0.6 - 2.0mm
Welding Type	High Frequency Welding
Square Pipe	10 * 10 - 41 * 41 mm
Cutting accuracy	± 2 mm

HG 50 Fast Speed Tube Roll Forming Machine

The HG50 high frequency straight welded pipe mill line is designed for manufacturing welded steel pipes. Incorporating advanced pipe making technology from domestic and international sources, our innovative production line offers both economical and practical solutions.

Product Advantages

High precision: Level roller jumps 0.01, frame vertical degree ≤0.05, steel pipe diameter and roundness error ≤0.08
Utilizes Japanese technology to meet high accuracy requirements
Worm gear and worm adjustment for precise, energy-efficient operation
3D adjustable scraping scar with ±20° rotation capability
Turkish head push square system reduces mold weight while ensuring stable forming and uniform R angles
Nylon damping blocks reduce impact on shafts and bearings

Production Process

Scroll up
Uncoil
Flattening
End Shear & Butt Welding
Accumulator
Forming
High-frequency induction welding
Removing external burr
Cooling
Sizing
Cutting
Checking & Collecting
Accessing Warehouse

Technical Specifications

Raw Material

Material application	Hot or cold rolled steel strips, galvanized steel strips
Material grade	Low-carbon steel, low alloy steel: σb ≤ 380 Mpa, σs ≤ 275 MPa
ID of the steel strips	Φ 508 mm
OD of the steel strips	Φ 1800 mm
Coiler weight	Max. 2.5 T

Production Range

Round Pipe	12.7 - 53 mm (Thickness: 0.6 - 2.0 mm)
Square Pipe	10 * 10 - 41 * 41 mm (Thickness: 0.6 - 2.0 mm)

H.F. Welder: 200kw Hi-frequency welder
Line Speed: Max. 120 m/min
Tube Length: 4 - 6 m
Cutting Accuracy: ± 1.5 mm
Size of whole line: about 70 X 6 m

As a CE & ISO9001:2008 certified pipe making machine manufacturer and supplier in China, our high-quality, reliable machines with long service life have been exported to over 30 countries including Turkey, Egypt, Morocco, Kazakhstan, Mexico, and Vietnam.

For inquiries or additional information, please contact us - we're happy to assist you.
