HG630 Steel Pipe Making Machine 380V PLC Controlled 15-20m/min

Name: HG630 Steel Pipe Making Machine 380V PLC Controlled 15-20m/min
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG630
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE, ISO9001
Model Number:	HG630

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE, ISO9001

Model Number:

HG630

Voltage:

380V/3Phase/50Hz

Control System:

PLC

Roller Stations:

18-20 Stations

Cutting Tolerance:

±2mm

Roller Material:

45# Steel

Forming Speed:

15-20m/min

Machine Size:

120m*8m*10m

Machine Weight:

About 600 Ton

Highlight:

High Light

Highlight:

Round ms pipe making machine

Square ms pipe making machine

steel pipe making machine automated

Trading Information

Minimum Order Quantity:

Price:

$100000 to $1 million

Delivery Time:

100 days

Payment Terms:

CIF

Supply Ability:

30 SETS PER YEAR

Product Description

HG630 Round Square Tube MS Pipe Making Machine Automated

Attribute	Value
Voltage	380V/3Phase/50Hz
Control System	PLC
Roller Stations	18-20 Stations
Cutting Tolerance	±2mm
Roller Material	45# Steel
Forming Speed	15-20m/min
Machine Size	120m8m10m
Machine Weight	About 600 Ton

Product Overview

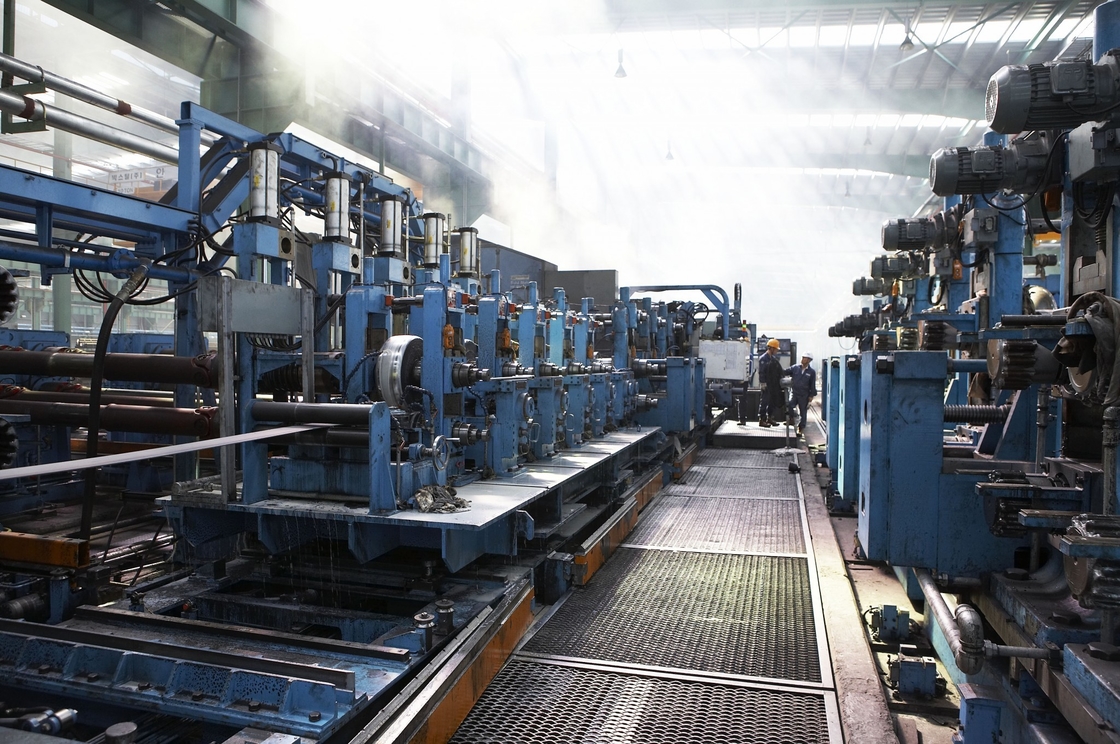

The HG 630x16 high frequency welded pipe production line manufactures welded steel pipes with diameters from Φ325mm to Φ630mm (thickness 4.0-16.0mm) and square pipes from 250x250mm to 500x500mm (thickness 4.0-16mm). Incorporating advanced global pipe making technology, our innovative design offers both economical and practical solutions.

Machine Specifications

Material Quality: Q195, Q235B, Q355B, Galvanized Steel, MS, CR, HR

Mechanical Properties: σb≤500Mpa, σs≤325MPa

Strip Width: 1020-2000mm

Strip Thickness: 4.0-16mm

Coil ID: Φ508-610mm

Coil OD: Φ1200mm-2100mm

Coil Weight: 25.0T

Finished Product Specifications

Pipe Size: Round Pipe: φ325-φ630mm (Thickness: 4.0-16mm)
Square Pipe: 250x250-500x500mm (Thickness: 4.0-15mm)

Length: 4-6m

Application: Structural purposes

Certifications & Technical Details

TENGTIAN Steel Pipe Making Machine is ISO9001 and CE certified, featuring excellent performance and reliable quality. Designed for round steel pipe production with advanced technology.

Powered by 380V/3Phase/50Hz voltage with ±2mm cutting tolerance. Constructed from 45# steel with approximately 400T total weight and 300mm shaft diameter.

Ordering Information

Brand Name: TENGTIAN

Model Number: HG630

Minimum Order Quantity: 1

Delivery Time: 200 days

Payment Terms: CIF

Supply Ability: 30 SETS PER YEAR

Technical Support & Services

Troubleshooting and problem solving
On-site installation and commissioning
Regular maintenance checks and servicing
Emergency repair and parts replacement
Software and system upgrades
Training and technical support

Our experienced technicians ensure your pipe making machine operates smoothly and efficiently. Contact us for any assistance.
