HG63x4 HF Tube Mill Machine 25-63.5mm Round 20x20-50x50mm Square

Name: HG63x4 HF Tube Mill Machine 25-63.5mm Round 20x20-50x50mm Square
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG 63*4
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENG TIAN
Certification:	ISO9001/BV
Model Number:	HG 63*4

Detail Information

Place of Origin:

China

Brand Name:

TENG TIAN

Certification:

ISO9001/BV

Model Number:

HG 63*4

Product Name:

HG63*4 Speed 60m/min Dia Round Pipe 25-63.5mm Square 20*20-50*50 HF Tube Mill Machine

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Pipe Material:

Carbon Steel

Voltage:

380V

Power(w):

650KW

Forming Speed:

Max 150 M / Min

Square Pipe:

20*20 - 50*50 Mm

Round Pipe Diameter:

25 - 63.5 Mm

Thickness:

0.8-4mm

Warranty:

1 Year

Keywords:

Tube Mill Machine

Highlight:

High Light

Highlight:

4mm thick pipe mill equipment

hf pipe mill equipment

380v pipe mill machine

Trading Information

Minimum Order Quantity:

1set

Price:

$100000 to $1 million

Packaging Details:

Seaworthy packing

Delivery Time:

3 months

Supply Ability:

150 units a year

Product Description

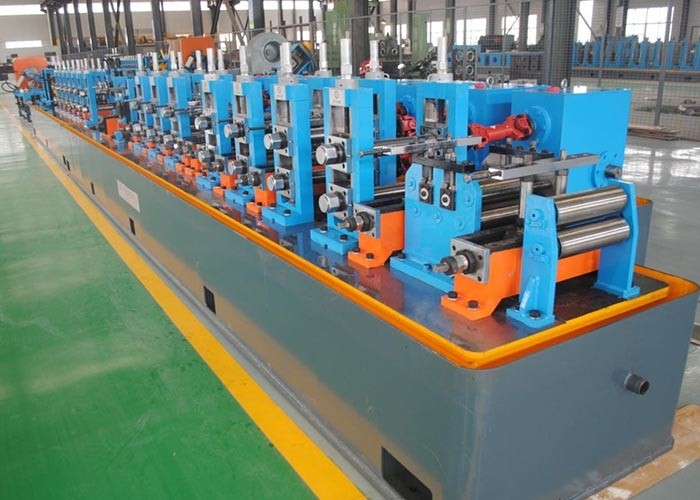

HG63×4.0 High Frequency Welded Tube Mill Machine

Key Specifications

Attribute	Value
Product Name	HG634 Speed 60m/min Dia Round Pipe 25-63.5mm Square 2020-50*50 HF Tube Mill Machine
Pipe Material	Carbon Steel
Voltage	380V
Power	650KW
Forming Speed	Max 150 m/min
Square Pipe Range	20×20 - 50×50 mm
Round Pipe Diameter	25 - 63.5 mm
Thickness Range	0.8-4mm
Warranty	1 year

Product Overview

The HG63×4.0 high frequency welded pipe production line manufactures welded steel pipes with diameters of 25mm-63.5mm and square pipes of 20×20-50×50mm, with wall thicknesses from 0.8mm to 4.0mm. This innovative design combines advanced domestic and international pipe making technology for an economical yet practical solution.

Model Specifications

Serial No.	Model	Thickness (mm)	Specification (mm)	Speed (m/min)	Main Engine (kw)	Power (kw)	Area
1	H20	0.3-1	8-20	30-120	55	60	7×50
2	H32	0.3-2.0	12-32	30-120	75	100	7×50
3	H50	0.8-2.5	16-50	30-110	110	150	7×60
4	H60	0.8-3	20-60	30-100	132	200	7×65
5	H76	1-3	12-76	30-100	320	250	8×80
6	H89	1-4	32-89	30-80	350	300	8×80
7	HG114	1.5-5	45-114	30-60	400	300	10×100
8	HG165	3-7	60-165	30-50	600	400	10×110
9	HG219	4-8	114-219	20-40	800	500	12×150
10	HG273	4-10	114-273	15-30	1000	600	18×160
11	HG325	4-12	165-325	10-30	1200	600	18×180
12	HG426	4-16	165-426	8-25	1400	800	18×180
13	HG508	4-20	219-508	8-20	2000	1000	21×180

Production Process

Loading car → Uncoil → Cutting and Welding → Accumulator → Forming, HF welding, anneal welder, Deburring, Cooling, Sizing, Straightening → STD Cold-cutting saw → Transmitting → Hydrostatic testing → End facer → Straightener → Packing → Storage

Our Services

On-site installation and operator training by our engineers
One year quality guarantee with lifetime repair support
Pre-sales services including workshop and production output design
After-sales support including installation, training, and technical assistance
Option for extended engineer support to optimize production output
Complete project design for stainless steel and carbon steel pipe production
Full responsibility for loading and shipping arrangements
