|Type:||Carbon Steel Slitting Machine||Special Require:||Can Design According To The Customer|
|Steel Thickness:||0.5-4.0mm||Product Speed:||Max 120m/min|
|Material:||Carbon Steel,stainless Steel|
slitting line machine,
sheet metal slitter machine
Main technical parameter
Material of coils: HR/CR carbon steel such as Q235, galvanized plate, colored steel plate etc
Metal Coil Slitter Strip thickness: (5~20) mm
Strip width: 800~2000mm
Max.coil weight: 40000kgs
Diameter of leveling rollers & tensioning roller: Φ260
Metal Coil Slitter Diameter of slitter shaft: Φ420
Coil Slitting Machine Disc cutters: 6CrW2Si, HRC54°~56°, OD650mm x ID420mm x T50mm.
Diameter of recoiler block: Φ800mm
Separating discs: 65Mn, OD250 x ID110 x T10/20mm
DC motors for slitter and recoiler: 280KW, 315KW.
Coil Slitting Machine Slitting speed: (0~20) m/min, adjustable
High Precision Carbon Steel Stainless Steel Slitting Line Machine
Slitting Line Machine Profile:
Slitting line machine mainly composed of uncoiler,feeder,slitter and recoiler.its function is to slit a wide coil to stated width strips coil along with the length direction which can be used for milling,welding pipe,cold bend forming,stamping as billet.At same time,changing different material blade can slit various metal coils.

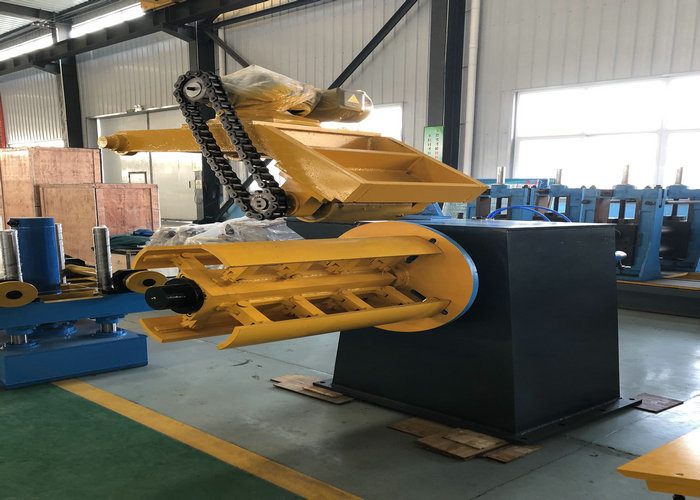

Loading coil car→Uncoiler→Straightener device→Pinch roll&leveler & hydraulic shearer →Loop pit →Side guide →Slitter →Transition platform & scrap winder →Loop pit →Tension station→Recoiler→Unloading coil car
The Basic Parameters:
|material||carbon steel,stainless steel,galvanized steel|
|Coil weight||Max 30 Ton|
Other Model Of Slitting Line
|Model||steel thickness||steel width||steel coil weight|
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping
