High Frequency ERW Pipe Milling Machine 21-63mm Diameter 4-10mm Thickness

Name: High Frequency ERW Pipe Milling Machine 21-63mm Diameter 4-10mm Thickness
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG60
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	HG60

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

HG60

Product Name:

Straight Seam High Frequency Erw Pipe Milling Machine , Worm Gearing Max.80m / Min

Product Speed:

Max 50m/min

Pipe Diameter:

21 - 63mm

Material:

Carbon Steel,stainless Steel,low Alloy Steel

Cutting Saw:

Friction Saw Cutting

Worm Gearing:

Max.80m/min

Pipe Thickness:

4.0-10.0mm

Keywords:

High Frequency Erw Pipe Milling Machine

Highlight:

High Light

Highlight:

stainless tube mills

slitting line machine

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

three months

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

60 set per year

Product Description

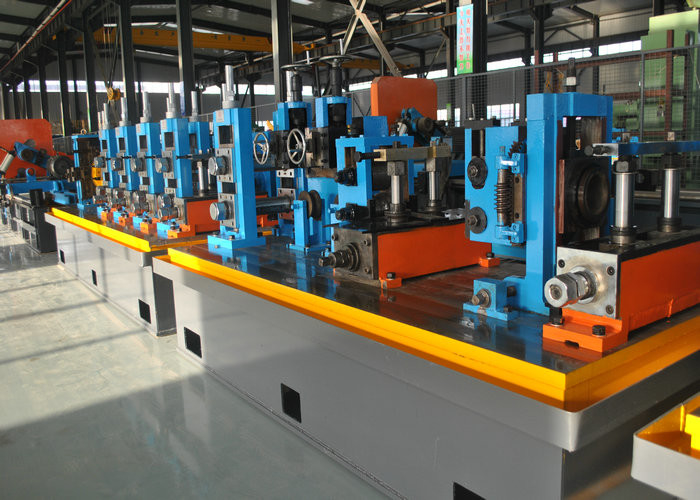

Straight Seam High Frequency ERW Pipe Milling Machine

Worm Gearing with Maximum Speed of 80m/min

Product Specifications

Attribute	Value
Product Speed	Max 50m/min
Pipe Diameter Range	21 - 63mm
Material Compatibility	Carbon steel, Stainless steel, Low alloy steel
Cutting Saw Type	Friction Saw Cutting
Worm Gearing Speed	Max. 80m/min
Pipe Thickness Range	4.0-10.0mm

ERW Tube Mill Model Variations

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
HG20	8-25.4MM	0.3-1.2MM	120
HG32	10-32MM	1.4-1.5MM	120
HG50	16-76MM	0.7-2.5MM	30-120
HG76	25-76MM	1-4MM	30-100
HG89	32-89MM	1-4.5MM	30-80
HG114	45-114MM	1.5-5.0MM	30-60
HG165	60-165MM	3-7MM	30-50
HG219	114-219MM	4-8MM	20-40
HG273	114-273MM	4-10MM	15-30
HG325	165-325MM	4-10MM	10-30
HG426	165-426MM	4-12.7MM	8-25
HG508	219-508MM	4-16MM	8-20

Comprehensive Services

On-site Installation & Training: Our engineers will install the machine and train your workers in proper operation
Warranty Coverage: One year quality guarantee with lifetime repair support. Free replacement parts during warranty period (excluding human error)
Full Service Support: Comprehensive pre-sale (workshop design, production planning) and after-sale services
Extended Engineering Support: Option for our engineers to work onsite for months to optimize production, reduce waste, and lower costs
Project Design Services: Complete project planning for stainless steel or carbon steel pipe production
Logistics Handling: We manage all loading and shipping arrangements
