High Frequency Tube Mill Machine for 21-63mm Pipes 50m/min

Name: High Frequency Tube Mill Machine for 21-63mm Pipes 50m/min
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG60
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	HG60

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

HG60

Material:

Carbon Steel,stainless Steel,low Alloy Steel

Pipe Diameter:

21 - 63mm

Product Speed:

Max 50m/min

Max.Thickness For Square Pipe:

0.8-3.0mm

Certification:

CE ISO

Worm Gearing:

Max.80m/min

Name:

Tube Mill Machine

Highlight:

High Light

Highlight:

carbon steel tube mill

tube making machine

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

3.5 months

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

70 set per year

Product Description

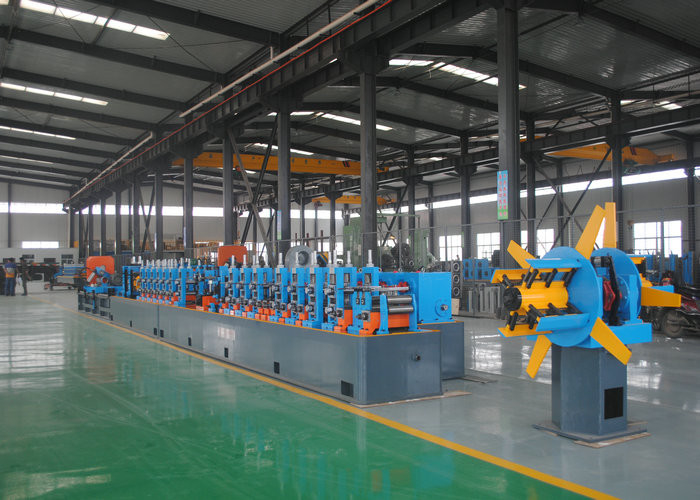

High Frequency Tube Mill Machine - Pipe Making Equipment

Key Specifications

Attribute	Value
Material Compatibility	Carbon steel, stainless steel, low alloy steel
Pipe Diameter Range	21 - 63mm
Maximum Production Speed	50m/min
Max. Thickness for Square Pipe	0.8-3.0mm
Certifications	CE, ISO
Worm Gearing Speed	Max. 80m/min

Product Overview

Hebei Tengtian Welding Pipe Equipment Manufacturing Co., Ltd. is a professional manufacturer specializing in high-frequency welding pipe equipment and open cold-formed steel equipment. Our company integrates scientific research, production, sales, and service to deliver premium quality pipe milling solutions.

Technical Specifications

Model	Diameter (mm)	Thickness (mm)	Speed (m/min)	Main Power (kW)	HF Welder (kW)	Area (m²)
HG32	10-32	0.4-1.5	30-100	250	100	12x100
HG50	12-50	0.6-2.5	30-90	300	150	12x100
HG76	12-76	1-3	30-90	320	200	12x100
HG89	32-89	1-4	30-80	350	300	12x100
HG114	45-114	1.5-5.0	30-60	400	300	12x100
HG165	60-165	3-7	30-50	600	400	12x100
HG219	114-219	4-8	20-40	800	500	15x150
HG273	114-273	4-10	15-30	1000	600	18x160
HG325	165-325	4-10	10-30	1200	600	12x100
HG426	165-426	4-12.7	8-25	1400	800	12x100
HG508	219-508	4-16	8-20	2000	1000	12x100

Company Profile

Our company specializes in the production of high-frequency welded pipe, longitudinal shear, open cold bending section steel, and stainless steel units. Building upon Japanese advanced technology with continuous innovation, our products are manufactured in strict accordance with Japanese standards.

Quality & Service

Product quality and service quality are the core competitiveness of our company. We adhere to the principle of "zero distance, full service" throughout the pre-sale, sale, and after-sale process to ensure complete customer satisfaction.

With a strong technical team and excellent market reputation, our products have been exported to South Korea, Vietnam, Indonesia, South Africa, Kazakhstan, and dozens of other countries and regions, receiving high praise from domestic and international customers.
