Round Api Automatic High Frequency Welded Pipe Mill Large Dia 530 Mm

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE, ISO9001,
Model Number:	630

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE, ISO9001,

Model Number:

630

Product Name:

High Frequency Welded Pipe Mill Round Api Automatic High Frequency Welded Pipe Mill Large Dia 530 Mm

Pipe Diameter:

325mm-530mm

Product Speed:

Max 25m/min

Material:

Carbon Steel,stainless Steel,low Alloy Steel

Cutting Saw:

Friction Saw Cutting

Pipe Thickness:

4.0-9.0mm

After-sales Service Provided:

Commissioning And Training

Voltage:

380V

Key Word:

High Frequency Welded Pipe Mill

Highlight:

High Light

Highlight:

Api Automatic Tube Mill

Dia 530Mm Automatic Tube Mill

Dia 530Mm Welded Pipe Mill

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

5 months

Payment Terms:

L/C,T/T,Western Union,

Supply Ability:

50 set per year

Product Description

Large Dia 530 Mm Round Api Automatic Tube Mill High Frequency Welded Pipe Mill

Large Dia 530 Mm Round Api Automatic Tube Mill High Frequency Welded Pipe Mill Product Information

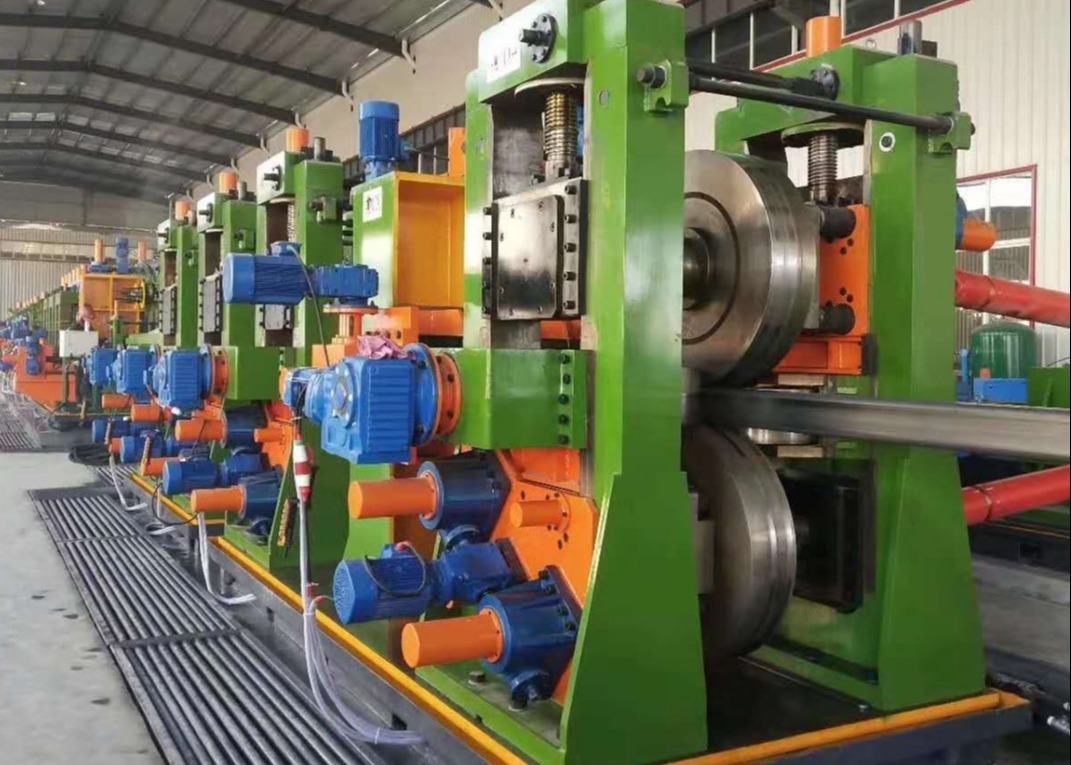

530 High-Frequency Welded Pipe Mill Line is designed to produce round pipe (Diaφ325-530mm, thickness 4-9mm).

Use FFX molding: On this equipment, the most economical and reasonable molding process is used to continuously and smoothly bend into a seamed tube. Due to the special design of the entire roll structure and its adjustment, it can adapt to the forming of all product sizes and specifications without the need to replace rolls.

Material Specifications:

Conforming to the YB189-64 standard

(1)Material: Low carbon steel and low alloy constructional steel

(2)Mechanical properties: σb≤520Mpa,σs≤340MPa

(3)Strip Width: 1020～1665mm

(4)Strip Thickness: 4～9mm

(5)Steel strip coil: Inner Diameter of Coils:φ508～φ760mm

Outer Diameter of Coils:φ1500～φ2100mm

(6)Coil Weight: ≤30T

Main specifications of welding pipe products:

(1)Pipe Size: Round: φ325～φ530mm

(2)Wall Thickness of Pipes: 4～9mm

(3)Fixed Cutting length: 6～12m

(4)Pipe-cutting Precision: ±3mm

Forming Speed : 5～25m/min

Large Dia 530 Mm Round Api Automatic Tube Mill High Frequency Welded Pipe Mill Progress

material(steel coil)→uncoiler→shear and welder→horizontal(or cage) accumulator→forming mill→HF soild welder→sizing mill→rounghly straightening(turkey head)→cut off machine→run out table

Welded Pipe Mill Other Model

Model	Diameter Range	Pipe Thickness	Line Speed(m/min)
HG20	8-25.4MM	0.3-1.2MM	120
HG32	10-32MM	1.4-1.5MM	120
HG50	16-76MM	0.7-2.5MM	30-120
HG76	25-76MM	1-4MM	30-100
HG89	32-89MM	1-4.5MM	30-80
HG114	45-114MM	1.5-5.0MM	30-60
HG165	60-165MM	3-7MM	30-50
HG219	114-219MM	4-8MM	20-40
HG273	114-273MM	4-10MM	15-30
HG325	165-325MM	4-10MM	10-30
HG426	165-426MM	4-12.7MM	8-25
HG508	219-508MM	4-16MM	8-20

Finished Pipe

Round Api Automatic High Frequency Welded Pipe Mill Large Dia 530 Mm 0

Round Api Automatic High Frequency Welded Pipe Mill Large Dia 530 Mm 1

Round Api Automatic High Frequency Welded Pipe Mill Large Dia 530 Mm 2
