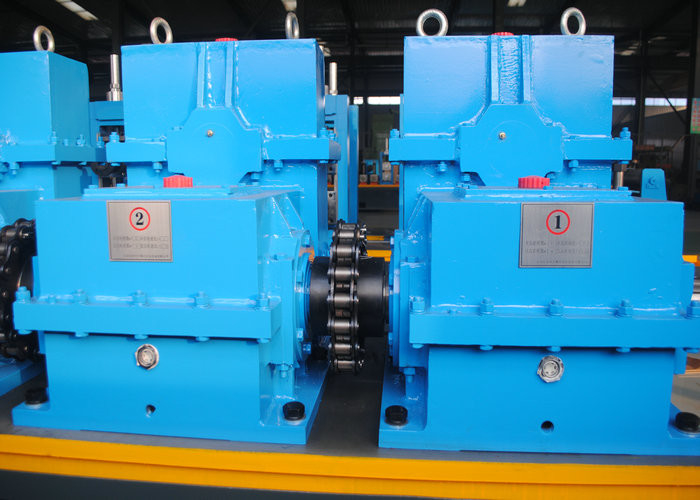

High Frequency Welded Pipe Mill for 21-63mm Round Pipes

The ERW tube mill & pipe mill is a series of machines that builds longitudinal weld seam tubes and pipes with steel strips of certain width. The process includes:

• Uncoiling and flattening steel coils into strips
• Forming strips into round pipe shape via rolling machine
• Welding with high frequency solid state welder
• Sizing to expected dimensions
• Cutting to length and bundling finished pipes

This equipment produces pipes for:

• Petroleum and natural gas pipelines
• City gas distribution networks
• Chemical processing plants
• Power generation facilities
• Structural steel trusses
• Water and gas pressure pipelines

Feed → Uncoil → Straighten → Shear and Buttweld → Loop Storage → Form → HF Welder → IF Anneal → Cool → Size → Cut → Output → End Bevel → Hydraulic Test → Collect

• Uncoiler
• Hoop cage/Horizontal Accumulator
• Forming Machine with Roller System
• Seam Guide
• High Frequency Induction Welding Machine
• Burr Removing Frame (Internal/External)
• Water Cooling System
• Sizing Machine
• Computer-Controlled Auto Flying Saw
• Run Out Table
• Electrical Control Equipment

1. On-site Installation & Training: Our engineers will install the equipment and train your operators
2. Warranty Coverage: 1-year quality guarantee with lifetime repair support
3. Full Service Support: From pre-sale consultation to after-sale maintenance
4. Extended Engineering Support: Option for our engineers to work onsite for months to optimize production
5. Project Design Services: Complete workshop and production line design
6. Logistics Support: We handle all loading and shipping arrangements
