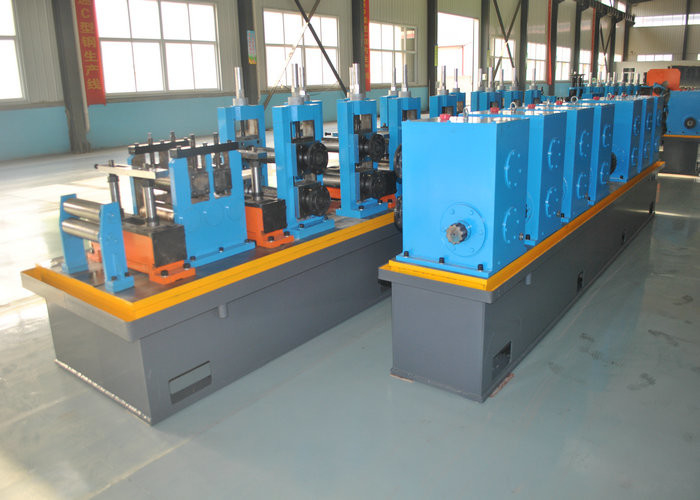

High Frequency Welded Pipe Mill for Round Square Rectangular Metal Pipes

This ERW pipe mill with high frequency solid welder can produce round, square, and rectangular pipes at high speeds. It also manufactures L, T, and Z shaped pipes while reducing roller costs and ensuring finished pipe quality.

• Material (steel coil)
• Uncoiler
• Shear and welder
• Horizontal (or cage) accumulator
• Forming mill
• HF solid welder
• Sizing mill
• Rough straightening (turkey head)
• Cut off machine
• Run out table

• Large diameter roller shafts (42CrMo material) in ample quantity
• Dual motor configuration for enhanced efficiency
• High production efficiency with excellent tube straightness
• High reliability with low failure rate
• User-friendly operation
• Shengyang brand computer saw - top domestic quality
• Premium Chinese brand high frequency welder

The digitally controlled cold cutting machine integrates mechanical, electronic, and hydraulic components. Three-axis control (tracking, cutting feed, and saw blade rotation) is managed by a specialized motion controller with servo motor drive. Parameters are entered via LCD touch screen with real-time monitoring. High-speed steel saw blades enable synchronous operation with the pipe mill line. The CNC system ensures precise cutting speed and position accuracy, with programmable adjustment of cutting head feed and rotation speeds.

• On-site engineer support for installation and operator training
• One-year quality guarantee with lifetime repair support
• Pre-sales services including workshop and production output design
• After-sales support with installation, training, and skilled engineer assistance
• Extended engineer support (months to 1 year) for production optimization
• Complete project design for stainless/carbon steel pipe production
• Full responsibility for loading and shipping arrangements
