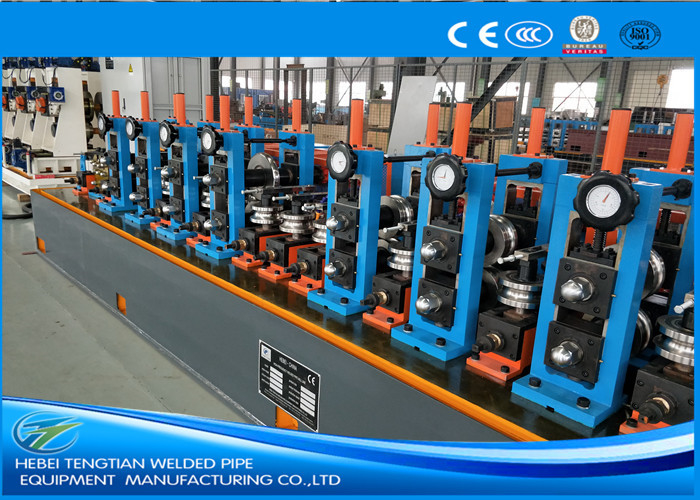

High Frequency Welded Pipe Mill with Friction Saw Cutting

Name: High Frequency Welded Pipe Mill with Friction Saw Cutting
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG38
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	HG38

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

HG38

Product Name:

High Frequency Welded Pipe Mill Friction Saw Cutting SS Tube Mill Machine Worm Gearing Customized Heavy Duty

Adjusting:

Worm Gearing

Running Speed:

Max.120m/min

Pipe Shape:

Round, Square & Rectangular

Pipe Diameter:

12 - 38mm

Max.Thickness For Round Pipe:

0.5-2.0mm

Welding Type:

High Frequency Welding

Cutting Saw:

Friction Saw Cutting

Keywords:

High Frequency Welded Pipe Mill

Highlight:

High Light

Highlight:

Friction Saw Cutting hf tube mill

Worm Gearing hf tube mill

Heavy Duty hf tube mill

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

3 months

Payment Terms:

L/C,T/T

Supply Ability:

50 Sets/Year

Product Description

High Frequency Welded Pipe Mill with Friction Saw Cutting

Product Specifications

Attribute	Value
Adjusting Mechanism	Worm Gearing
Maximum Running Speed	120 m/min
Pipe Shapes	Round, Square & Rectangular
Pipe Diameter Range	12 - 38mm
Maximum Thickness (Round Pipe)	0.5-2.0mm
Welding Type	High Frequency Welding
Cutting Method	Friction Saw Cutting

HG38 High Precision ERW Pipe Mill Machine

This industrial pipe mill manufactures round pipes (Φ12mm-Φ38mm) with wall thicknesses of 0.5mm-2.0mm from cold-rolled and hot-rolled coil strips. The process forms unclosed tubular blanks, welds them using high-frequency technology, then sizes, shapes, and cuts the continuous tube into measured lengths.

Production Process Flow

material(steel coil) → uncoiler → shear and welder → horizontal(or cage) accumulator → forming mill → HF solid welder → sizing mill → roughly straightening(turkey head) → cut off machine → run out table

KJ Series ERW Pipe Mill Capabilities

Manufactures welded steel pipes from Φ7mm-Φ219mm diameter
Handles wall thicknesses from 0.2mm-8.0mm
Produces profiled pipes including square, rectangular, and oval shapes
Incorporates advanced domestic and international pipe-making technology
Economical yet practical production line design

Compatible Raw Materials

Low carbon steel, low alloy steel, galvanized steel, stainless steel, and other compatible metals.
