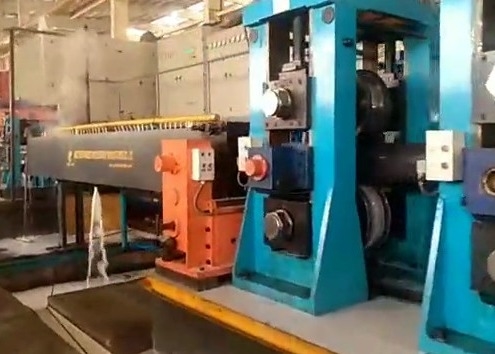

High Frequency Welded Square Tube Mill 60m/Min 1.5mm

Name: High Frequency Welded Square Tube Mill 60m/Min 1.5mm
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG114
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	HG114

Detail Information

Place of Origin:

Hebei，China

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

HG114

Mill Speed:

30-60m/min

Installed Capacity:

800KVA

Thickness Of Round Pipe:

1.5-5.0mm

Thickness Of Square&Rectangular Pipe:

:1.5-4.5mm

Processing Range:Round Pipe:

Φ60-Φ140mm.

Square&Rectangular Pipe:

50x50—110x110

Pipe Shape:

Rectangle,round,square

Material:

Low Alloy Constructional Steel

Highlight:

High Light

Highlight:

60m/min square tube mill

high frequency welded tube mill

1.5mm square tube mill

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

120 work days

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

40 Sets/Year

Product Description

High Frequency Welded 60m/Min 1.5mm Square Tube Mill

Product Attributes

Attribute	Value
Mill speed	30-60m/min
Installed capacity	800KVA
Thickness of Round pipe	1.5-5.0mm
Thickness of Square&Rectangular pipe	1.5-4.5mm
Processing range:Round pipe	Φ60-Φ140mm
Square&Rectangular pipe	50x50—110x110
Pipe shape	Rectangle, round, square
Material	Low alloy constructional steel

Product Description

The HG114 High-Frequency Welded Pipe Production Line is designed to produce welded pipes of 60~140mm in diameter and 1.5~5.0mm in wall thickness as well as square and rectangular pipes and deformed pipes of corresponding sizes. This production line incorporates innovative design and advanced technology, combining domestic and international equipment advantages for convenient operation and maintenance, achieving international leading standards.

Adapt materials: Hot rolled or cold rolled steel strip; Low carbon steel and low alloy constructional steel (δs≤345Mpa, δb≤610Mpa)
Processing steel pipe size range:
- Round pipe: Φ60-Φ140mm (1.5-5.0mm thickness)
- Square & Rectangular pipe: 50x50--110x110 (1.5-4.5mm thickness)
Installed capacity: 800KVA
Water consumption: 50m³/h
Solid-state high-frequency Welder: 300KW or 400KW
Workshop requirements: 50m (L) × 12m (W) × 6m (H)
Forming speed: 40-60m/min

Technical Specifications

Model	Diameter(mm)	Thickness(mm)	Speed(m/min)	Main power(kw)	HF welder(KW)	Area(m²)
HG32	10-32	0.4-1.5	30-100	250	100	12x100
HG50	12-50	0.6-2.5	30-90	300	150	12x100
HG76	12-76	1-3	30-90	320	200	12x100
HG89	32-89	1-4	30-80	350	300	12x100
HG114	45-114	1.5-5.0	30-60	400	300	12x100
HG165	60-165	3-7	30-50	600	400	12x100
HG219	114-219	4-8	20-40	800	500	15x150
HG273	114-273	4-10	15-30	1000	600	18x160
HG325	165-325	4-10	10-30	1200	600	12x100
HG426	165-426	4-12.7	8-25	1400	800	12x100
HG508	219-508	4-16	8-20	2000	1000	12x100
