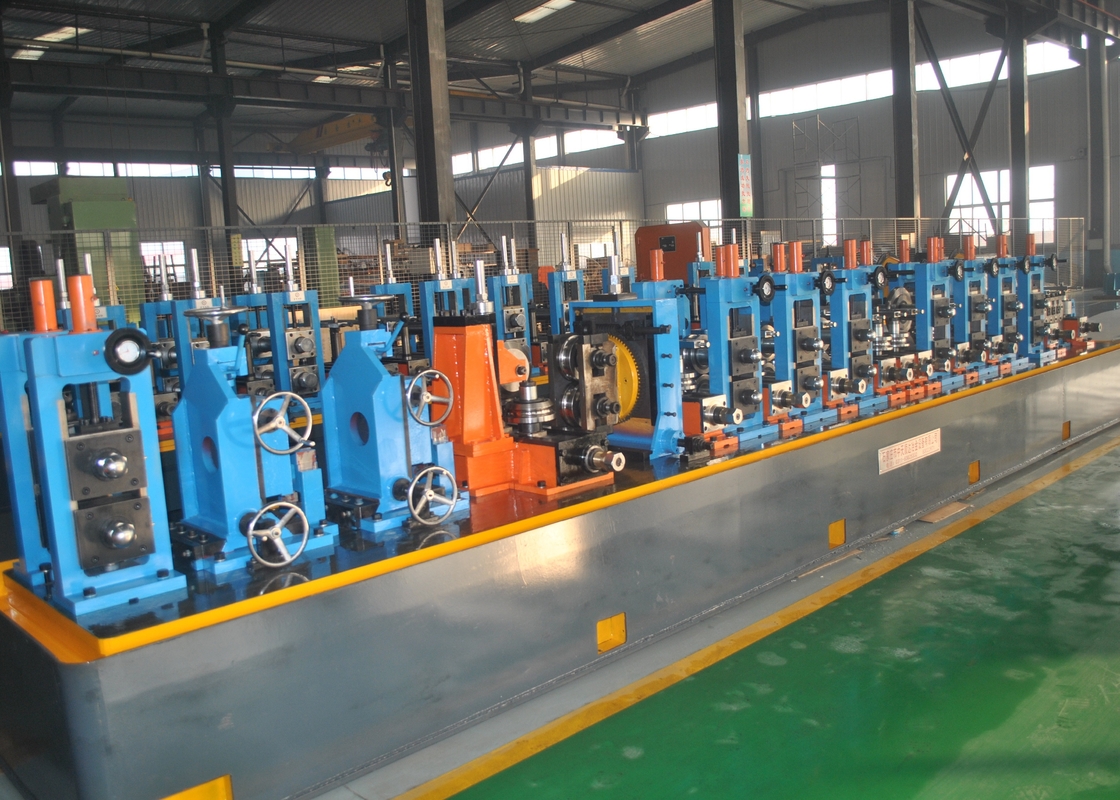

High Frequency Welded Steel Pipe Production Line 120m/min

Name: High Frequency Welded Steel Pipe Production Line 120m/min
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG32
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	Tengtian
Certification:	CE / ISO
Model Number:	HG32

Detail Information

Place of Origin:

China

Brand Name:

Tengtian

Certification:

CE / ISO

Model Number:

HG32

Mill Name:

Carbon Steel 120m/Min 3mm Welded Steel Pipe Productin Line

Welding Type:

High Frequency Welding

Cutting Saw:

Cold Saw & Friction Saw Cutting

Feature:

High Precision; More Stable; High Speed;

Customized:

Machine Designing As Per Customer Requirement

Welding Speed:

30-120m/min

Raw Material:

HRC, CRC, Galvanised Steel

Name:

Welded Pipe Making Machine

Highlight:

High Light

Highlight:

120m/min welded pipe making machine

120m/min steel pipe making machine

3mm welded pipe making machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Special export packing, and fixed in container

Delivery Time:

2 Months - 4 Months

Payment Terms:

T/T,L/C

Supply Ability:

100 Sets/Year

Product Description

Carbon Steel 120m/Min 3mm Welded Steel Pipe Production Line

Key Specifications

Attribute	Value
Welding Type	High Frequency Welding
Cutting Saw	Cold Saw & Friction Saw Cutting
Welding Speed	30-120m/min
Raw Material	HRC, CRC, Galvanised Steel
Customization	Machine Designing As Per Customer Requirement

Product Features

High Precision Welding
Stable Operation
High Production Speed

Material Specifications

Conforms to YB189-64 standard
Material: Low carbon steel and low alloy constructional steel
Mechanical properties: σb≤520Mpa, σs≤365MPa
Strip Width: 40-100mm
Strip Thickness: 0.8-2.0mm
Inner Diameter of Coils: φ480～φ520mm
Outer Diameter of Coils: φ1000～φ1800mm
Coil Weight: ≤2T

Welded Pipe Specifications

Square pipe: 10x10-25x25mm (0.8-2.0mm thickness)
Fixed Cutting length: 4-9m
Pipe-cutting Precision: 0-3mm
Forming Speed: 20-100m/min

Product Gallery

Available Models

Model	Diameter Range	Pipe Thickness	Molding Speed (m/min)	Motor Power (KW)	Mechanical Area (m³)
HG20	8-20MM	0.3-1MM	30-120	55	7×50
HG32	12-32MM	0.3-2.0MM	30-120	75	7×50
HG50	16-50MM	0.8-2.5MM	30-110	110	7×60
HG60	20-60MM	0.8-3MM	30-100	132	7×65
HG76	12-76MM	1-3MM	30-100	320	8×80
HG89	32-89MM	1-4MM	30-80	350	8×80
HG114	45-114MM	1.5-5.0MM	30-60	400	10×100
HG165	60-165MM	3-7MM	30-50	600	10×110
HG219	114-219MM	4-8MM	20-40	800	12×150
HG273	114-273MM	4-10MM	15-30	1000	18×160
HG325	165-325MM	4-12MM	10-30	1200	18×180
HG426	165-426MM	4-16MM	8-25	1400	18×180
HG508	219-508MM	4-20MM	8-20	2000	21×180

Our Services

On-site installation and operator training by our engineers
One year quality guarantee with lifetime repair service
Comprehensive pre-sale and after-sale support including:
- Workshop and production output design
- Installation and training services
- Skilled engineer support
Option for extended engineer support (several months to 1 year) to optimize production
Complete project design for stainless steel/carbon steel pipe production
Responsible for loading and shipping arrangements
