High Precision Automatic Tube Mill for 50x50-100x100mm Welded Pipes

Name: High Precision Automatic Tube Mill for 50x50-100x100mm Welded Pipes
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG 127
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	HG 127

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE ISO9000 BV

Model Number:

HG 127

Production Name:

High Precision Welded Pipe Production Line Automatic Tube Mill

Feature:

Fast Speed And High Precision

Other Pipe:

Round Pipe And Square Pipe

Max Size:

50 X 50 - 100 X 100 Mm

Thickness:

1 . 5 - 4 . 0 Mm

Length:

4 - 12 M

Rollers:

Include

Warranty:

One Year

Key Words:

High Precision Welded Pipe Production Line Automatic Tube Mill

Highlight:

High Light

Highlight:

20 x 20 automatic tube mill

fast speed automatic tube mill

precision tube mill line

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

100 wording days

Payment Terms:

L/C,D/A,D/P,T/T

Supply Ability:

5 set/year

Product Description

50 X 50 - 100 X 100 Mm High Precision Welded Pipe Production Line Automatic Tube Mill

Product Specifications

Attribute	Value
Production Name	High Precision Welded Pipe Production Line Automatic Tube Mill
Feature	Fast Speed and high precision
Other pipe	round pipe and square pipe
Max size	50 x 50 - 100 x 100 mm
Thickness	1.5 - 4.0 mm
Length	4 - 12 m
Rollers	include
Warranty	one year

Automatic 50 X 50 -100 X 100 Mm High Speed Welded Pipe Production Line

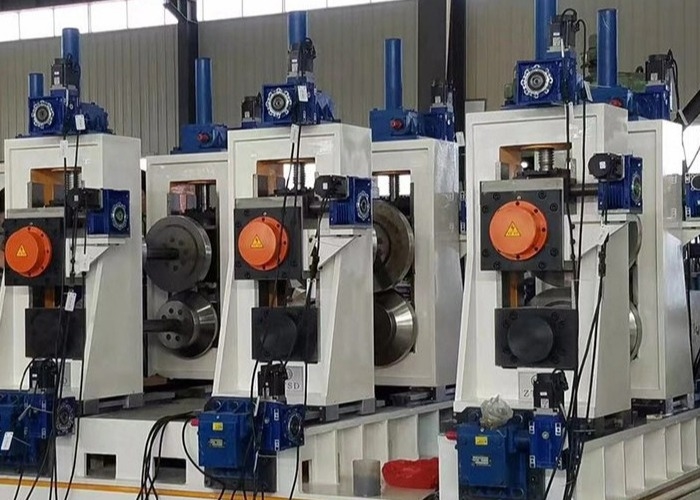

Machine General Introduction

The HG127 high frequency welded pipe mill line is designed for manufacturing welded steel pipes. Incorporating advanced pipe making technology from both domestic and international sources, our innovative production line offers an economical yet practical solution for pipe production.

Square pipe size: 50 x 50 - 100 x 100 mm | Pipe thickness: 1.5 - 4.0 mm

Main Parameters and Specifications

Material Specifications:

Material	low carbon steel galvanize and carbon steel tube
Mechanical properties	σb≤520Mpa, σs≤365MPa
Strip width	200 - 400 mm
Strip thickness	1.5 - 4.0 mm
I.D of Coils	Φ 508 - 610 mm
O.D of Coils	φ 2000 mm
Coil Weight	≤ 10T

Welded Pipe Specification

Square Pipe Diameter	Φ 50 x 50 - φ 100 x 100 mm
Pipe thickness	1.5 - 4.0 mm
Finish pipe length	4 - 12 m
Cut length accuracy	± 3 mm
Forming speed	15 - 60 m/min

Workshop Requirements

100 m X 6 m, at least 5m high

Note: Can be modified according to the actual length of the workshop

Equipment Composition

Double cone hydraulic uncoiler
Straight head and pinch leveling machine
Shear and welder
Horizontal accumulator
Forming and Sizing Mill
Cold saw
Run out table
Automatic stacking machine
400Kw High Frequency Welder
Rollers

Quality and After-sale Service Warranty

Upon equipment arrival, our technical service personnel will provide on-site debugging, maintenance, and commissioning services. We offer comprehensive training for equipment operation and maintenance personnel.

When used according to specifications under normal operating conditions, the equipment comes with a 12-month warranty from the date of arrival. In case of quality issues that prevent normal operation due to manufacturing defects, we provide free repair or replacement of parts.
