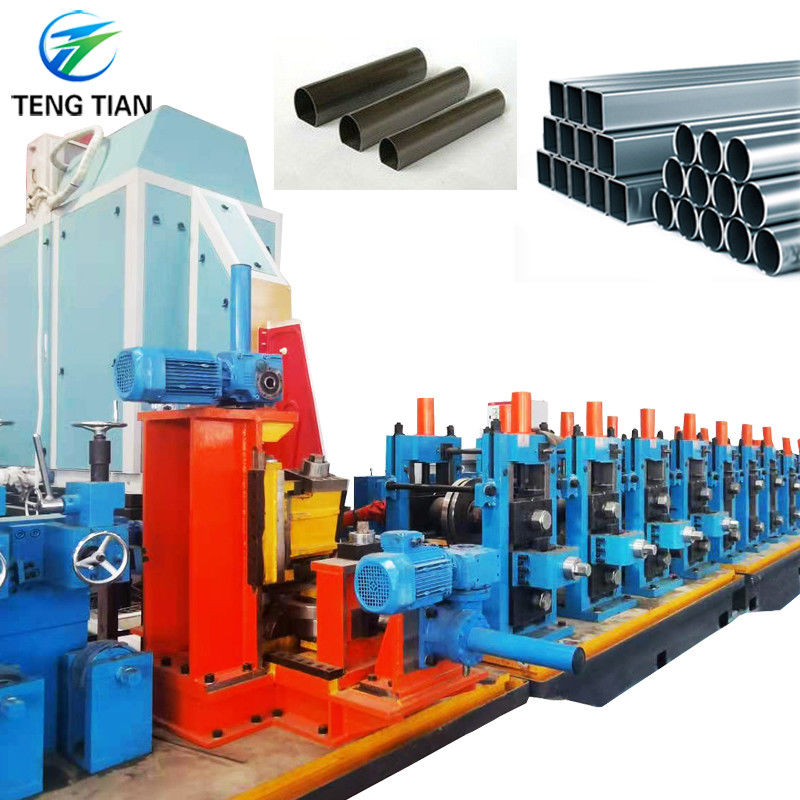

High Precision Custom Steel Tube Making Machine for Various Pipe Shapes

Product Details:

Place of Origin:	HEBEI，CHINA
Brand Name:	TENG TIAN
Certification:	CE / ISO9001 / BV
Model Number:	HG

Detail Information

Place of Origin:

HEBEI，CHINA

Brand Name:

TENG TIAN

Certification:

CE / ISO9001 / BV

Model Number:

Product Name:

High Precision Customized Steel Tube Making Machine For Different Pipe Shape

Forming Method:

Roller Mill

Forming Method:

Roller Mill

Thickness:

1.5-5.0mm

Thickness:

1.5-5.0mm

Accuracy Rating:

High Precision

Cutting:

Cold Saw

Colour:

Blue

Weight:

10T

Tile Type:

Colored Steel, Steel Forming Machine

Control System:

PLC, Totally Automatic, PLC And Touch Screen

Power(w):

660KW

Key Word:

Customized Steel Tube Making Machine For Different Pipe Shape

Highlight:

High Light

Highlight:

Customized Steel Tube Making Machine

High Precision Steel Tube Making Machine

Different Shape steel pipe manufacturing machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Special export packing, and fixed in container

Delivery Time:

60 workind days

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

100 Sets / year

Product Description

High Precision Customized Steel Tube Making Machine For Different Pipe Shape

Product Specifications

Attribute	Value
Product Name	High Precision Customized Steel Tube Making Machine For Different Pipe Shape
Forming Method	Roller Mill
Thickness	1.5-5.0mm
Accuracy Rating	High Precision
Cutting	Cold Saw
Colour	Blue
Weight	10T
Tile Type	Colored Steel, Steel Forming Machine
Control System	PLC, Totally Automatic, PLC and touch screen
Power	660KW

Production Process

This customized steel tube making machine meets closed round, square, and rectangular pipe production requirements. Using hot rolled strip steel as raw material, it produces various specifications of open cold bend steel, square, rectangular, and round pipes through cold bending forming and high frequency welding.

The unit features advanced multipoint combined bending technology for rectangular pipes and FFX forming technology for round pipes, resulting in:

90% reduction in roll replacement costs
30% reduction in energy consumption
2.3-2.5% savings in strip width

Control System

The machine includes complete equipment with individual control workstations for uncoiling, leveling, shearing, welding, forming, sizing, and cutting operations. The PLC-controlled system ensures stable operation with emergency stop functionality throughout the production line.

Technical Specifications

Processing range: 200X200-400X400

Thickness: 8-16mm

Installed capacity: 2000KVA

Solid-state high-frequency Welder: 1200KW or 1600KW

Forming speed: 90m/min

Service & Support

On-site installation and operator training by our engineers
One year quality guarantee with lifetime repair support
Pre-sale services including workshop and production output design
Post-sale technical support and engineering assistance
Option for extended engineer support (months to 1 year)
Complete project design services for stainless/carbon steel pipe production
Full loading and shipping responsibility

Frequently Asked Questions

Are you manufacturer or trading company?

We are manufacturer with more than 20 years experience.

What is the max size of pipe you have even produce?

Maximum φ630mm.

Can I visit your customer machine line?

Yes, with prior customer agreement.

What is your machine advantages?

Full automation, direct square forming, shared rollers, and fast change system.

How I can get the quotation?

Please send your pipe size and thickness requirements.
