High Precision ERW Tube Mill for 32-89mm Carbon Steel Pipes

Name: High Precision ERW Tube Mill for 32-89mm Carbon Steel Pipes
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG89
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	Tengtian
Certification:	CE,ISO9001, BV
Model Number:	HG89

Detail Information

Place of Origin:

China

Brand Name:

Tengtian

Certification:

CE,ISO9001, BV

Model Number:

HG89

Product:

High Precision Steel Tube Mill Erw Welded Pipe Making Machinery

Keyword:

Welding Pipe Unit ERW

Material:

Carbon Steel Galvanized

Diameter:

32-89 Mm

Thickness:

1-4.5mm

Speed:

30-80 M/min

HF:

300KW

Area:

16x100 ㎡

Keyword:

Precision Tube Mill

Highlight:

High Light

Highlight:

High Precision Pipe Making Machinery

High Precision Steel Tube Mill

Erw precision tube mill

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

plastic film winding, wooded case for electric components

Delivery Time:

90 days

Supply Ability:

26 Line of Year

Product Description

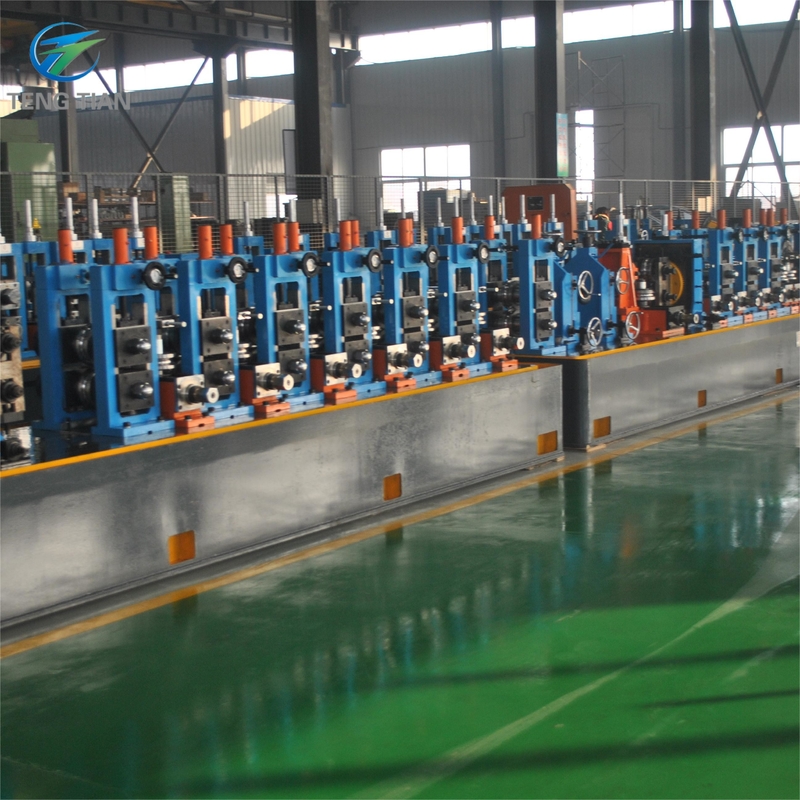

High Precision Steel Tube Mill ERW Welded Pipe Making Machinery

Product Specifications

Attribute	Value
Material	Carbon Steel Galvanized
Diameter	32-89 mm
Thickness	1-4.5mm
Speed	30-80 m/min
HF Power	300KW
Area Requirement	16x100 ㎡

Key Features

High-accuracy pipe production with precision engineering
Capable of producing pipes with diameters from 32-89mm
Handles material thicknesses from 1-4.5mm
High frequency welding (300KW) for strong, consistent welds
Production speed of 30-80 meters per minute
Compact footprint of 40m(L) × 3m(W) × 2m(H)
1-year warranty on core components (engine, gearbox, motor, gear)
Professional after-sales service with engineer support

Technical Details

Type	Pipe Production Line
Pipe Material	Carbon Steel, Stainless Steel, Alloy Steel
Application	Energy Supply Pipe
Voltage	380V
Weight	20000kg
Pipe Length	6-12m
Welding Method	High Frequency Welding

Production Process Flow

Material (steel coil) → Uncoiler → Pinching and Leveling → Shear and Welder → Horizontal Accumulator → Forming Mill → HF Solid Welder → External Burr Removing → IF Annealing → Heat Treatment → Air Cooling → Water Cooling → Sizing Mill → Rough Straightening (Turkey Head) → Cut Off Machine → Run Out Table
