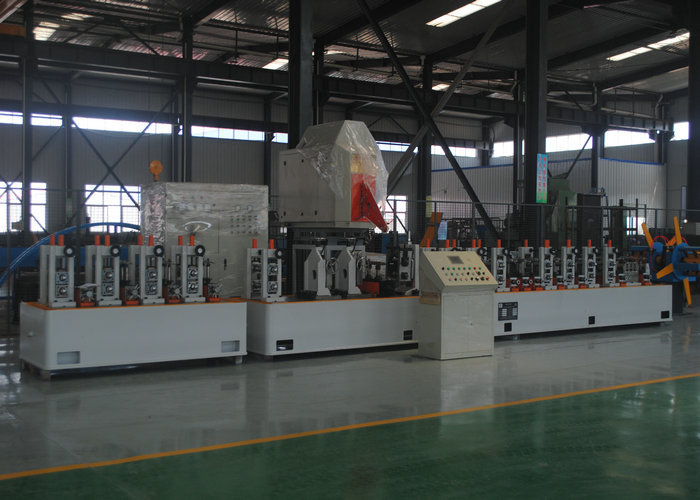

High Precision Tube Mill for Round Square Rectangular Pipes

Name: High Precision Tube Mill for Round Square Rectangular Pipes
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG60
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE,ISO9001,BV
Model Number:	HG60

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE,ISO9001,BV

Model Number:

HG60

Product Name:

High Precision Tube Mill , Pipe Making Machine CRC/ Galvanised Steel Material

Adjustment Type:

By Turbine Worm

Cutting Saw:

Cold Saw & Friction Saw Cutting

Pipe Shape:

Round,square,rectangular

Welding Type:

High Frequency Welding

Keywords:

Precision Tube Mill

Highlight:

High Light

Highlight:

ss tube mill machine

pipe milling machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

60 work days

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

30 Sets/Year

Product Description

High Precision Tube Mill, Pipe Making Machine for CRC/Galvanized Steel Material

Product Overview

The HG273 mill is designed for manufacturing round pipes (Φ114mm-Φ273mm) with thickness of 4.0mm-10mm from cold-rolled and hot-rolled coil strips. The process includes forming unclosed tubular blanks, high-frequency welding, cooling, sizing/shaping, and cutting to measured lengths.

Key Features

Adjustment type: By turbine worm
Cutting Saw: Cold Saw & Friction Saw Cutting
Pipe shapes: Round, square, rectangular
Welding Type: High Frequency Welding
Exceptional precision: Between level roller jumps 0.01mm
Frame vertical degree ≤0.05, each frame parallel degree ≤0.1mm
Steel pipe diameter and roundness error ≤0.08mm

Production Process

Material (steel coil) → Uncoiler → Shear and welder → Horizontal (or cage) accumulator → Forming mill → HF solid welder → Sizing mill → Roughly straightening (turkey head) → Cut off machine → Run out table

Technical Specifications

Parameter	Value
Stands of forming mill	7
Stands of sizing mill	5
Shaft material	40Cr
Round pipe diameter	19-76mm
Round pipe thickness	1.5-3.0mm
Square pipe size	15×15-60×60mm
Square pipe thickness	1.5-2.0mm

Customization: We can design the machine according to customer requirements.

Available Models

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
HG20	8-25.4MM	0.3-1.2MM	120
HG32	10-32MM	1.4-1.5MM	120
HG50	16-76MM	0.7-2.5MM	30-120
HG76	25-76MM	1-4MM	30-100
HG89	32-89MM	1-4.5MM	30-80
HG114	45-114MM	1.5-5.0MM	30-60
HG165	60-165MM	3-7MM	30-50
HG219	114-219MM	4-8MM	20-40
HG273	114-273MM	4-10MM	15-30
HG325	165-325MM	4-10MM	10-30
HG426	165-426MM	4-12.7MM	8-25
HG508	219-508MM	4-16MM	8-20

Compatible Materials: Low carbon steel, low alloy steel, galvanized steel, stainless steel, etc.

Our Service

On-site engineer for installation and worker training
One year quality guarantee with life guarantee repair
Pre-sell service: Workshop design and production output design
After-sell service: Installation, training, and skilled engineer support
Option for extended engineer support (several months to 1 year)
Complete project design for stainless steel/carbon steel pipe making
