High Speed 80m/Min Automatic Tube Mill for 19-60mm Square Pipes

Product Details:

Place of Origin:	CHINA
Brand Name:	TENGTIAN
Certification:	ISO9001.BV,CE
Model Number:	76

Detail Information

Place of Origin:

CHINA

Brand Name:

TENGTIAN

Certification:

ISO9001.BV,CE

Model Number:

Production Name:

High Speed 80m/Min Square Size 19*19～60*60mm Energy Efficiency Blue Automatic Tube Machine Line

Application:

Natural Gas,Drain Pipe,3 NB Tube Production

Voltage:

380V/220V

Pipe Diameter:

16-63mm

Thickness:

1-3.5mm

Speed:

20-80m/min

Key Words:

Blue Automatic Tube Machine Line

Highlight:

High Light

Highlight:

Automatic Tube Mill 80m/Min

60*60mm Automatic Tube Mill

60*60mm Tube Mill Line

Trading Information

Minimum Order Quantity:

1SET

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

100 working days

Payment Terms:

L/C,T/T,Western Union,MoneyGram

Supply Ability:

50 Sets/Year

Product Description

Square Size 19*19～60*60mm Automatic Tube Mill Line High Speed 80m/Min

Product Specifications

Attribute	Value
Production Name	High Speed 80m/Min Square Size 1919～6060mm Energy Efficiency Blue Automatic Tube Machine Line
Application	Natural gas, Drain Pipe, 3 NB Tube Production
Voltage	380V/220V
Pipe diameter	16-63mm
Thickness	1-3.5mm
Speed	20-80m/min

Product Description

High Speed 80m/Min Square Size 19*19～60*60mm Energy Efficiency Blue Automatic Tube Machine Line

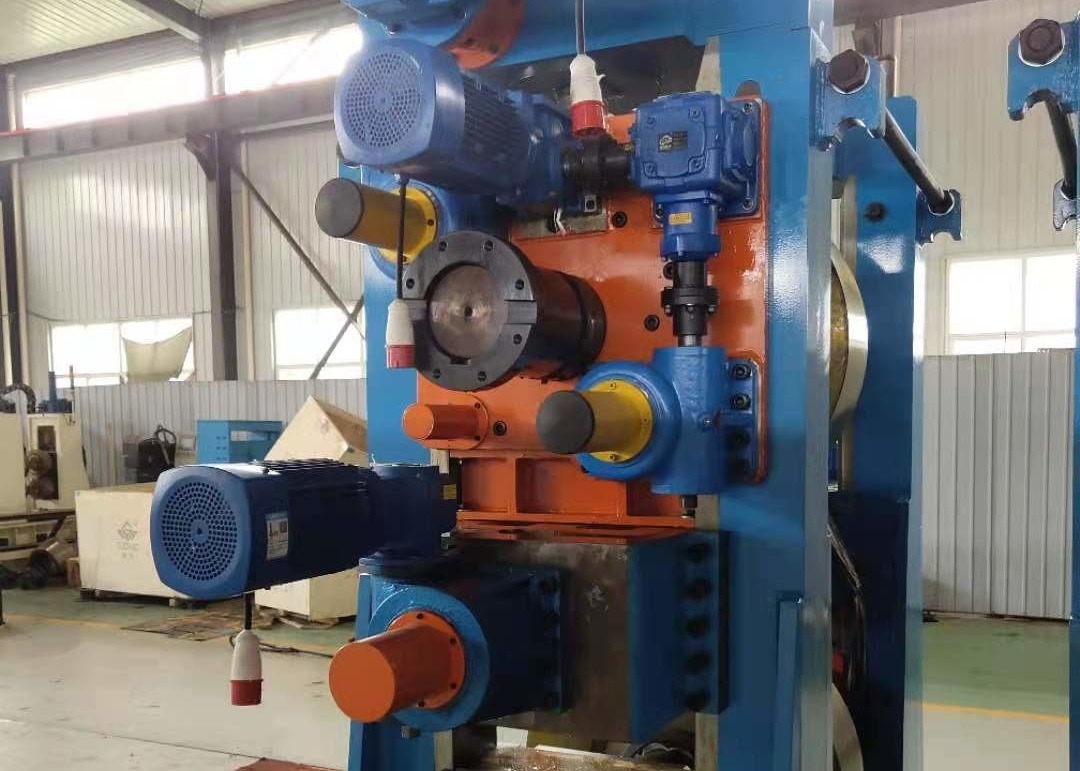

The HG89 High-Frequency Welded Pipe Mill Line is designed to produce round pipes (φ16~φ63mm), square pipes (19*19~60*60mm), and rectangular pipes (40*20~100*50mm). Featuring advanced roll pass design, this production line manufactures welded steel pipes with superior quality machining and high precision assembly.

Technical Specifications

Material Specifications

Standard	Conforming to the YB189-64 standard
Material	Low carbon steel and low alloy constructional steel
Mechanical properties	σb≤380Mpa, σs≤275MPa
Strip width	50～240mm
Strip thickness	0.4～2.75mm
I.D of Coils	Φ508mm
O.D of Coils	φ1800mm
Coil Weight	≤3.0T

Tube Mill Machine Pipe Specification

Round Pipe Diameter	φ16～φ63mm
Pipe thickness	0.4-2.75mm
Finish pipe length	4-6m
Cut length accuracy	±2mm
Forming speed	20-80m/min

Power, Water & Air Supply

Power Volume	Approx. 600KW
Power Source	380V/60Hz/3phases
Circulation Cooling Water Flow	20T/h～30 T/h
Pool Volume	30m3
Compressed Air Flow	5m3/min
Pressure	5～11kg/cm2

Workshop Requirements

6m wide, 70m long, with at least 5m clearance from ceiling rails to ground.

Our Service

On-site engineer support for installation and operator training
One year quality guarantee with lifetime repair service
Comprehensive pre-sale and after-sale support including workshop design and production output planning
Option for extended engineer support (several months to 1 year) to optimize output and reduce costs
Complete project design services for stainless steel and carbon steel pipe production
Full responsibility for loading and shipping arrangements
