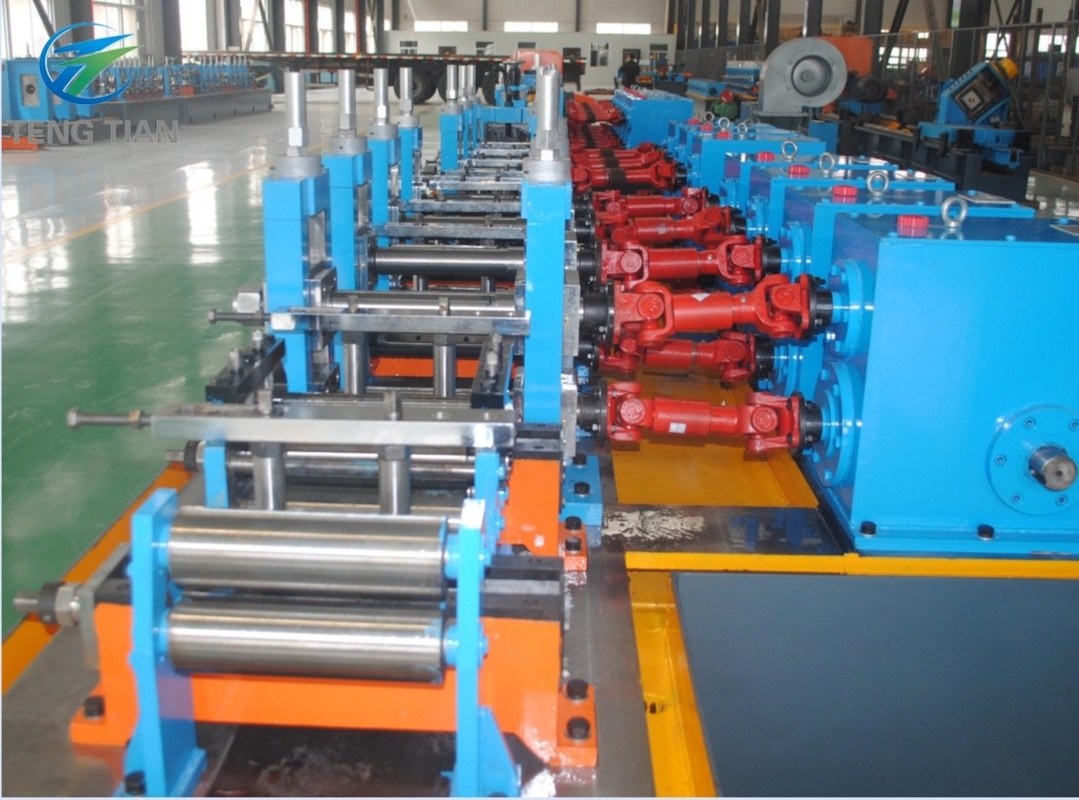

High Speed Pipe Mill Machine 100m/min 22-60mm Diameter

Name: High Speed Pipe Mill Machine 100m/min 22-60mm Diameter
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG60
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE,ISO9001,BV
Model Number:	HG60

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE,ISO9001,BV

Model Number:

HG60

Product Name:

High Speed Pipe Mill Machine 100m / Min Without Burr Flying Saw Cutting

Thickness:

0.9-3.0mm

Diameter:

22-60mm

Speed:

100 M/MIN

Feature:

High Speed

Cutting Accuracy:

≤±3 Mm

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Keyword:

High Speed Pipe Mill Machine

Highlight:

High Light

Highlight:

tube milling machine

steel pipe making machine

steel pipe manufacturing machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

150 work days

Payment Terms:

L/C,T/T

Supply Ability:

50 Sets/Year

Product Description

High Speed Pipe Mill Machine 100m/Min Without Burr Flying Saw Cutting

Product Specifications

Attribute	Value
Thickness	0.9-3.0mm
Diameter	22-60mm
Speed	100 M/MIN
Feature	High Speed
Cutting Accuracy	≤±3 mm
After-sales Service	Engineers available to service machinery overseas

Product Overview

HeBei TengTian is a recognized pioneer in welded seam tube mill manufacturing in China. We offer standard tube mills for common product sizes as well as specialized equipment covering a wide diameter range of metal tubes and pipes - from 3/16" (4.76mm) O.D. cold stretch reducing mills to 28" OD cage mills.

Our mills can be equipped with high-frequency induction or contact welders, DC and AC Square Wave Welding (ERW) to meet various welding requirements.

Key Features

High precision pipe making with advanced W, FFX, FF forming method
German Roll forming design for superior performance
Stable operation with high yield
Fully automated process with simple operation
Continuous production capability
High efficiency with minimal material waste
Low production cost

Production Process

Step 1 - Coils: Carbon steel coils prepared for processing

Step 2 - Uncoiler: Coil placed on the uncoiler

Step 3 - Leveler: Coil stock is leveled

Step 4 - Butt Welding: Connects coils for uninterrupted forming

Step 5 - Mill: Rolls form flat steel into pipe

Step 6 - Mill Rollers: Forms steel into specified size

Step 7 - Welder: Electric Resistance Welder finishes the pipe

Step 8 - Scarfer: Smooths the pipe seam

Step 9 - Saw: Cuts pipe to specified length

Step 10 - Collecting: Pipes collected for packing

Available Models

No.	Model	Pipe Size	Thickness	Speed(m/min)	Capacity(KW)	HF(KW)	Area(LxW)
1	HG20	ø8 - ø20 mm	0.3 - 1.5 mm	30 - 150	210	100	40*12
2	HG32	ø10 - ø32 mm	0.4 - 2.0 mm	30 - 150	300	150	40*12
3	HG50	ø16 - ø50 mm	0.7 -2.5 mm	30 - 150	410	200	60*12
4	HG60	ø22 - ø60 mm	0.9 - 3.0 mm	30 - 150	410	200	60*12
5	HG76	Ø25 - ø76 mm	1 - 4 mm	30 - 120	580	300	80*16
6	HG89	Ø32 - ø89 mm	1 - 4.5 mm	30 - 100	660	300	100*16
7	HG114	Ø45 - ø114 mm	1.5 -5 mm	30 - 80	920	400	100*16
8	HG140	Ø50 - ø140 mm	1.5 - 5.5 mm	30 - 80	920	400	100*16
9	HG165	Ø60 - ø165 mm	2 - 6 mm	30 - 60	1100	500	100*16
10	HG219	Ø114 - ø219mm	3 - 8 mm	20 - 45	1400	600	150*16
11	HG273	Ø114 - ø273mm	4 - 12 mm	15 - 30	2100	800	160*18
12	HG325	Ø165 - ø325 mm	4 - 14 mm	10 - 30	2500	1000	200*24
13	HG426	Ø165 - ø426 mm	4 - 16 mm	8 - 25	2900	1200	250*24
14	HG508	Ø219 - ø508 mm	5 - 18 mm	5 - 18	3400	1600	300*24
15	HG610	Ø355 - ø610 mm	5 - 18 mm	5 - 18	3700	1600	300*24
16	HG760	Ø426 - ø760 mm	5 - 20 mm	5 - 20	4300	1800	300*24

Reference Image
