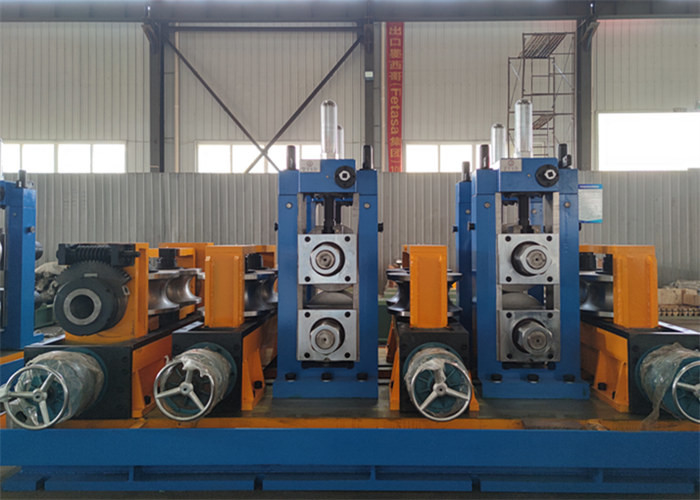

Precision Pipe Roller Mill Machine with Servo Motor 10-50mm

Name: Precision Pipe Roller Mill Machine with Servo Motor 10-50mm
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG50
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE ISO
Model Number:	HG50

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE ISO

Model Number:

HG50

Product Name:

Pipe Precision Roller Mill Machine And Tube Saw Servo Motor

Special Require:

Can Design According To The Customer

Material:

Steel Pipe,stainless Pipe

Product Speed:

Max 90m/min

Pipe Diameter:

10-50mm

Keyword:

Pipe Mill Machine

Highlight:

High Light

Highlight:

tube milling machine

steel pipe making machine

steel pipe manufacturing machine

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

packed in seaworthy material

Delivery Time:

one month

Supply Ability:

200 set per year

Product Description

Pipe Precision Roller Mill Machine And Tube Saw Servo Motor

Product Specifications

Attribute	Value
Product Name	Pipe Precision Roller Mill Machine And Tube Saw Servo Motor
Special Requirements	Can design according to customer specifications
Material Compatibility	Steel pipe, stainless pipe
Product Speed	Max 90m/min
Pipe Diameter Range	10-50mm

Key Features

Long-term high-speed operation with precision and low fault rate
Easy operation and maintenance
Durable construction with excellent performance characteristics

Technical Parameters

Cutting Length: 0.5-32m (adjustable)
Cutting Precision: ±3mm
Max Cutting Frequency: 10 cuts per minute
Max Speed: 50m/min
Max Pipe Thickness: 6mm
Saw Head Action: Hydraulic Drive (Flat-pushing Manipulation)
Pipe Clamp: Hydraulic Clamping

Advanced Features

Automated sawing for tubes inline/offline with high production capacity
High Speed Steel or Carbide Tipped Blades
YASKAWA/SIEMENS servo motor with premium brand electrical components
Compatible with various tube profiles
Eliminates need for secondary chamfering or de-burring
Handles Carbon Steels, Stainless Steels, and HSLA materials
High precision cutting with excellent edge quality and no burrs

Control System

Welded body with mechanical parts assembly and imported hydraulic system
Industrial touch screen interface with simple English menu
High-precision, multifunctional with high automation level
PLC control system for all machine actions
Mitsubishi servomotor-driven feed system for accurate and steady operation
Linear Guide Rails with lubrication and vertical slideway cutting
Special-designed clamping method minimizes deformation, ideal for thin and stainless pipes
Robust design ensures low vibration and noise during long operation periods
Automatic water cooling system for smooth cutting surfaces and extended blade life
Integrated cutting scrap treatment system with easy maintenance

Model Specifications

Model	Diameter Range	Thickness Range	Max. Speed	Motor	Saw Blade Dia.	Clamping Type
CS-32	12~38mm	0.4~2.0mm	120	YASKAWA/SIEMEMS	350mm	Pneumatic
CS-50	20~63.5mm	0.6~2.0mm	100	YASKAWA/SIEMEMS	400mm	Pneumatic/Hydraulic
CS-60	25~76mm	0.8~3.0mm	80	YASKAWA/SIEMEMS	450mm	Pneumatic/Hydraulic
CS-76	25~76mm	0.8~4.0mm	80	YASKAWA/SIEMEMS	450mm	Hydraulic
CS-114	50~114mm	1.2~5.0mm	60	YASKAWA/SIEMEMS	600mm	Hydraulic

Note: Specifications are reference values based on general ranges. We customize each machine according to customer requirements.

Our Services

On-site installation and operator training by our engineers
One year quality guarantee with lifetime repair service
Pre-sales service including workshop and production output design
After-sales service including installation, training, and technical support
Option for extended engineer support to improve output and reduce costs
Complete project design for stainless steel/carbon steel pipe production
Full responsibility for loading and shipping
