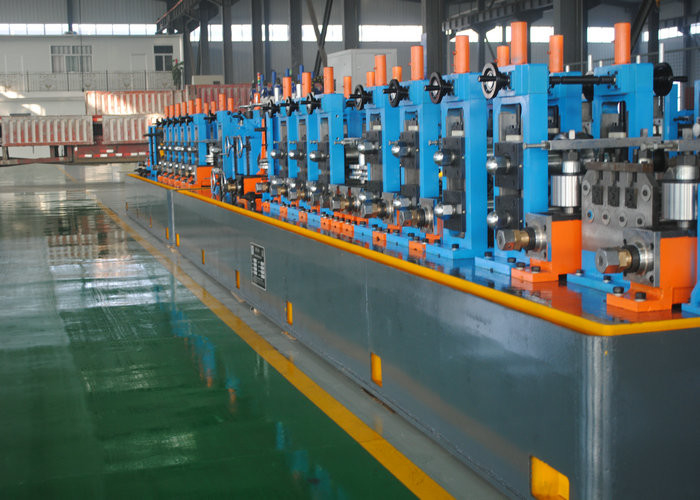

Precision Tube Mill for 25-76mm Pipes with High Frequency Welding

Supports rolled plate and strip tension for steel tube machine, consisting of frame, main shaft, increases of drum, and brake.

Types: Pneumatic, hydraulic, and manual.

Shears the end of each strip coil and welds them together for continuous production.

Types: Automatic & manual.

Stores strip to maintain continuous production.

Advantages: Easy operation, low investment. Ideal for small size and light wall pipes.

Disadvantages: Limited storage capacity, potential for creases.

Alternative strip storage solution for continuous production.

Advantages: Large capacity.

Disadvantages: More expensive than vertical type.

Forms the tube from strip material.

• Advanced forming technology
• One-stage molding platform
• Reliable quality gear box
• Siemens Beide motor

Welds the pipe with power adjusted for different thicknesses and diameters.

Our Advantage: Uses China's best welder - Sanyi brand.

Precisely sizes the tube to specifications.

• Advanced sizing technology
• One-stage molding platform
• Reliable quality gear box and Siemens Beide motor
• High precision with minimal size error

Flying Saw:

• Advantages: Easy operation, low investment
• Disadvantages: Loud operation, cutting section generates burr

Cold Saw Cutting:

• Advantages: No noise, no burr, precise cutting
• Disadvantages: Approximately 4 times the cost of ordinary flying saw

Material: Standard Cr12 / SKD11

We select the most appropriate molds for our ERW tube making machine to optimize your investment.

KJ Series Straight Seam High Frequency Steel ERW pipe mill lines manufacture welded steel pipes with diameter range from Φ7mm-Φ219mm and wall thickness range 0.2mm-8.0mm.

These mills can also produce profiled pipes including square, rectangular, and oval pipes within round pipe processing limits.

Our innovative production line combines economical design with practical functionality, incorporating advanced pipe making technology from domestic and international sources.

Low carbon steel, low alloy steel, galvanized steel, stainless steel, and similar materials.

• On-site engineer for machine installation and worker training
• One year quality guarantee with lifetime repair service
• Free repair parts during warranty period (excluding human error)
• Pre-sale services including workshop design and production output planning
• After-sale services including installation, training, and skilled engineer support
• Option for extended engineer support (several months to 1 year) to improve output and reduce waste
• Complete project design services for stainless steel and carbon steel pipe production
• Responsible for loading and shipping arrangements
