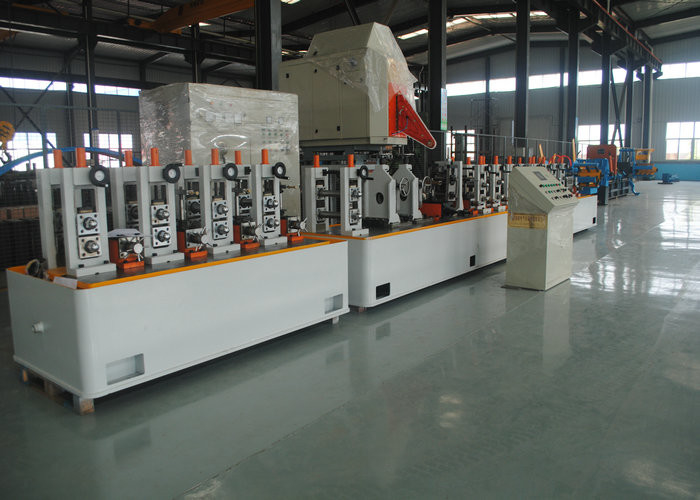

Precision Tube Mill Professional Precision Tube Mill Small Diameter 40Cr Shaft CE BV Listed
Product Attributes
| Attribute |
Value |
| Product name |
Precision Tube Mill Professional Precision Tube Mill Small Diameter 40Cr Shaft CE BV Listed |
| Material |
HRC, CRC, Galvanised Steel |
| Pipe diameter |
25-76mm |
| Welding Type |
High Frequency Welding |
| Pipe shape |
Round, square, rectangular |
| Adjustment type |
By turbine worm |
| Keywords |
Precision Tube Mill |
Product Description
The HG273 mill is used to manufacture round pipe of Φ114mm-Φ273mm with thickness of 4.0mm-10mm from cold-rolled and hot-rolled coil strip by means of unclosed tubular blank with its subsequent welding into tube, edge heating by means of solid state high-frequency welder, longitudinal seam welding in rolls of tube welding machine, cooling, further sizing or shaping and on-stream cutting of endless tube in measured lengths.
The High precision tube mill has some advantages as follow:
- Between level roller jumps 0.01, between frame and slide clearance ≤0.02mm
- Frame vertical degree ≤0.05, each frame parallel degree ≤0.1mm
- Steel pipe diameter and roundness error≤0.08mm
Product Process
material(steel coil) → uncoiler → shear and welder → horizontal(or cage) accumulator → forming mill → HF solid welder → sizing mill → roughly straightening(turkey head) → cut off machine → run out table
Basic Parameters
| Stands of forming mill |
7 |
| Stands of sizing mill |
5 |
| Shaft material |
40Cr |
| Round pipe diameter |
19-76mm |
| Round pipe thickness |
1.5-3.0mm |
| Square pipe size |
15×15-60×60mm |
| Square pipe thickness |
1.5-2.0mm |
We can design the machine according to the customer's detailed requirements.
ERW Tube Mill Other Models
| Model |
Diameter Range |
Pipe Thickness |
Line Speed (m/min) |
| HG20 |
8-25.4MM |
0.3-1.2MM |
120 |
| HG32 |
10-32MM |
1.4-1.5MM |
120 |
| HG50 |
16-76MM |
0.7-2.5MM |
30-120 |
| HG76 |
25-76MM |
1-4MM |
30-100 |
| HG89 |
32-89MM |
1-4.5MM |
30-80 |
| HG114 |
45-114MM |
1.5-5.0MM |
30-60 |
| HG165 |
60-165MM |
3-7MM |
30-50 |
| HG219 |
114-219MM |
4-8MM |
20-40 |
| HG273 |
114-273MM |
4-10MM |
15-30 |
| HG325 |
165-325MM |
4-10MM |
10-30 |
| HG426 |
165-426MM |
4-12.7MM |
8-25 |
| HG508 |
219-508MM |
4-16MM |
8-20 |
Applied raw materials: Low carbon steel, low alloy steel, galvanized steel, stainless steel, etc.
About Us
More>>
Our Customers
Our Services
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service. pre-sell service: workshop design, and production output design after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping.
