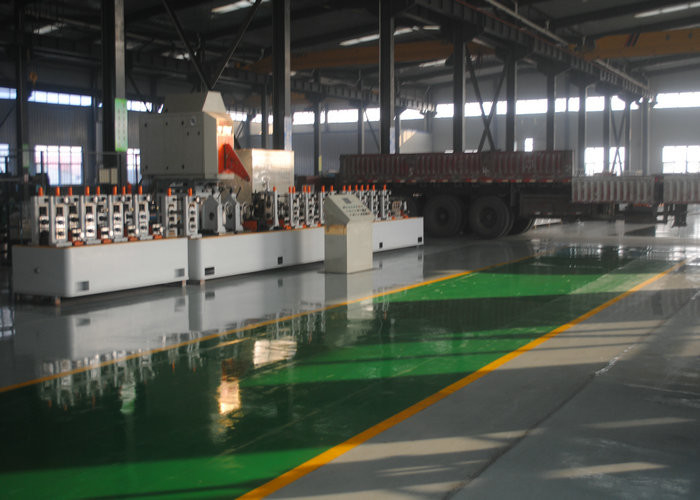

Precision Tube Mill for 25-76mm Pipes with High Frequency Welding

Name: Precision Tube Mill for 25-76mm Pipes with High Frequency Welding
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG60
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE,ISO9001,BV
Model Number:	HG60

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE,ISO9001,BV

Model Number:

HG60

Product Name:

Precision Tube Mill High Speed Precision Tube Mill Fully Automation 25-76mm Pipe Dia

Material:

HRC,CRC,Galvanised Steel

Pipe Diamete:

25-76mm

Welding Type:

High Frequency Welding

Pipe Shape:

Round,square,rectangular

Adjustment Type:

By Turbine Worm

Keywords:

Precision Tube Mill

Highlight:

High Light

Highlight:

ss tube mill machine

pipe milling machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

90 work days/Year

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

100 Sets

Product Description

Precision Tube Mill High Speed Precision Tube Mill Fully Automation 25-76mm Pipe Dia

Product Specifications

Attribute	Value
Product Name	Precision Tube Mill High Speed Precision Tube Mill Fully Automation 25-76mm Pipe Dia
Material	HRC, CRC, Galvanised Steel
Pipe diameter	25-76mm
Welding Type	High Frequency Welding
Pipe shape	Round, square, rectangular
Adjustment type	By turbine worm

Production Process

Step 1: Uncoiler - Supports rolled plate and strip tension for ERW pipe mill production line. Available in pneumatic, hydraulic, and manual types.
Step 2: Shearing butt welding - Shears the end of each strip coil and welds them together for continuous production. Available in automatic and manual types.
Step 3: Strip Accumulator - Stores strip to maintain continuous production. Horizontal type offers larger storage while vertical type is more economical and space-saving.
Step 4: Forming Section - Shapes the material into the desired pipe form.

Complete Production Flow

Material (steel coil) → Uncoiler → Shear and welder → Horizontal (or cage) accumulator → Forming mill → HF solid welder → Sizing mill → Roughly straightening (turkey head) → Cut off machine → Run out table

We can design the machine according to customer's specific requirements.

ERW Tube Mill Models

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
HG20	8-25.4MM	0.3-1.2MM	120
HG32	10-32MM	1.4-1.5MM	120
HG50	16-76MM	0.7-2.5MM	30-120
HG76	25-76MM	1-4MM	30-100
HG89	32-89MM	1-4.5MM	30-80
HG114	45-114MM	1.5-5.0MM	30-60
HG165	60-165MM	3-7MM	30-50
HG219	114-219MM	4-8MM	20-40
HG273	114-273MM	4-10MM	15-30
HG325	165-325MM	4-10MM	10-30
HG426	165-426MM	4-12.7MM	8-25
HG508	219-508MM	4-16MM	8-20

Compatible Materials: Low carbon steel, low alloy steel, galvanized steel, stainless steel, etc.
