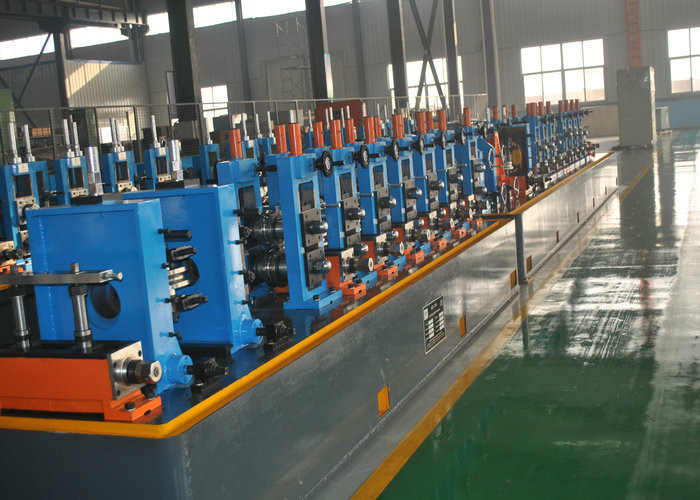

Precision Tube Mill for Carbon Steel Pipes 280-700mm Width

Name: Precision Tube Mill for Carbon Steel Pipes 280-700mm Width
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG60
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE,ISO9001,BV
Model Number:	HG60

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE,ISO9001,BV

Model Number:

HG60

Product Name:

Precision Tube Mill Carbon Steel Tube Welding Line , Steel Pipe Making Machine 280~700mm Width

Adjustment Type:

By Turbine Worm

Cutting Saw:

Cold Saw & Friction Saw Cutting

Pipe Shape:

Round,square,rectangular

Welding Type:

High Frequency Welding

Keywords:

Precision Tube Mill

Highlight:

High Light

Highlight:

pipe milling machine

industrial tube mills

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

60 work days

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

30 Sets/Year

Product Description

Precision Tube Mill Carbon Steel Tube Welding Line

Product Specifications

Adjustment Type	By turbine worm
Cutting Saw	Cold Saw & Friction Saw Cutting
Pipe Shape	Round, square, rectangular
Welding Type	High Frequency Welding

Manufacturing Process Flow

uncoiling → shearing and butt welding → material accumulating → flattening → forming system → high frequency induction welding machine → inside and outside burr removing frame → water cooling system → sizing system → leveling system → speed testing → Turkish frame → saw cutting → running out table

Main Components

Uncoiler
Accumulator
Shearing and butt welding machine
Forming machine
Roller System of Forming
Seam Guide
High Frequency Induction Welding Machine
Roller System for Moving
Burr Removing Frame (Inside and outside)
Water cooling system
Sizing machine
Roller System of Leveling
Speed Testing Wheel
Turkish Frame
Auto flying saw controlled by Computer
Run-out table
Electric control Equipment
High frequency welding machine

Material Requirements

Steel Strips Material	Low-carbon steel, low alloy steel: σs≤345mpa, σb≤610mpa
I.D	Φ700~Φ800mm
O.D	Φ1000~1600mm
Width	280~700mm
Thickness	4.0-8.0mm
Maximum Weight	≤10000KGS

ERW Tube Mill Models

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
HG20	8-25.4MM	0.3-1.2MM	120
HG32	10-32MM	1.4-1.5MM	120
HG50	16-76MM	0.7-2.5MM	30-120
HG76	25-76MM	1-4MM	30-100
HG89	32-89MM	1-4.5MM	30-80
HG114	45-114MM	1.5-5.0MM	30-60
HG165	60-165MM	3-7MM	30-50
HG219	114-219MM	4-8MM	20-40
HG273	114-273MM	4-10MM	15-30
HG325	165-325MM	4-10MM	10-30
HG426	165-426MM	4-12.7MM	8-25
HG508	219-508MM	4-16MM	8-20

HG50 High Precision Tube Mill Specifications

Material: carbon steel, alloy steel
Mechanical properties: σB≤520mpa; σS≤340mpa
Coil ID: φ470-φ510mm
Coil OD: φ900-φ1800mm
Coil weight: ≤3 tons
Width: 40-200mm
Installed capacity: approx. 350KW
Compressed air capacity: 2m3/min 4-7Kg/cm2
Water consumption: 20tons/hr
Water consumption for high frequency: 30tons/hr
Workshop requirements: height (5M min) x width (8M) x length (50M min). Two sets of 5 tons overhead crane recommended.

Our Service

Installation & Training: We will send engineers for installation and train your workers in proper machine operation.
Warranty: One year quality guarantee with lifetime repair service. Free repair parts during warranty period (excluding human error). After warranty, only spare parts cost applies.
Pre-sale Service: Workshop design and production output planning.
After-sale Service: Installation, training, and skilled engineer support.
Extended Support: Engineers available for several months to one year to help improve output, reduce waste, and decrease costs.
Project Design: Complete project design for stainless steel/carbon steel pipe production.
