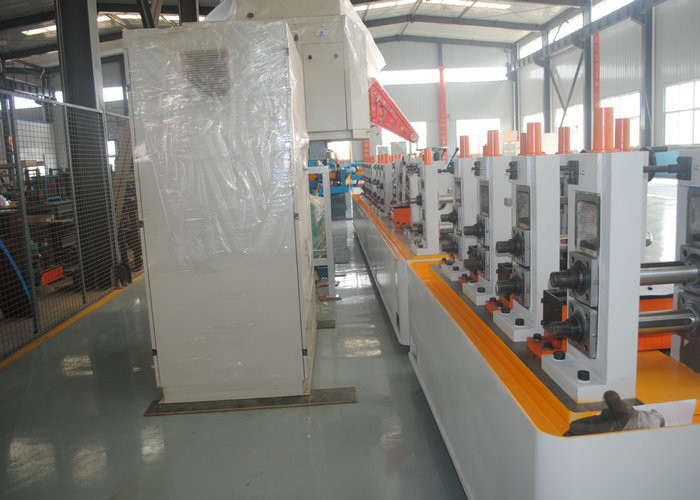

Precision Tube Mill for Round Square Rectangular Pipes 25-76mm

Name: Precision Tube Mill for Round Square Rectangular Pipes 25-76mm
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG50
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE,ISO9001,BV
Model Number:	HG50

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE,ISO9001,BV

Model Number:

HG50

Product Name:

Precision Tube Mill Round Pipe Shape Steel Precision Tube Mill Machine High Frequency Welding

Cutting Saw:

Cold Saw & Friction Saw Cutting

Thickness:

1.0-3.0mm

Pipe Diameter:

25-76mm

Pipe Shape:

Round,square,rectangular

Mill Speed:

30-100m/min

Adjustment Type:

By Turbine Worm

Keywords:

Precision Tube Mill

Highlight:

High Light

Highlight:

ss tube mill machine

pipe milling machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

90 work days

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

50 Sets/Year

Product Description

Precision Tube Mill Round Pipe Shape Steel Precision Tube Mill Machine High Frequency Welding

Key Specifications

Attribute	Value
Cutting Saw	Cold Saw & Friction Saw Cutting
Thickness	1.0-3.0mm
Pipe diameter	25-76mm
Pipe shape	Round, square, rectangular
Mill speed	30-100m/min
Adjustment type	By turbine worm

Detailed Specifications

Parameter	Value
Steel pipe specification (Round pipe)	Φ32-Φ76mm
Thickness	1.0-4.0 mm
Length scope of the pipe	6-12 m
Tolerance	±3 mm
Strip steel coil inner diameter	Φ610mm-Φ760mm
Strip steel coil outside diameter	Φ1200mm-Φ2000mm
Material	Q195-Q235, Q345

Production Process

material(steel coil)->uncoiler->shear and welder->horizontal(or cage) accumulator->forming mill-> HF soild welder->sizing mill->rounghly straightening(turkey head)->cut off machine->run out table

Basic Parameters

Stands of forming mill	7
Stands of sizing mill	5
Shaft material	40Cr
Round pipe diameter	19-76mm
Round pipe thickness	1.5-3.0mm
Square pipe size	15×15-60×60mm
Square pipe thickness	1.5-2.0mm

ERW Tube Mill Models

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
HG20	8-25.4MM	0.3-1.2MM	120
HG32	10-32MM	1.4-1.5MM	120
HG50	16-76MM	0.7-2.5MM	30-120
HG76	25-76MM	1-4MM	30-100
HG89	32-89MM	1-4.5MM	30-80
HG114	45-114MM	1.5-5.0MM	30-60

Product Overview

KJ Series Straight Seam High Frequency Steel ERW pipe mill lines manufacture welded steel pipes with diameter range from Φ7mm-Φ219mm and wall thickness range 0.2mm-8.0mm. They can also produce profiled pipes including square, rectangular, and oval pipes.

Our Services

On-site installation and operator training by our engineers
One year quality guarantee with life guarantee repair
Pre-sell services including workshop and production output design
After-sell services including installation, training, and technical support
Option for extended engineer support to improve output and reduce waste
Complete project design for stainless steel/carbon steel pipe making
Responsible for loading and shipping

Customization

We can design the machine according to customer's specific requirements.
