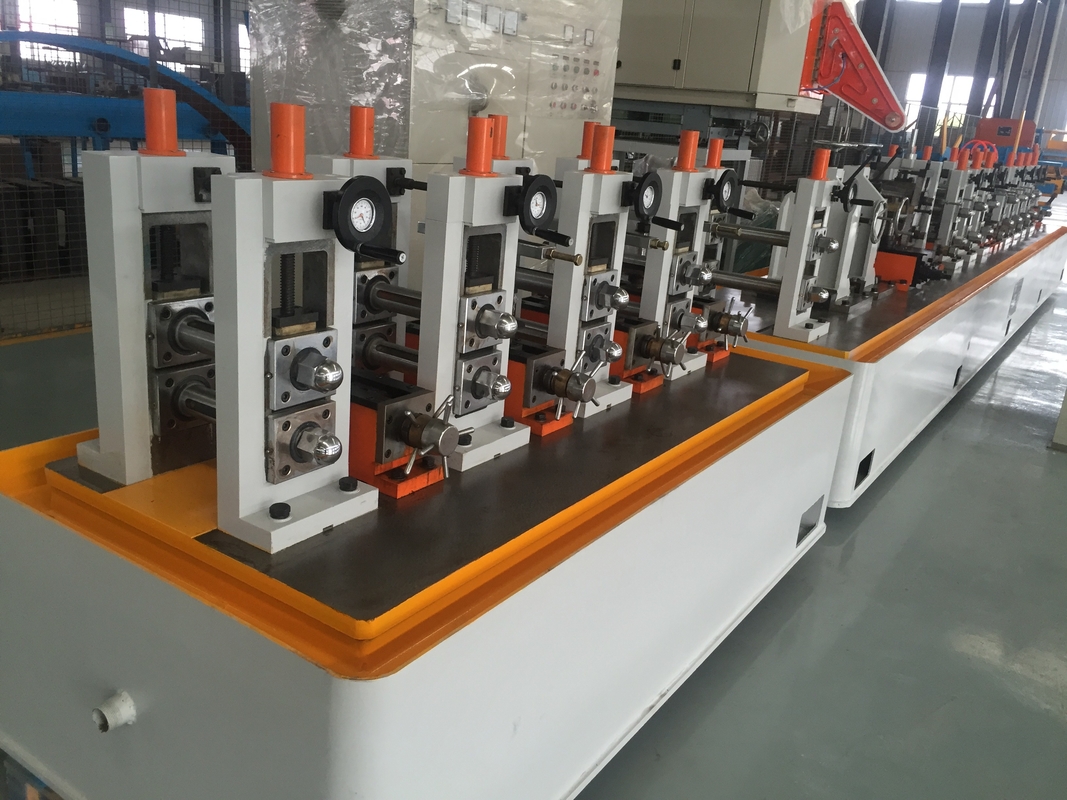

Precision Tube Mill Machine for Steel Pipe Making 25-76mm

Name: Precision Tube Mill Machine for Steel Pipe Making 25-76mm
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG60
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE,ISO9001,BV
Model Number:	HG60

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE,ISO9001,BV

Model Number:

HG60

Product Name:

Precision Tube Mill Super High Precision Tube Mill Machine For Steel Pipe Making , Long Life

Material:

HRC,CRC,Galvanised Steel

Pipe Diameter:

25-76mm

Welding Type:

High Frequency Welding

Pipe Shape:

Round,square,rectangular

Adjustment Type:

By Turbine Worm

Cutting Saw:

Cold Saw & Friction Saw Cutting

Keywords:

Precision Tube Mill

Highlight:

High Light

Highlight:

pipe milling machine

industrial tube mills

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

60 work days

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

30 Sets/Year

Product Description

Precision Tube Mill Super High Precision Tube Mill Machine For Steel Pipe Making

Product Specifications

Attribute	Value
Material	HRC, CRC, Galvanised Steel
Pipe diameter	25-76mm
Welding Type	High Frequency Welding
Pipe shape	Round, square, rectangular
Adjustment type	By turbine worm
Cutting Saw	Cold Saw & Friction Saw Cutting

Product Description

Our High Precision Tube Mill is a state-of-the-art steel pipe making machine designed for longevity and superior performance. The system includes:

Coiler car and decoiler
Peeler and straightener
Pinch and leveling machine
Side guide unit
End shear and butt-welding machine
Edge miller
Plate cleaning unit (optional)
Main drive system
Pre-bend unit
Forming machine
Internal and external welding units
Cut off unit

High frequency welding technology: Utilizes 10-500KHz high frequency current to create resistance heat for precise metal binding, with or without applied pressure.

Model Specifications

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
HG20	8-25.4MM	0.3-1.2MM	120
HG32	10-32MM	1.4-1.5MM	120
HG50	16-76MM	0.7-2.5MM	30-120
HG76	25-76MM	1-4MM	30-100
HG89	32-89MM	1-4.5MM	30-80
HG114	45-114MM	1.5-5.0MM	30-60
HG165	60-165MM	3-7MM	30-50
HG219	114-219MM	4-8MM	20-40
HG273	114-273MM	4-10MM	15-30
HG325	165-325MM	4-10MM	10-30
HG426	165-426MM	4-12.7MM	8-25
HG508	219-508MM	4-16MM	8-20

ERW Pipe Mill Overview

Our KJ Series Straight Seam High Frequency Steel ERW pipe mill lines manufacture welded steel pipes with:

Diameter range: Φ7mm-Φ219mm
Wall thickness range: 0.2mm-8.0mm
Capability to produce profiled pipes (square, rectangular, oval)

Combining advanced domestic and international pipe making technology, our innovative production line offers both economic and practical solutions.

Compatible Materials

Low carbon steel, low alloy steel, galvanized steel, stainless steel, and other compatible materials.
