Round / Rectangular ERW Steel Pipe Production Line Worm Gearing Friction Saw Cutting

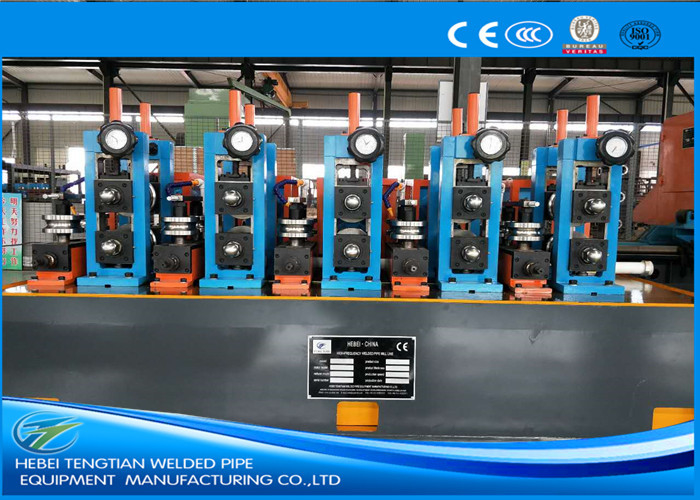

Large Image : Round / Rectangular ERW Steel Pipe Production Line Worm Gearing Friction Saw Cutting

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	2.5 inch

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	$100000 to $1 million
Packaging Details:	Export waterproof and Seaworthy packing.
Delivery Time:	60 work days
Payment Terms:	L/C, T/T
Supply Ability:	50 Sets/Year

Contact Now

Detailed Product Description

Mill Name:	Round / Rectangular ERW Steel Pipe Production Line Worm Gearing Friction Saw Cutting	Adjustment Type:	Worm Gearing
Running Speed:	Max.120m/min	Pipe Shape:	Round, Square & Rectangular
Pipe Diameter:	19-60.3mm	Welding Type:	High Frequency Welding
Cutting Saw:	Cold Saw & Friction Saw Cutting	Max.Thickness For Round Pipe:	0.6-3.0mm
Highlight:	steel pipe mill , steel tube production line

Round / Rectangular ERW Steel Pipe Production Line Worm Gearing Friction Saw Cutting

Round / Rectangular ERW Steel Pipe Production Line Worm Gearing Friction Saw Cutting Equipment description

2.5 inch high speed ERW Pipe Mill Line is used to produce building materials pipe, which is widely used for building material,drain and energy supply pipe.building and decoration profiles , extruded profiles , building profiles ,cold bending profiles , etc.

Production Process

Scroll up → Uncoil → Flattening → End Shear & Butt Welding → Accumulator → Forming → High-frequency induction welding→ Removing external burr → Cooling → Sizing → Cutting → Checking & Collecting → Accessing Warehouse

Specifications:

1. Raw Material: HRC, CRC, Galvanised Coil

2. Production Range:

Round Pipe: 19 - 60.3mm; Thickness: 0.6-3.0mm

Square Pipe: 15*15 - 50*50mm; Thickness: 0.6-2.5mm

Rectangular: 15*20 - 40*60mm; Thickness: 0.6-2.5mm

3. H.F. Welder: GGP200Kw Solid State High Frequency Welder

4. Line Spees: Max. 120m/min

5. Tube Length: 4-12m

6. Cutting Accuracy: ±3mm
