Stable Square Tube Mill 200x200mm High Frequency Welding

Name: Stable Square Tube Mill 200x200mm High Frequency Welding
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: ZD200X200
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE,ISO9001,BV
Model Number:	ZD200X200

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE,ISO9001,BV

Model Number:

ZD200X200

Mill Name:

Stable Square Tube Mill Pipe Making Electric Control Square Shape 80m / Min Mill Speed

Voltage:

220/380/415/420/440V

Mill Speed:

30-80m/min

Warranty:

1 Year

Tube Size:

100x100-200x200mm

Thickness:

2.0-10.0mm

Welding Type:

High Frequency Welding

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Highlight:

High Light

Highlight:

square pipe making machine

stainless steel pipe mill

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

150 work days

Payment Terms:

L/C,T/T

Supply Ability:

10 Sets/Year

Product Description

Stable Square Tube Mill Pipe Making Electric Control Square Shape 80m / Min Mill Speed

Attribute	Value
Mill Name	Stable Square Tube Mill Pipe Making Electric Control Square Shape 80m / Min Mill Speed
Voltage	220/380/415/420/440V
Mill speed	30-80m/min
Warranty	1 Year
Tube size	100x100-200x200mm
Thickness	2.0-10.0mm
Welding Type	High Frequency Welding
After-sales Service	Engineers available to service machinery overseas

Equipment Description

200x200mm Full automatic high speed High precision square tube mill line is the first full-automatic pipe making machine in China to meet international market requirements. Developed by combining our LW series unit with FF forming technology, this automatic square and rectangular tube equipment can produce various specifications of opening cold bend steel, including U and C section steel, with infinitely adjustable width and height.

Main Characteristics

Quick roller adjustment completion in minimal time
Easy adjustment for producing different tube specifications
Reduced workforce requirements and labor costs
Extended equipment service life
Individual machine repair capability

Machine Components

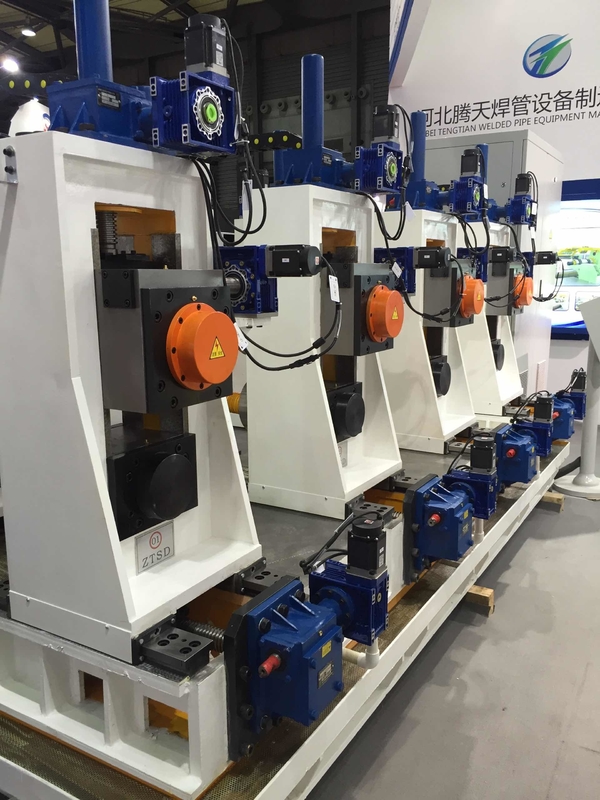

Forming parts: Seven horizontal roll stands, four empty curving stands, four vertical roll racks, and one feeding rack
Welding parts: Five extruding rollers, two scraping scar racks, and one polish rack
Sharping parts: Four four-roller racks
Electric control: Multipoint PLC control system

Production Process

Scroll up
Uncoil
Flattening
End Shear & Butt Welding
Accumulator
Forming
High-frequency induction welding
Removing external burr
Cooling
Sizing
Cutting
Checking & Collecting
Accessing Warehouse

Technical Specifications

Raw materials: Low carbon steel and low alloy constructional steel, σb≤580Mpa σs≤380Mpa

Steel strip width: 320-800mm

Steel strip thickness: 3.0-12.7 mm

Steel strip inner diameter: φ480-580mm

Steel strip outer diameter: φ800-1800mm

Steel coil weight (Max): 12t

Raw material steel grade: Q195-Q345, SPHC

Quality standards: Mainly GB standards, parts with JIS, DIN

Main product specifications:

Square pipe: 80×80--200×200mm (any size in range)

Rectangular: 80×120-120×280mm (any size in range)

Wall Thickness: 3.0-12.7mm

Length: 4-12m

Unit feed direction: Left or right (face the operate side)

Rolling line elevation: +900mm

Forming speed: 10-40m/min

Main motor: Frequency conversion motor 22KW×2 Each stand times
