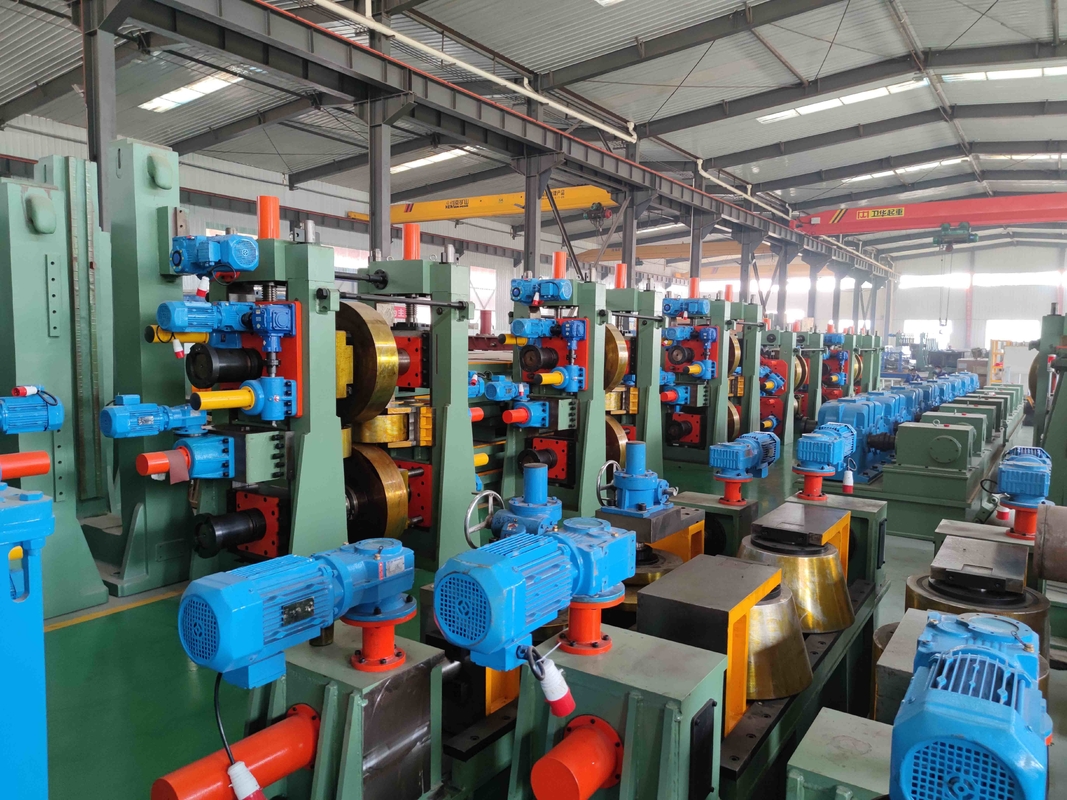

Straight Seam Welded Pipe Mill 1550mm Coil Width API 5L

Name: Straight Seam Welded Pipe Mill 1550mm Coil Width API 5L
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: LX1550-14(X70)-2540mm
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	CHINA
Brand Name:	Teng Tian
Certification:	CE / ISO9001
Model Number:	LX1550-14(X70)-2540mm

Detail Information

Place of Origin:

CHINA

Brand Name:

Teng Tian

Certification:

CE / ISO9001

Model Number:

LX1550-14(X70)-2540mm

Product Name:

Straight Seam Welded Pipe Mill Steel Pipe Making Machine 1550 Mm Coil Width

Application:

Construction; Oil And Gas; Water Supply

After-sales Servive:

Engineers Available To Service Machinery Overseas

Coil Width:

1550 Mm

Thickness:

Max.14mm

Material:

HRC

Colour:

Up To The Customers

Standard:

API 5L

Max. Steel Grade:

Up To X70

Keywords:

Straight Seam Welded Pipe Mill

Highlight:

High Light

Highlight:

seamless pipe mill

welded pipe production line

Trading Information

Minimum Order Quantity:

1 SET

Price:

$100000 to $1 million

Packaging Details:

Exporting Standard packing, and fixed in container

Delivery Time:

6 MONTHS

Payment Terms:

T/T,L/C

Supply Ability:

20 SETS / YEAR

Product Description

Straight Seam Welded Pipe Mill Steel Pipe Making Machine 1550 Mm Coil Width

Product Specifications

Attribute	Value
Application	Construction; Oil and Gas; Water Supply
After-sales Service	Engineers available to service machinery overseas
Coil Width	1550 mm
Thickness	Max. 14mm
Material	HRC
Standard	API 5L
Max. Steel Grade	Up to X70

Product Description

This straight seam welded pipe mill is designed for producing high-quality steel pipes from low carbon steel/low alloy steel strips through a precise forming and welding process.

Key Applications

Liquid delivery: Water supply & drainage systems
Gas delivery: Coal gas, steam and LPG transportation
Structural use: Piling pipes, bridge construction, dock infrastructure, road building, and general construction

Production Process

The complete manufacturing process includes:

Feeding → Uncoiling → Leveling → Shearing & butt welding
Rotary shear → Edge milling → Main drive → Pre-bend & guide board
Forming → Inside welding → Outside welding → Cutting off
Pull out → End-facing & beveling → Hydrotesting → Collection

Technical Specifications

Series	Min Pipe O.D. (mm)	Max Pipe O.D. (mm)	Min Thickness (mm)	Max Thickness (mm)	Coil Width (mm)	Max Production (ton/year)	Area (m²)
LX600	219-508	325-820	2-4	4-10	400-600	8000-12000	20×96
LX800	219-508	406-1220	2-4	4-12	400-800	9000-17000	20×96
LX1050	219-508	630-1620	2-4	4-14	450-1050	16000-23000	24×108
LX1250	406-610	820-1620	3-6	8-18	500-1250	26000-35000	24×108
LX1550	406-610	1420-3200+	3-6	12-25.4+	500-1550	36000-76000	26×125
LH2000	406-610	2020-3200+	4-6	20-25.4+	1000-2000	77000-93000	-

Keywords

Straight Seam Welded Pipe Mill Steel Pipe Making Machine 1550 mm Coil Width
