Steel Tube Making Machine
>

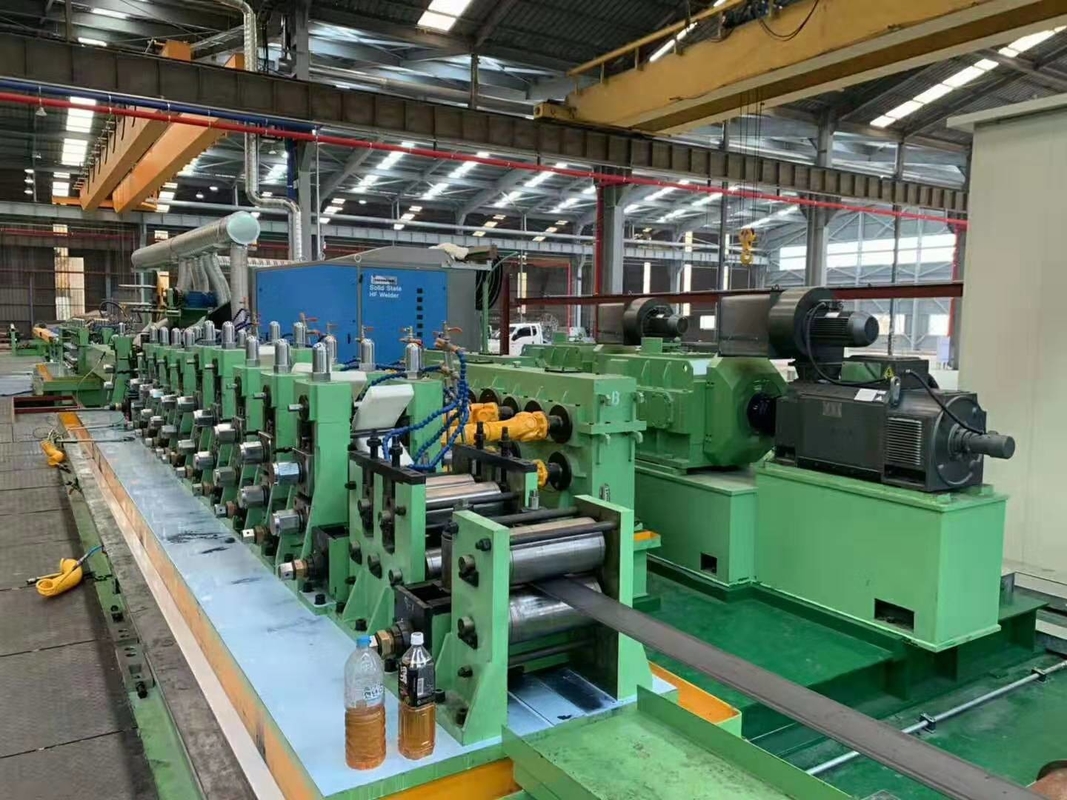

Touch Screen V-Shaped Steel Tube Roll Forming Machine LW130
  • Touch Screen V-Shaped Steel Tube Roll Forming Machine LW130
  • Touch Screen V-Shaped Steel Tube Roll Forming Machine LW130
  • Touch Screen V-Shaped Steel Tube Roll Forming Machine LW130

Touch Screen V-Shaped Steel Tube Roll Forming Machine LW130

Product Details:
Place of Origin: Shijaizhuang
Brand Name: hebeitengtian
Certification: CE
Model Number: LW130
Detail Information
Place of Origin:
Shijaizhuang
Brand Name:
hebeitengtian
Certification:
CE
Model Number:
LW130
Product Name:
Touch Screen Man-Machine Interface V - Shaped Steel Cold Roll Forming Machine LW130
Raw Material Conditions:
Hot Rolled Or Cold Rolled Steel Strip (meet JT/T457-2007，GB345B)
Product Speed:
Max 40m / Min
Cut Off Error:
± 2mm
Color:
Blue
Floor Area:
50m × 5m
Power:
200KW
Shape:
V Shape
Highlight:

High Light

Highlight:

Touch Screen steel tube making machine

,

V Shaped steel tube making machine

,

Touch Screen steel pipe making machine

Trading Information
Minimum Order Quantity:
1
Price:
$100000 to $1 million
Packaging Details:
container
Delivery Time:
1month
Payment Terms:
L/C,T/T
Supply Ability:
1
Product Description
Touch Screen Steel Tube Making Machine Cold Roll Forming V Shaped
Product Specifications
Attribute Value
Product Name Touch Screen Man-Machine Interface V-Shaped Steel cold roll forming machine LW130
Raw Material Conditions Hot rolled or cold rolled steel strip (meet JT/T457-2007，GB345B)
Product Speed Max 40m / Min
Cut off error ± 2mm
Color Blue
Floor Area 50m × 5m
Power 200KW
Shape V Shape
Product Overview

The LW130 V steel unit features a rational design with touch screen man-machine interface and PLC digital program control. It offers high automation, precise code length, excellent product quality, stable mechanical properties, and high yield. This machine saves labor time and costs while maintaining high precision in overall linkage scale.

Production Process
  1. Uncoiler
  2. Straight head
  3. Pinch leveling machine
  4. Shear welder
  5. Horizontal accumulator
  6. 8 sets cold bending machine
  7. Cutter saw
  8. Roller conveyer finished product
  9. Auto stacking machine
  10. Electric control cabinet
Feeding Device

The feeding device consists of frame, electric motor, brake unit, circling direction transfer power axle of the reduce velocity, press & carry roll, pressure air system of guide roll, and inspected velocity unit. It supplies strip steel to the accumulator while transferring carry velocity information to the electric control system. When material feeding needs to stop, the unit will halt the electric motor and press/carry material roll via the brake, with adjustable velocity control.

Hydraulic Cutter Specifications
Parameter Value
Cut thickness δ=2.0-6.0mm
Cut width 130mm
Cut height 65mm
Cut length 3m
Cut off error ±2mm
Hydraulic station AC11KW
Basic Parameters
Parameter Value
Raw Material Conditions Hot rolled or cold rolled steel strip (meet JT/T457-2007,GB345B)
Single cone uncoiler Hydraulic pressure increases and single cone
Thickness of strip 2.0 - 6.0mm
Strip Width 50 - 130mm
Max Coil Weight 3000Kg
Working speed 0-40m / min
Main motor 32kw 1 sets Siemens
We can customize the machine according to specific customer requirements. Please feel free to contact us with any questions - we're happy to assist.
Touch Screen V-Shaped Steel Tube Roll Forming Machine LW130 0 Touch Screen V-Shaped Steel Tube Roll Forming Machine LW130 1 Touch Screen V-Shaped Steel Tube Roll Forming Machine LW130 2 Touch Screen V-Shaped Steel Tube Roll Forming Machine LW130 3
