HRC Material Welded Pipe Mill for Carbon Steel Max 14mm Thickness

Name: HRC Material Welded Pipe Mill for Carbon Steel Max 14mm Thickness
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: LX1550-14-2020mm
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	CHINA
Brand Name:	Teng Tian
Certification:	CE / ISO9001
Model Number:	LX1550-14-2020mm

Detail Information

Place of Origin:

CHINA

Brand Name:

Teng Tian

Certification:

CE / ISO9001

Model Number:

LX1550-14-2020mm

Product Name:

HRC Material Welded Pipe Mill Carbon Steel Pipe Mill Max.14mm Thickness

Application:

Construction; Oil And Gas; Water Supply

After-sales Servive:

Engineers Available To Service Machinery Overseas

Coil Width:

1550 Mm

Thickness:

Max.14mm

Material:

HRC

Colour:

Up To The Customers

Standard:

API 5L

Max. Steel Grade:

Up To N80

Keywords:

Welded Pipe Mill Carbon Steel

Highlight:

High Light

Highlight:

seamless pipe mill

welded pipe production line

Trading Information

Minimum Order Quantity:

1 SET

Price:

$100000 to $1 million

Packaging Details:

Exporting Standard packing, and fixed in container

Delivery Time:

6 MONTHS

Payment Terms:

T/T,L/C

Supply Ability:

20 SETS / YEAR

Product Description

HRC Material Welded Pipe Mill Carbon Steel Pipe Mill Max.14mm Thickness

Product Specifications

Attribute	Value
Application	Construction; Oil and Gas; Water Supply
After-sales Service	Engineers available to service machinery overseas
Coil Width	1550 mm
Thickness	Max.14mm
Material	HRC
Standard	API 5L
Max. Steel Grade	Up to N80

Product Description

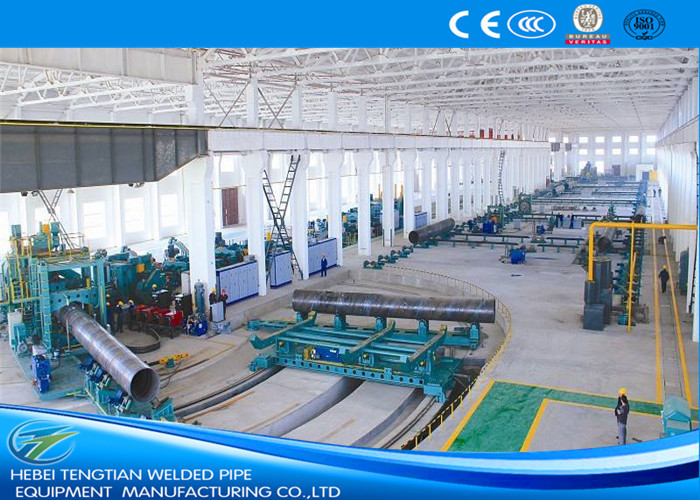

This straight seam welded pipe mill is designed for manufacturing galvanized fire fighting pipes and other industrial piping solutions.

Key Features

Manufactures spiral welded pipes from low carbon steel/low alloy steel strips
Produces large diameter pipes using narrow steel strips
Versatile applications including liquid and gas delivery systems
Ideal for structural applications in bridges, docks, roads, and construction

Applications

Liquid delivery: Water supply & drainage systems
Gas delivery: Coal gas, steam and LPG transportation
Structural use: Piling pipes and structural pipes for bridges, docks, roads, and construction

Production Process

Feeding → Uncoiling → Leveling → Shearing & Butt Welding → Rotary Shear → Edge Milling → Main Drive → Pre-bend & Guide Board → Forming → Inside Welding → Outside Welding → Cutting Off → Pull Out → End-facing & Beveling → Hydrotesting → Collection

Technical Specifications

Series	Min Pipe O.D. (mm)	Max Pipe O.D. (mm)	Min Thickness (mm)	Max Thickness (mm)	Coil Width (mm)	Max Production Capacity (ton/year)	Area (m²)
LX600	219-508	325-820	2-4	4-10	400-600	8000-12000	20×96
LX800	219-508	406-1220	2-4	4-12	400-800	9000-17000	20×96
LX1050	219-508	630-1620	2-4	4-14	450-1050	16000-23000	24×108
LX1250	406-610	820-1620	3-6	8-18	500-1250	26000-35000	24×108
LX1550	406-610	1420-3200+	3-6	12-25.4+	500-1550	36000-76000	26×125
