Product Details:
Payment & Shipping Terms:
|

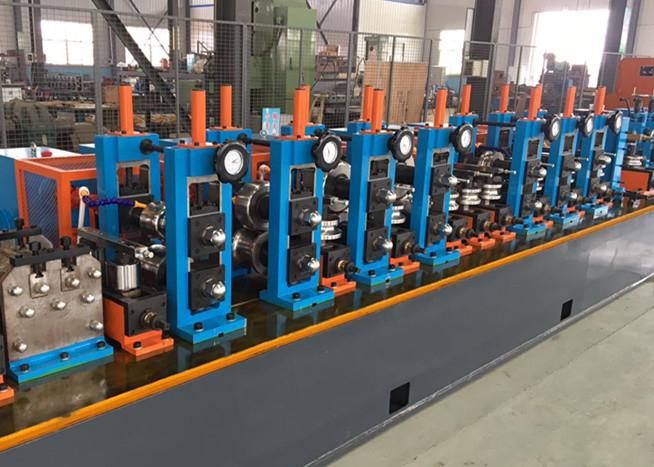

| Product Name: | Precision Tube Mill Different Size 3.0mm Pipe Diameter ISO Certification | Product Speed: | Max 120m/min |
|---|---|---|---|
| Pipe Diameter: | 19-76mm | Pipe Thickness: | 1.5-3.0mm |
| Type Of Welding: | High Frequency Welding | Custom: | Yes |
| Keyword: | Welding Pipe Unit ERW | Length: | 3-6m |
| Pipe Shape: | Round,square,rectangular | Forming Process: | Roll Forming |
| Tolerance: | ±0.05mm | Tube Thickness: | 1.0-4.0mm |
| Inspection: | 100% Eddy Current Test | Coil Weight: | ≤5T |
| Adjustment Type: | By Turbine Worm | Production Speed: | 80-120m/min |
| Pipe: | Round Square Rectangle | Key Word: | Precision Tube Mill |
| Size: | OD: 19mm-60mm, WT: 0.8mm-3.0mm | Cutting System: | Flying Saw Cutting |
| Highlight: | ss tube mill machine,industrial tube mills |
||
The High precision tube mill has some advantage as follow:
between level roller jumps 0.01,between frame and slide clearance ≤0.02mm, frame vertical degree ≤0.05, each frame parallel degree ≤0.1mm
steel pipe diameter and roundness error≤0.08mm
Product Process:
material(steel coil)→uncoiler→shear and welder→horizontal(or cage) accumulator→forming mill→
HF soild welder→sizing mill→rounghly straightening(turkey head)→cut off machine→run out table
The Basic Parameters:
| stands of forming mill | 7 |
| stands of sizing mill | 5 |
| shaft material | 40Cr |
| round pipe diameter | 19-76mm |
| Round pipe thickness | 1.5-3.0mm |
| square pipe size | 15×15-60×60mm |
| square pipe thickness | 1.5-2.0mm |
we can design the machine accoeding to the customer detail require.
ERW Tube Mill Other Model
| Model | Diameter Range | Pipe Thickness | Line Speed(m/min) |
| HG20 | 8-25.4MM | 0.3-1.2MM | 120 |
| HG32 | 10-32MM | 1.4-1.5MM | 120 |
| HG50 | 16-76MM | 0.7-2.5MM | 30-120 |
| HG76 | 25-76MM | 1-4MM | 30-100 |
| HG89 | 32-89MM | 1-4.5MM | 30-80 |
| HG114 | 45-114MM | 1.5-5.0MM | 30-60 |
| HG165 | 60-165MM | 3-7MM | 30-50 |
| HG219 | 114-219MM | 4-8MM | 20-40 |
| HG273 | 114-273MM | 4-10MM | 15-30 |
| HG325 | 165-325MM | 4-10MM | 10-30 |
| HG426 | 165-426MM | 4-12.7MM | 8-25 |
| HG508 | 219-508MM | 4-16MM | 8-20 |
This model just for you reference,the product range and thickness is adjustable,we have ourselves engineer team,can design the machine according to the customer special require.
