Product Details:
Payment & Shipping Terms:
|
| Material: | Carbon Steel | Product Speed: | Max 100m/min |
|---|---|---|---|
| Pipe Diameter: | 10-50mm | Pipe Thickness: | 1.0-2.5mm |
| Type Of Welding: | ERW Welder | Special Require: | Can Design According To The Customer |
| Highlight: | 50mm Diameter steel tube making machine,Adjustable stainless steel pipe manufacturing machine,Large stainless steel pipe manufacturing machine |
||
The Carbon Steel Tube Application:
the steel tube can use in many different part,such as escalator,elevator,door&rail,stair armrest
2. electronic boiler &solar energy equipment 3.airport,solar energy equipment 4. chemical process vessels,piping and heat exchangers.

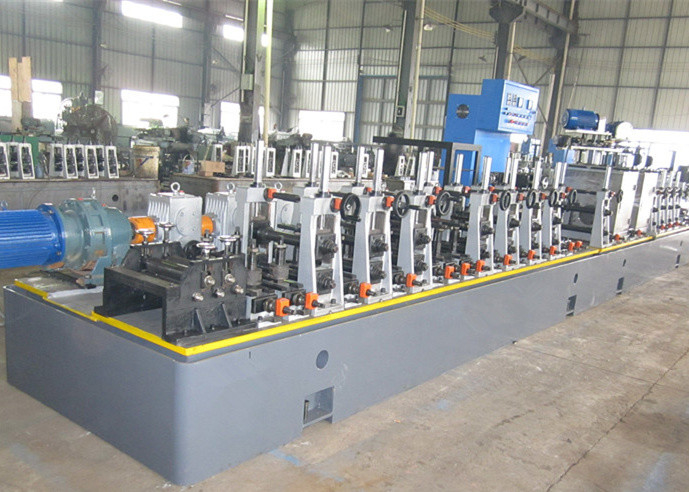

Product Process:
material(carbon steel coil)→uncoiler→shear and welder→horizontal(or cage) accumulator→forming mill→TIG welder→sizing mill→rounghly straightening(turkey head)→cut off machine→run out table
The Basic Parameters:
| stands of forming mill | 7 |
| stands of sizing mill | 5 |
| shaft material | 40CrMo |
| round pipe diameter | 10-50mm |
| Round pipe thickness |
1.0-2.5mm |
| square pipe size | 8×8-40×40mm |
| square pipe thickness | 1.5-2.0mm |
ERW Tube Mill Other Model
| No. | Model | Pipe Size | Thickness | Speed(m/min) | Capacity(KW) | HF(KW) | Area(LxW in Metres) |
| 1 | HG20 | ø8 - ø20 mm | 0.3 - 1.5 mm | 30 - 150 | 210 | 100 | 40*12 |
| 2 | HG32 | ø10 - ø32 mm | 0.4 - 2.0 mm | 30 - 150 | 300 | 150 | 40*12 |
| 3 | HG50 | ø16 - ø50 mm | 0.7 -2.5 mm | 30 - 150 | 410 | 200 | 60*12 |
| 4 | HG60 | ø22 - ø60 mm | 0.9 - 3.0 mm | 30 - 150 | 410 | 200 | 60*12 |
| 5 | HG76 | Ø25 - ø76 mm | 1 - 4 mm | 30 - 120 | 580 | 300 | 80*16 |
| 6 | HG89 | Ø32 - ø89 mm | 1 - 4.5 mm | 30 - 100 | 660 | 300 | 100*16 |
| 7 | HG114 | Ø45 - ø114 mm | 1.5 -5 mm | 30 - 80 | 920 | 400 | 100*16 |
| 8 | HG140 | Ø50 - ø140 mm | 1.5 - 5.5 mm | 30 - 80 | 920 | 400 | 100*16 |
| 9 | HG165 | Ø60 - ø165 mm | 2 - 6 mm | 30 - 60 | 1100 | 500 | 100*16 |
| 10 | HG219 | Ø114 - ø219mm | 3 - 8 mm | 20 - 45 | 1400 | 600 | 150*16 |
| 11 | HG273 | Ø114 - ø273mm | 4 - 12 mm | 15 - 30 | 2100 | 800 | 160*18 |
| 12 | HG325 | Ø165 - ø325 mm | 4 - 14 mm | 10 - 30 | 2500 | 1000 | 200*24 |
| 13 | HG426 | Ø165 - ø426 mm | 4 - 16 mm | 8 - 25 | 2900 | 1200 | 250*24 |
| 14 | HG508 | Ø219 - ø508 mm | 5 - 18 mm | 5 - 18 | 3400 | 1600 | 300*24 |
| 15 | HG610 | Ø355 - ø610 mm | 5 - 18 mm | 5 - 18 | 3700 | 1600 | 300*24 |
| 16 | HG760 | Ø426 - ø760 mm | 5 - 20 mm | 5 - 20 | 4300 | 1800 | 300*24 |
This model just for you reference,the product range and thickness is adjustable,we have ourselves engineer team,can design the machine according to the customer special require.
