Carbon Steel ERW Pipe Making Machine 10-50mm Diameter

Name: Carbon Steel ERW Pipe Making Machine 10-50mm Diameter
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG50
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE ISO
Model Number:	HG50

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE ISO

Model Number:

HG50

Material:

Carbon Steel

Product Speed:

Max 40m/min

Pipe Diameter:

10-50mm

Pipe Thickness:

1.0-2.5mm

Type Of Welding:

ERW Welder

Special Require:

Can Design According To The Customer

Highlight:

High Light

Highlight:

Decorative Industrial steel pipe making machine

ERW Welder steel pipe making machine

carbon steel erw pipe manufacturing machine

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

packed in seaworthy material

Delivery Time:

two month

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

200 set per year

Product Description

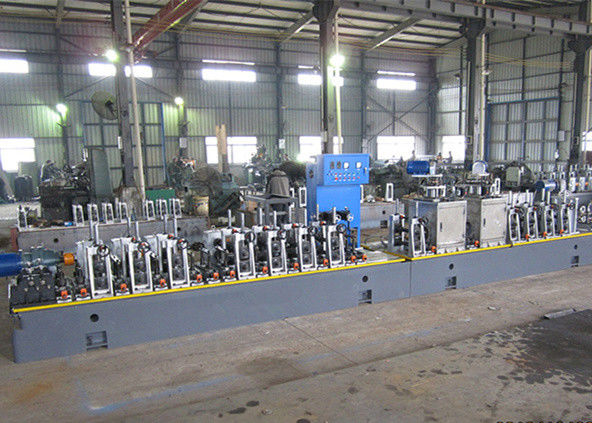

Carbon Decorative Industrial Steel Pipe Making Machine With ERW Welder

Product Specifications

Attribute	Value
Material	Carbon steel
Product Speed	Max 40m/min
Pipe Diameter	10-50mm
Pipe Thickness	1.0-2.5mm
Type of Welding	ERW welder
Special Requirements	Can design according to customer specifications

Carbon Steel Tube Applications

Escalators, elevators, door rails, stair armrests
Electronic boilers & solar energy equipment
Airport infrastructure and chemical processing equipment
Process vessels, piping systems, and heat exchangers

Production Process

Material (carbon steel coil) → Uncoiler → Shear and welder → Horizontal (or cage) accumulator → Forming mill → TIG welder → Sizing mill → Rough straightening (turkey head) → Cut off machine → Run out table

Technical Parameters

Stands of forming mill	7
Stands of sizing mill	5
Shaft material	40CrMo
Round pipe diameter	10-50mm
Round pipe thickness	1.0-2.5mm
Square pipe size	8×8-40×40mm
Square pipe thickness	1.5-2.0mm

ERW Tube Mill Models

Model	Diameter Range	Pipe Thickness	Machine Size (L*W)
SS30	6-25MM	0.2-0.8MM	19.5*1.0M
SS40	6-32MM	0.2-1.0MM	20*1.0M
SS50	9-51MM	0.2-1.5MM	21.5*1.1M
SS60	12-64MM	0.3-2.0MM	21.5*1.1M
SS70	25-76MM	0.3-2.0MM	24*1.2M
SS80	38-114MM	0.4-2.5MM	26*1.4M
HG165	76-168MM	1.0-3.5MM	32*2.3M
HG219	114-219MM	1.0-4.0MM	33*2.4M

Note: These models are for reference only. Product range and thickness are adjustable. Our engineering team can design machines according to specific customer requirements.
