Home > products >

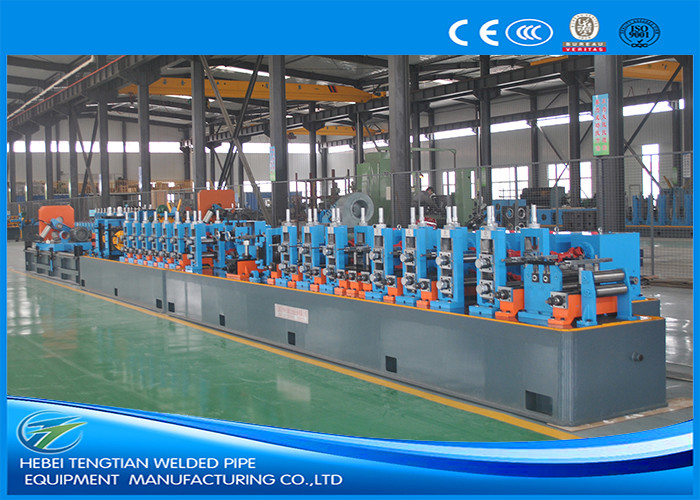

Custom Carbon Steel Pipe Making Machine for L Shape Pipe 10-60mm

Name: Custom Carbon Steel Pipe Making Machine for L Shape Pipe 10-60mm
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG60
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE ISO
Model Number:	HG60

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE ISO

Model Number:

HG60

Mill Name:

Custom Size Pipe Making Machine , Carbon Steel Pipe Production Line For L Shape Pipe

Product Speed:

Max 120m/min

Pipe Diameter:

10-60mm

Pipe Thickness:

1.0-3.0mm

Type Of Welding:

High Frequency Welding

Special Require:

Can Design According To The Customer

Highlight:

High Light

Highlight:

erw pipe mill line

steel tube production line

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

packed in seaworthy material

Delivery Time:

two month

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

200 set per year

Product Description

Custom Size Pipe Making Machine

High-performance carbon steel pipe production line designed for manufacturing L-shape pipes with precision and efficiency. Features high-frequency welding technology for superior quality output.

Key Specifications

Attribute	Value
Production Speed	Max 120m/min
Pipe Diameter Range	10-60mm
Pipe Thickness Range	1.0-3.0mm
Welding Type	High Frequency Welding
Customization	Can be designed according to customer requirements

Production Capabilities

This steel pipe production line with high-frequency solid welder can produce round, square, and rectangular pipes at high speeds. Specializes in manufacturing L, T, and Z shape pipes while reducing roller costs and ensuring finished pipe quality.

Production Process

Material (steel coil)
Uncoiler
Shear and welder
Horizontal (or cage) accumulator
Forming mill
HF solid welder
Sizing mill
Rough straightening (turkey head)
Cut off machine
Run out table

Technical Parameters

Parameter	Value
Stands of forming mill	7
Stands of sizing mill	5
Shaft material	40Cr
Round pipe diameter	10-60mm
Round pipe thickness	1.0-3.0mm
Square pipe size	8×8-47×47mm
Square pipe thickness	1.0-2.5mm

Available ERW Tube Mill Models

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
HG20	8-25.4mm	0.3-1.2mm	120
HG32	10-32mm	1.4-1.5mm	120
HG50	16-76mm	0.7-2.5mm	30-120
HG76	25-76mm	1-4mm	30-100
HG89	32-89mm	1-4.5mm	30-80
HG114	45-114mm	1.5-5.0mm	30-60
HG165	60-165mm	3-7mm	30-50
HG219	114-219mm	4-8mm	20-40
HG273	114-273mm	4-10mm	15-30
HG325	165-325mm	4-10mm	10-30
HG426	165-426mm	4-12.7mm	8-25
HG508	219-508mm	4-16mm	8-20

Note: The above models are for reference only. Product range and thickness are adjustable. Our engineering team can design machines according to your specific requirements.
